2011 Hyundai Tucson GL, GLS, Limited, and Limited Service Manual

This two-file set of Hyundai factory service information covers the 2011 Tucson (LM) with Theta-II 2.0L and 2.4L DOHC gasoline engines. The depth of the repair procedures—and their reliance on Hyundai GDS, electrical test equipment, pressure gauges, lifting equipment, and specified service tools—makes the set best suited to professional technicians and experienced owners already comfortable with factory workshop information.

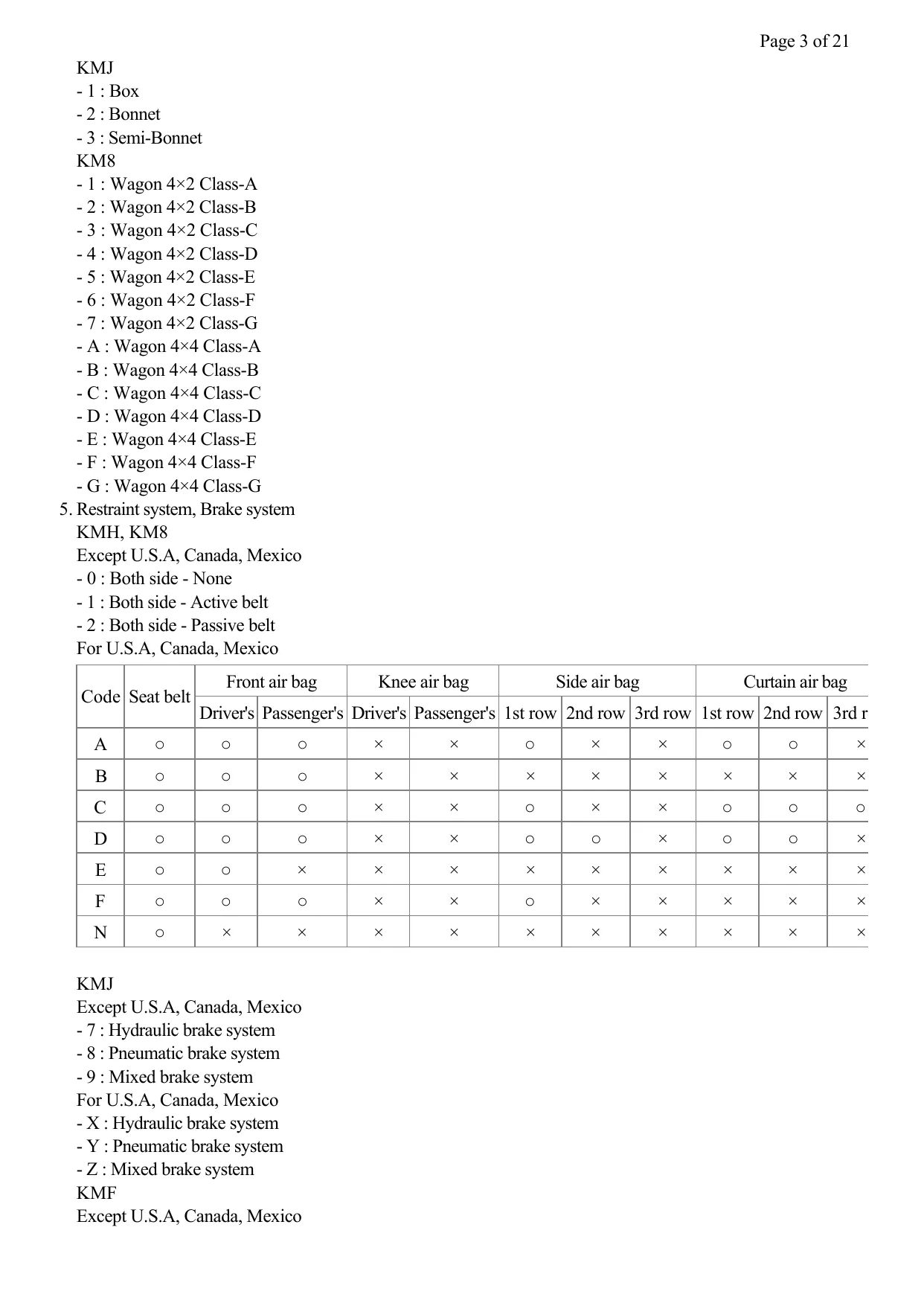

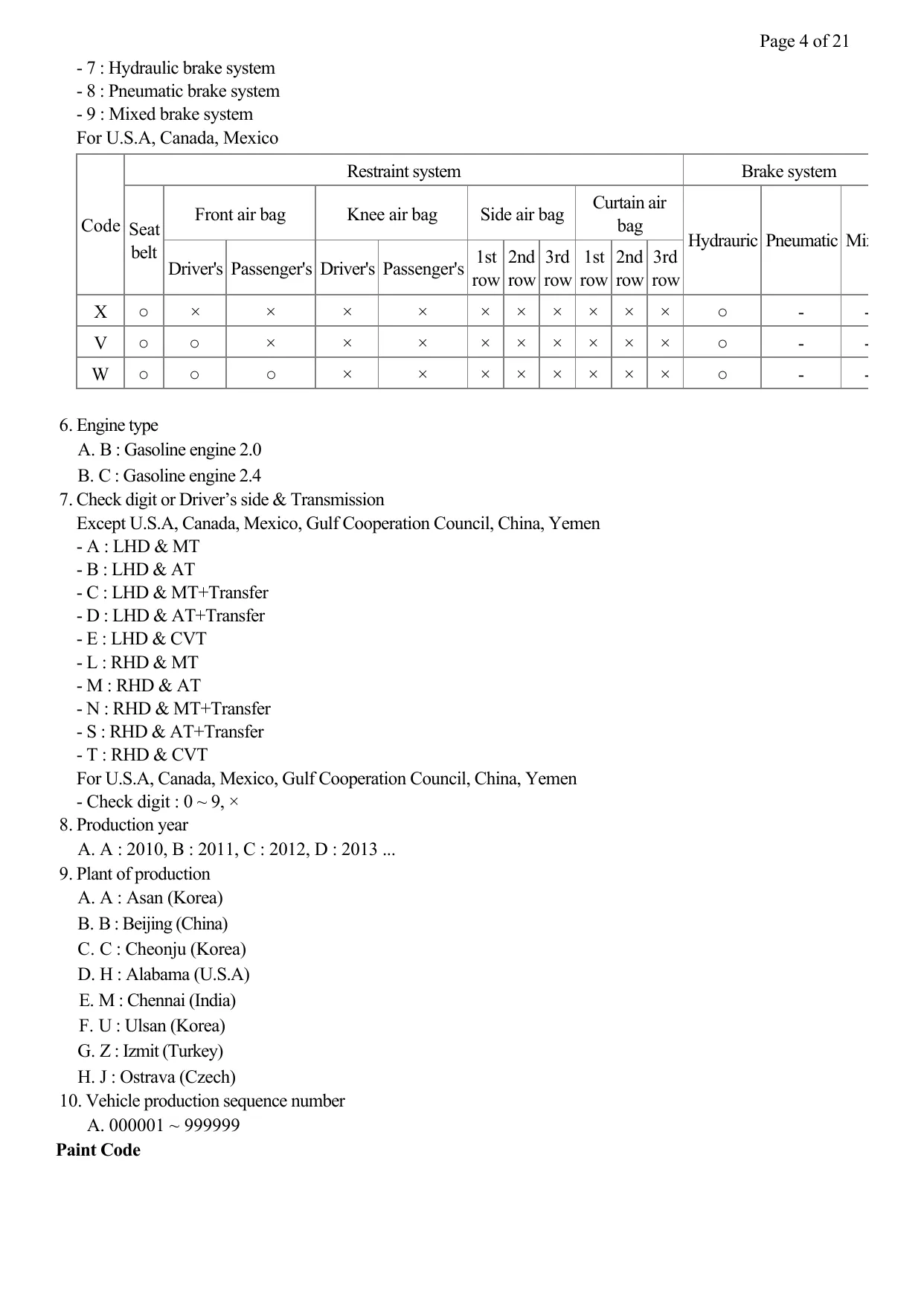

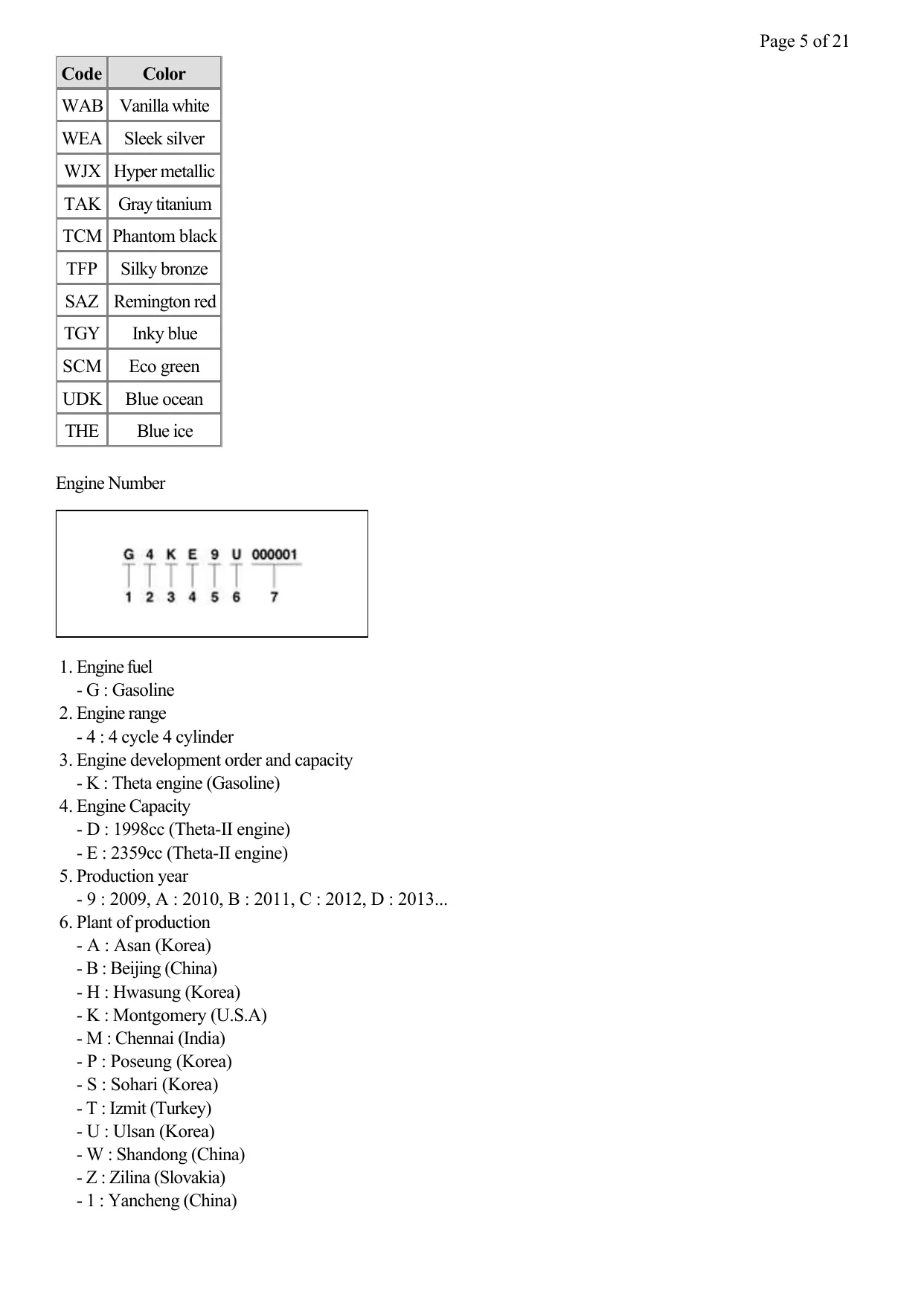

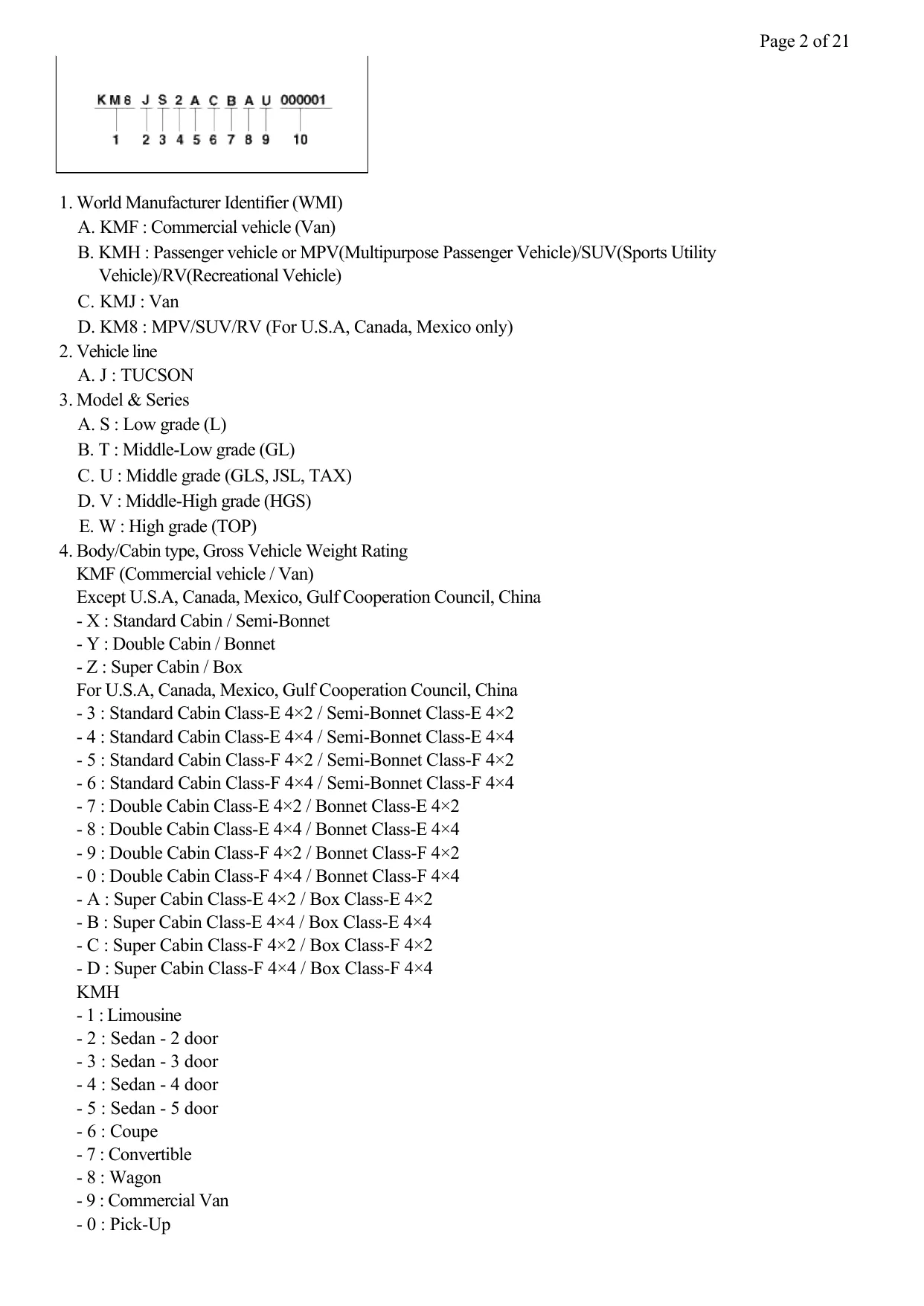

• 2,577 PDF pages total — a 1,290-page 2.0L file and a 1,287-page 2.4L file. Both contain vehicle-wide repair information; the previous 102-page figure applies only to the fuel-system chapter.
• Powertrain coverage spans 2WD and 4WD, the A6MF1 six-speed automatic used with either engine, the 2.0L M5GF1 five-speed manual, and the 2.4L M6GF2 six-speed manual. ULEV and SULEV engine-control details are identified where they differ.
• Engine repair sections cover engine/transaxle removal, timing-chain service, cylinder-head removal and overhaul, cylinder-block disassembly and inspection, cooling-system refill and air bleeding, lubrication-system service, and intake/exhaust work.
• Transmission and driveline procedures address A6MF1 removal, valve-body and solenoid service, speed and temperature sensors, TCM learning, manual-clutch inspection and bleeding, transfer assembly, propeller shafts, drive axles, hubs, rear differential, and both 4WD coupling designs.
• Chassis repair covers disc and parking brakes, ABS/ESC/DBC diagnosis, electric power steering, suspension, alignment, and TPMS. Body and equipment chapters handle body dimensions, panels and glass, smart key/push-button start, panoramic roof, power windows, back-view camera, A/C compressor service, and manual or dual climate controls.
• Factory scan-tool operations include ECM VIN writing and, where equipped, key teaching; 4WD clutch-learning reset; TCM learning; HECU and SRSCM variant coding; PODS re-zero; EPS absolute-steering-position calibration; and TPMS vehicle/VIN writing.
• System-specific schematics and reference data include ECM input/output and terminal mapping, A6MF1 TCM connector functions, 4WD ECU harness terminals, ESC circuit diagrams, SRSCM circuits, and the smart-key unit schematic. Component-location views are supported by torque tables, capacities, pressure tests, inspection limits, alignment data, and electrical specifications.

Engine Management and Fault Isolation

Engine-management coverage explains OBD-II driving, warm-up, and trip cycles; MIL logic; DTC structure; freeze-frame data; and readiness monitoring for catalysts, misfire, fuel control, cooling, oxygen sensors, EVAP, and other components. Sensor and actuator chapters pair circuit diagrams and connector locations with inspection methods and reference values for MAP, intake-air and coolant temperature, crank/cam position, throttle and accelerator position, oxygen sensing, fuel-tank pressure, injectors, purge control, CVVT, variable intake, and charge-motion systems.

Symptom charts cover starting, idle, stalling, surge, fuel economy, knock, and refueling complaints. Intermittent-fault checks address connectors, vibration, heat, and moisture.

Mechanical Repair Depth and Special Tools

The engine mechanical sections carry repair work through disassembly, inspection, measurement, and reassembly rather than stopping at component replacement. They include timing and sealing references, bearing and valve inspection data, bolt-tightening sequences, and final checks. Named tools include Fuel Pressure Gauge 09353-24100, Fuel Pump Locking Ring Remover 09310-2S200, Timing Chain Tensioner Ratchet Holder 09240-2G000, and engine support fixtures 09200-2S000 / 09200-38001.

Transmission scope is more limited: the A6MF1 section covers removal/installation, fluid-level service, valve-body and control-component repair, and relearning. The manual-transaxle sections cover external controls, fluid service, and unit removal/installation. Neither file supplies a complete internal transmission overhaul procedure.

Build Breaks and Service Cautions

For 4WD vehicles, the manual separates the Intelligent Torque Controlled Coupling used through November 30, 2010 from the Direct Electro Hydraulic Actuator Coupling used from December 1, 2010. The later unit must remain level after its dipstick is removed to avoid losing its lifetime-fill fluid; installation guidance also calls out oil-seal protection and the required GDS clutch-learning reset.

During steering-column or subframe work, the steering wheel must stay centered and locked or the clock spring’s inner cable can be damaged. SRS circuits must never be resistance-tested at an airbag module. Fuel-pressure, brake, refrigerant, and lifting work requires appropriate shop equipment and prior service experience.
