John Deere Models Covered & Key Technical Specifications

Models: 850, 900HC, 950, 1050

Sub-models / Variants: 2WD, MFWD (Mechanical Front-Wheel Drive)

Model Years: 1977–1986 (1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986)

Serial Numbers: 850 (-009000), 850 (009001-), 950 (-012000), 950 (012001-) for early and later systems. Single-stage clutch: 850 (-16000), 950 (-20000). Two-stage clutch: 850 (16001-), 950 (20001-), and 1050.

Power Steering / Hydraulic Test Serial Numbers: 850 (01000-09000), 850 (09001-), 950 (01000-12000), 950 (12001-)

PTO Overrunning Clutch Serial Numbers: 850 (-7760), 850 (7761-16000), 950 (-10859), 950 (10860-20000)

Voltage Regulator Diode Serial Numbers: 850 (-4738), 850 (4739-), 950 (-7142), 950 (7143-)


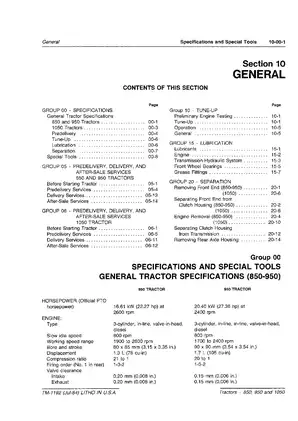

  • Engine Configuration: 3-cylinder, in-line, valve-in-head, diesel (850, 950, 1050; turbocharged on the 1050)

  • 850 PTO Horsepower: 16.61 kW (22.27 hp) at 2600 rpm

  • 950 PTO Horsepower: 20.40 kW (27.36 hp) at 2400 rpm

  • 1050 PTO Horsepower: 24.6 kW (33 hp) at 2400 rpm

  • Transmission: 2-speed range selector, 4-speed gear selector (8 forward, 2 reverse) on the 850, 950, and 1050

  • Hydraulic System: Open center, constant flow. Operating pressure: 13 790 kPa (2000 psi) on the 850 and 950, 13 800 kPa (2000 psi) on the 1050.

  • Electrical System: 12-volt, negative ground, 25-amp alternator (850, 950, 1050)

John Deere Manual Features & Selected Content Preview

This John Deere Technical Manual, P/N TM1192, dated August 1, 1986, covers the 1977–1986 John Deere 850, 900HC, 950, and 1050 tractors, with model-specific procedures for 2WD and mechanical front-wheel drive (MFWD) configurations.

PDF Bookmarks and Wiring Diagram Readability

Search and navigation: PDF text search is limited to a few words on the cover. The 17 embedded bookmarks take you to the cover, contents, and 15 main sections. Rotate the sideways wiring sheets and zoom in to read small component labels and wire colors. Some fine lettering remains soft at higher magnification.

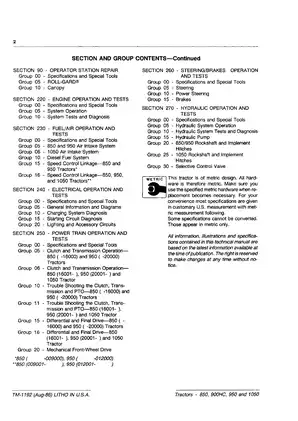

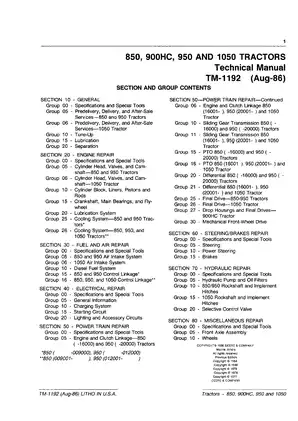

The ZIP download contains one printable English PDF with 818 pages, including the cover, one blank page immediately after it, and two contents pages.


Diesel, Drivetrain, and Hydraulic Service

These are selected topics from the manual, which also covers predelivery checks and wheel service.

  • Engine repair: Cylinder-head and valve-train overhaul, piston and liner inspection, crankshaft service, engine tune-ups, and cooling-system testing.

  • Fuel and air systems: Injection-pump removal and timing, nozzle testing, Thermostart diagnosis, air-intake service, and turbocharger repair for the 1050.

  • Power train repair: Tractor separation, clutch and linkage adjustment, sliding gear transmission overhaul, power take-off (PTO) service, and differential setup.

  • Axles and brakes: MFWD axle overhaul, 900HC drop-housing and final-drive repair, front axle service, and internal expanding brake inspection and adjustment.

  • Hydraulics and steering: Hydraulic flow and pressure testing, rockshaft repair, selective control valve service, power-steering diagnosis, and flow-divider checks.

  • Electrical diagnosis: Starter and alternator overhaul, charging and starting circuit tests, lighting checks, and full-tractor wiring sheets for specified 850 and 950 serial ranges.

This manual suits experienced mechanics familiar with internal drivetrain work and equipped to perform hydraulic flow tests and electrical measurements.

Engine Inspection and Cooling

Use the bearing clearances and piston and liner wear limits to assess parts during teardown. The engine sections give compression ratios, compression and oil-pressure tests, and component-specific torques for reassembly. The later 950 cylinder head has two additional cap screws and a separate tightening sequence.

Cooling-system coverage includes water-pump repair and thermostat testing. Lubrication tables give service intervals for engine and transmission-hydraulic oil, plus fluid capacities for the engine, transmission-hydraulic system, and MFWD axle housings.

Injection Timing and 1050 Turbocharger

The Yanmar PFR3K injection pump sectional view shows the plunger mechanism used to establish beginning of injection with the JDF-14 timing fixture. Steam cleaning or applying cold water to a warm or running injection pump can seize its internal parts.

YDN nozzle procedures cover opening pressure, leakage, and spray pattern. The manual also covers fuel-system bleeding. For the turbocharged 1050, the IHI RHB6 assembly illustration accompanies disassembly, bearing inspection, clearance checks, and reassembly.

Clutch Variants, Differential Setup, and Axles

The power train sections distinguish the early single-stage clutch from the later two-stage arrangement on the 850 and 950 and cover the corresponding 1050 clutch, transmission, and PTO. Differential overhaul includes bearing adjustment, pinion cone-point setting, and gear backlash checks. Pressing cold bearings onto the differential housing can distort it.

MFWD repair distinguishes the 850 front axle from the 950 and 1050 assemblies. Operator station coverage includes Roll-Gard mounting hardware and canopy service.

Hydraulic Fault Isolation and Brake Service

The step-by-step hydraulic diagnosis charts separate early and later 850 and 950 systems from the 1050. Their flow and pressure checks help isolate pump-output, steering, or rockshaft faults before selecting a component for teardown.

Rockshaft coverage includes implement-hitch controls, lowering-valve adjustment with the JDG-50 collar, and 1050 draft sensing. The manual also covers couplers, flow divider blocks, and field-installed power steering. Worn or damaged hydraulic pumps are replaced as units. Mechanical dry-shoe brake procedures cover removal, inspection, reassembly, and adjustment.

Review the manual’s precautions for heavy chassis components and pressurized hydraulics before teardown.

Wiring Coverage and Circuit Tests

Charging and fuel gauge schematics support circuit diagnosis alongside starter interlock and lighting tests. Full-tractor wiring and component-location sheets cover the 850 through serial 16000 and the 950 through serial 20000, with separate early and later sheets. The two full-tractor wiring and component-location figures referenced for the 1050 are missing from this PDF.

Sample Valve Clearance and Fuel Sender Specs

For cold intake and exhaust valve checks, the manual specifies 0.008 in. (0.20 mm) on the 850 and 0.006 in. (0.15 mm) on the 950 and 1050.

For fuel gauge diagnosis on the 850 from serial 16001, the 950 from serial 20001, and the 1050, sender resistance is listed at 110 ohms empty, 32 ohms half full, and 2 ohms full.
