John Deere 850, 950 & 1050 Shop Manual

This comprehensive shop manual covers the John Deere 850, 950, and 1050 tractors, detailing diagnostics, service procedures, and parts information. Reference: AR13342.

5.0starstarstarstarstar(1)
visibility Preview Available
John Deere John Deere 850, 950 & 1050 Shop Manual manual page preview - page 1 of 43

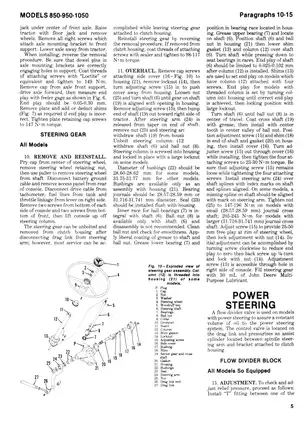

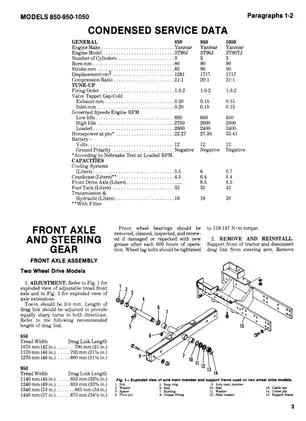

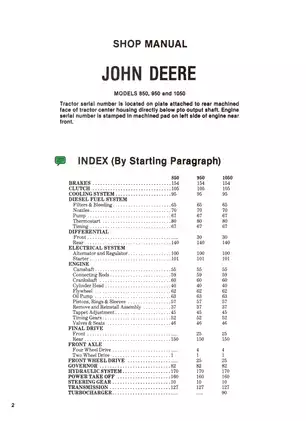

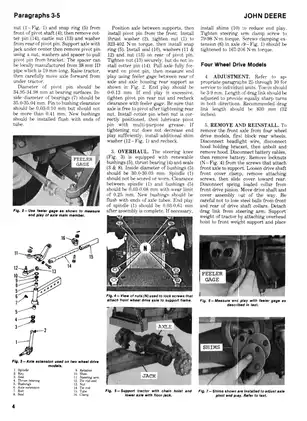

Sample pages from the John Deere 850, 950 & 1050 Shop Manual manual

John Deere John Deere 850, 950 & 1050 Shop Manual manual preview page 1 - thumbnail
John Deere John Deere 850, 950 & 1050 Shop Manual manual preview page 2 - thumbnail
John Deere John Deere 850, 950 & 1050 Shop Manual manual preview page 3 - thumbnail
info_outline Click thumbnails to preview different pages
$26.85 (incl. VAT) Instant Download / No Shipping Fees
11 copies sold
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal

John Deere Models Covered & Key Technical Specifications

Models: John Deere 850, John Deere 950, John Deere 1050
Sub-models / Variants: Two Wheel Drive, Four Wheel Drive
Build Years: 1980s
Serial Numbers: 850 (before 004739), 950 (before 007143)
Technical Data:

  • Engine: 3-cylinder Yanmar diesel (3T80J for 850, 3T90J for 950, 3T90TJ for 1050)
  • Governed High Idle: 2750 rpm (850), 2600 rpm (950 & 1050)
  • PTO Horsepower: 22.27 HP (850), 27.36 HP (950), 33.41 HP (1050)
  • Cooling System Capacity: 5.5 liters (850), 6 liters (950), 6.7 liters (1050)
  • Fuel Tank Capacity: 32 liters (850 & 950), 42 liters (1050)
  • Transmission/Hydraulic Capacity: 18 liters (850 & 950), 26 liters (1050)
  • Valve Clearance (Cold): 0.2 mm (850), 0.15 mm (950 & 1050)
  • Crankshaft Main Journal Diameter (New): 69.95–69.96 mm (850), 69.95–69.96 mm (Front/Center 950 & 1050), 89.95–89.96 mm (Rear 950 & 1050)
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
28569 / Dennis King
File Size:
66.55 MB
File Type:
PDF
Language:
English, multi-language
Pages:
43
Printable:
Yes
Category:
Tractor
Last updated / verified
May 10, 2025

John Deere Manual Features & Content Preview

Technical Scope for the 1980s John Deere 850, 950, and 1050 Shop Manual

  • Covers the 1980s John Deere 850, 950, and 1050 tractors, including two-wheel drive and four-wheel drive configurations
  • Third-party publication by BestManuals.net, provided in digital format
  • Contains 43 pages of technical specifications, exploded-view diagrams, and maintenance parameters
  • Downloads to your account within seconds of checkout
  • Re-download the file any time, no expiration
  • Indexed PDF search covers every chapter and appendix
  • Features specialized settings for the Yanmar 3-cylinder engine series and heavy-duty drivetrain components
  • OCR text layer lets you jump to a torque spec by keyword
  • This 43-page shop guide details the maintenance and assembly data specifically for the 850, 950, and 1050 series

Documented System Coverage

The 1980s John Deere 850, 950, and 1050 workshop manual documents procedures for engine maintenance, including camshaft and cylinder head data. It outlines technical requirements for diesel fuel system components, such as filter bleeding and injection pump timing specifications. Drivetrain documentation includes sections on the clutch, transmission, front axle assemblies, and final drives, along with power steering and hydraulic lift system adjustments.

Engine and Drivetrain Specifications

Engine identification data includes bore and stroke dimensions for the Yanmar 3T80J and 3T90TJ engines, as well as governed rpm settings. Torque values for internal engine components, cylinder head fasteners, and drivetrain housings are listed throughout the text to facilitate assembly operations. Hydraulic system test parameters for the 850, 950, and 1050 models specify operating pressures and pump output requirements. The manual includes what an OEM service publication covers regarding timing marks, gear backlash settings, and electrical circuit diagnostics.

Reference only — always consult a certified technician before performing service on this equipment.

An official technical shop manual covering the 1980s John Deere 850, 950, and 1050 tractors, documenting engine, chassis, electrical, and hydraulic specifications for the full series.

Document Reference: Third-party: BestManuals.net — original OEM identity not confirmed

Manual FAQ, Purchase & Download Details

What John Deere tractor models, series, and manufacturing eras are previewed in this shop manual coverage? keyboard_arrow_down

Shop manual covers the John Deere 850, 950, and 1050 tractor series produced during the 1980s. The document provides technical information and specifications applicable to these specific tractor models.

Is the manual descriptive regarding engine specification tables and recommended fluid capacities? keyboard_arrow_down

Yes, the manual contains condensed service data tables that include engine specifications, fluid capacities for the cooling system and crankcase, and governed engine speeds.

Are there reference charts and exploded view diagrams included for the steering and drivetrain systems? keyboard_arrow_down

Document includes detailed exploded view diagrams for the front axle, steering gear assembly, and power steering control valve. It also provides reference tables for drag link lengths based on tread width settings.

Which major systems have dedicated chapter coverage within this document? keyboard_arrow_down

Manual includes organized sections for the diesel fuel system, engine, transmission, front axle, steering gear, hydraulic system, and power take-off.

Can I find component breakdown illustrations and internal arrangement views in this PDF? keyboard_arrow_down

Document features numerous exploded views and cross-section illustrations for major components like the timing gear assembly, governor, and injection pump. These diagrams are intended to show the internal arrangement and relationship of parts. The provided figures serve as a visual reference for the components covered in the service sections.
