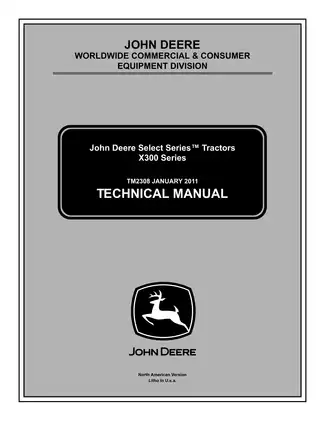

John Deere X300 Series Tractor Technical Manual, 2006–2011 (P/N TM2308)

John Deere Technical Manual TM2308, January 2011 North American version, covers X300, X304, X320, X324, X340, and X360 Select Series tractors.

Searchable PDF with Chapter Bookmarks

Text search and diagram detail: The PDF supports text search and includes embedded bookmarks for system sections and individual procedures. Small wire codes, connector numbers, and pin labels on the checked electrical schematics are clearly readable when enlarged.

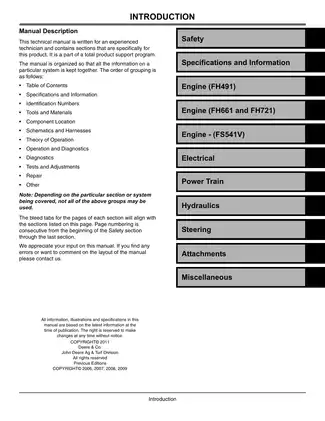

The ZIP download contains one printable, English-language PDF with 582 pages: four preliminary pages, including two blank pages; 568 numbered manual pages; and a 10-page index. All are included in the stated total.

Engine, Hydrostatic Drive, and Mower Repairs

The following selected coverage highlights the main diagnostic and repair areas. Other documented topics include gasket-sealant application and fuel-tank removal and installation.

• Engine repair: Separate Kawasaki FH491V, FH661V, FH721V, and FS541V chapters cover testing, adjustments, engine removal, internal inspection, disassembly, and assembly.

• Hydrostatic drivetrain: Tuff Torq K46BC/K46BR/K46CC, K58/K58B, and K58H diagnosis, adjustments, transaxle removal, seal replacement, and component disassembly.

• Electrical diagnosis: Main schematics, W1–W5 harness drawings, wire-color charts, circuit troubleshooting, component tests, ignition-coil replacement, and stator replacement.

• Steering and hydraulics: Conventional 2WS, X304/X324 4WS, and X360 power steering and hydraulic lift, including alignment, tracking, leakage, and oil-flow/pressure tests.

• Mower deck service: 38C, 42C, 42M, 48C, and 54C installation, leveling, single- and two-belt drive service, blade work, and spindle repair.

Written for an experienced technician, this technical manual assumes familiarity with mechanical and electrical service work and access to the specified test equipment.

Workshop-Level Engine Repair

Engine diagnosis covers compression and cylinder leak-down testing, crankcase vacuum, oil pressure, fuel-pump output, spark, and starter performance. Carburetor air/fuel diagnosis and cleaning guidance accompany throttle, choke, governor, and valve-clearance adjustments.

Step-by-step repair instructions address cylinder heads, valve-seat reconditioning and lapping, pistons and connecting rods, camshafts and tappets, crankshafts and bearings, cylinder-bore deglazing or resizing, oil pumps, and governors. The FH661V/FH721V chapter also includes oil-cooler service.

The Engine Oil Flow Chart explains lubrication-system operation. Engine-specific torque tables, capacities, test specifications, and wear limits keep the reference data tied to the engine being serviced.

Tool references include the JDM59 compression gauge, JT03503 vacuum gauge, and JDG356 fuel-pressure gauge. The camshaft procedures identify a specific repair hazard: incorrect timing alignment during removal can damage the tappets.

Serial-Specific Hydrostatic Service

Drive-component layouts distinguish SN -040000, SN 040001 to 085000, and SN 085001-. The X300 K46BR pulley and belt change at SN 040938- is identified separately, helping match the drive hardware to the correct configuration before selecting parts.

Troubleshooting addresses loss of drive, movement in only one direction, reduced speed, creep, erratic operation, noise, and park-brake complaints. Tests and adjustments cover traction-drive performance, neutral creep, freewheel operation, brake linkage, and transaxle bleeding; the bleeding procedure excludes the X360.

Removal instructions are grouped separately for X300/X320/X340, X304/X324, and X360 tractors. PTO-clutch, drive-belt, tensioner, pedal, and cruise-control service are also documented.

The K46, K58, and K58H component sections cover specific seal, shaft, bearing, brake-arm, and control-arm work. K46 case separation and internal filter replacement are illustrated, while the Gear Power Flow view explains the mechanical drive path.

Electrical Circuits and Harnesses

Electrical documentation separates SN -040000, SN 040001-, and export SN 150001- configurations. Main Wiring Schematic and PTO/RIP Circuit Wiring Schematic drawings accompany harness locations, connector details, and wire-color identification.

Circuit explanations lead into diagnosis of power supply, cranking, charging, ignition, fuel shutoff, PTO/RIP, headlights, and accessories. Tests cover grounds, batteries, the regulator/rectifier, stator, starter and solenoid, relays, safety switches, PTO clutch, diodes, and ignition components.

These serial-specific schematics and test charts allow a technician to follow the applicable circuit rather than apply a later harness arrangement to an early machine.

Mechanical Steering and X360 Hydraulics

Mechanical steering procedures include front-wheel alignment, X304/X324 rear-wheel alignment and tracking, steering-gear and tilt-unit service, front-axle removal, rear-linkage service, and steering-knuckle repair.

For the X360, the hydraulic section includes steering-control-unit removal and disassembly, steering-valve disassembly and assembly, lift-cylinder replacement, and transaxle oil/filter service. The Hydraulic Schematic connects these components with the lift-oil-flow/pressure and steering-valve/cylinder leakage tests.

Deck Variants, Blades, and Spindles

Deck illustrations distinguish Model Year 2006 and 2007 38-inch arrangements, early and later 42C hardware, 42M idler changes, and later 48C/54C drive layouts. Spindle construction and blade hardware are separated for 38C, 42C, and 42M decks through MY09 versus MY10-and-later.

The Spindle Section - 48C and 54C Decks view supports the spindle repair instructions. Mower-level checks reference the AM130907 blade-height gauge, while blade sharpening and balancing have their own procedures.

Clamping the hexagonal end of a 38- or 42-inch deck spindle shaft can damage the shaft and impair blade operation; this is specifically addressed in the spindle instructions.

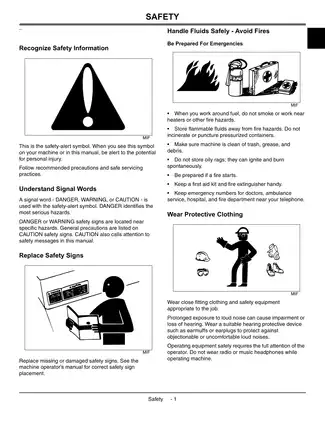

Follow the manual’s precautions for battery isolation, secure machine support, hydraulic-pressure release, hot components, fuel, rotating blades, and spring-loaded belt or lift parts.

Examples of Cold Valve-Clearance Specifications

For FH491V, FH661V, and FH721V engines, the specified cold intake and exhaust valve clearance is 0.075–0.125 mm (0.003–0.005 in.). Their engine chapters provide the corresponding inspection and adjustment procedures.

The FS541V specification is 0.10–0.15 mm (0.004–0.006 in.), also measured cold. Its valve-clearance section explains the relationship to valve seating and automatic compression-release operation.
