John Deere Models Covered & Key Technical Specifications

Models: 3215, 3215A, 3215B, 3225B, 3235, 3235A, 3235B

Model Year: 2003

Engine Variants: Yanmar 3TNE78A (3TNE78A-RJFE, 3TNE78A-ERJFE), 3TNE82A (3TNE82A-EJF), 3TNE84 (3TNE84-JFE, 3TNE84-EJFE). The manual shows the 3TNE78A on a 3215 and identifies a 3TNE82A-EJF wiring harness for the 3215B.

Hydrostatic Transmission: Eaton 70145 (3215, 3215A, 3215B, 3225B, 3235); servo-controlled Eaton 72400 (3235A, 3235B).

Serial Number Breaks (system-specific):

  • Reel-drive hydraulics: 3215B from TC3215B010279; 3225B from TC3225T010033; 3235B from TC3235F010357 or TC3235T010381. The earlier schematic applies through TC3215B010278 (3215B), TC3225T010032 (3225B), and TC3235F010356 or TC3235T010380 (3235B). That schematic also covers the 3215, 3215A, 3235, and 3235A.

  • Hydrostatic schematics: 3235A/3235B TC3235T010001-TC3235T020000 and TC3235F010001-TC3235F020000; 3235B from TC3235T020001 or TC3235F020001.

  • Radiator fan wiring: 3215B from 020244; 3225B from 010403; 3235B 2WD from 020175; 3235B 4WD from 020439. The earlier wiring applies through 020243 (3215B), 010402 (3225B), 020174 (3235B 2WD), and 020438 (3235B 4WD).

  • Engine fast-idle configuration: 3TNE78A from 013511; 3TNE84 from 011150; 3TNE82A all serial numbers. The earlier fast-idle adjustment procedure applies through 13510 (3TNE78A) and 011149 (3TNE84).


  • Engine Displacement: 1.204 L (3TNE78A), 1.33 L (3TNE82A), 1.496 L (3TNE84)

  • Engine Type: 4-Cycle Diesel, 3-Cylinder

  • Power Output: 19 kW (25 HP) to 23.2 kW (31.2 HP)

  • Rated RPM: 3000

  • Piston-to-Cylinder Bore Clearance: 0.001-0.003 inches

  • Alternator Output: 40 Amps

  • Cylinder Compression (3TNE84, Standard at 250 RPM): 3234 kPa (469 psi)

John Deere Manual Features & Selected Content Preview

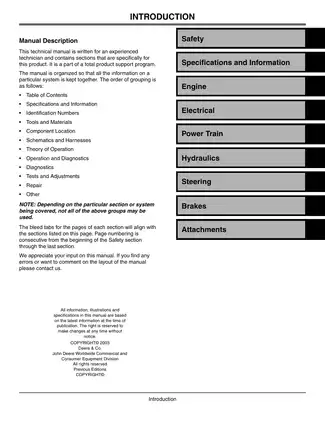

This February 2003 North American technical manual (P/N TM1534) covers the John Deere 3215, 3215A, 3215B, 3225B, 3235, 3235A, and 3235B Lightweight Fairway Mowers.

Search, Bookmarks, and Wiring Diagram Detail

Finding procedures and tracing circuits — PDF bookmarks link to sections and individual procedures. The technical text is searchable, while the cover and some wiring labels are embedded as images. Small wire and connector labels are easier to read when zoomed in. The file restricts text copying.

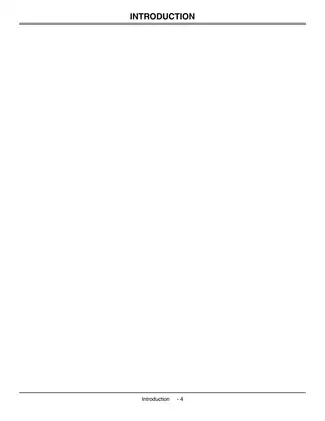

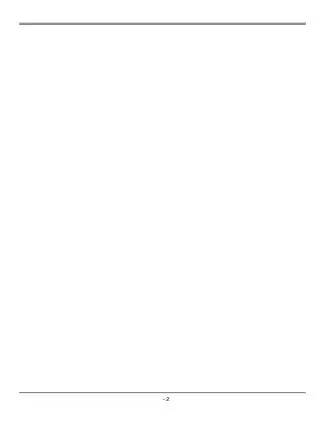

The download is one printable, English-language, 492-page PDF, including the cover, introduction, index, and 14 blank or divider pages.


Diesel, Hydrostatic Drive, and Reel Service

These are selected workshop topics from the manual. It also includes fuel-system leak checks and fuel shutoff solenoid tests.

  • Diesel engine repair — Compression and leakdown testing, cylinder head and valve service, piston and crankshaft inspection, injector testing, and engine removal.
  • Electrical diagnosis — Starting and charging tests, control-module LED diagnosis, wiring diagrams, harness identification, and starter and alternator repair.
  • Hydrostatic drive — Step-by-step Eaton pump disassembly and assembly, charge-pressure and relief-valve tests, neutral adjustment, and front and rear wheel motor service.
  • Reel and lift hydraulics — Danfoss triple-pump repair, reel motor case-drain testing, backlapping valve service, lift valve overhaul, and lift cylinder replacement.
  • Steering and brakes — Char-Lynn steering control unit leakage tests and overhaul, brake and brake pedal switch adjustments, and brake pad replacement.
  • Cutting units and attachments — Separate service procedures for the 22-inch Standard, 22-inch Heavy Duty, and 2500M cutting units, plus Fairway Tender Conditioners, vertical cutting units, and power brushes.

John Deere wrote this technical manual for experienced technicians.

Diesel Engine, Fuel System, and Cooling

The 3TNE78A, 3TNE82A, and 3TNE84 engine chapters cover bore-to-piston tolerances, bearing wear limits, valve clearances, and camshaft inspection. The compression test identifies the JT01682 gauge assembly and JDG560 adapter.

Fuel-system diagrams and descriptions trace the mechanical transfer pump and filter/water separator. Cooling coverage includes coolant-pump service, thermostat testing, and separate pressure tests for the cooling system and radiator cap. Reference sections distinguish North American and European fuel, oil, and coolant recommendations.

Injection-pump service limits — Static timing adjustment applies to the 3TNE78A-RJFE and 3TNE84-JFE. On the 3TNE78A-ERJFE, 3TNE82A-EJF, and 3TNE84-EJFE, timing adjustment is prohibited and replacement of the complete pump and governor assembly is reserved for an authorized factory-trained technician. For the engines covered by the fast-idle serial breaks, fast-idle and torque-capsule adjustments are reserved for authorized diesel service facilities.

Eaton Drive, Reel Hydraulics, and Steering

Separate flow and pressure checks for the Eaton 70145 and 72400 help technicians select the correct test before diagnosing a pump fault. On 3235B machines from TC3235T020001 or TC3235F020001, the triple pump supplies charge pressure because the hydrostatic pump has no internal gerotor charge assembly.

The hydrostatic, reel-drive, and lift schematics show optional four-wheel drive and down-pressure equipment where applicable. Serial-specific diagrams distinguish earlier soft-start reel circuits from later configurations. The hydraulic tests identify the D01074AA in-line tester and fittings from the BM18319 diagnostic kit.

Eaton Char-Lynn 2 Series steering overhaul covers positioning the spool, sleeve, seals, and gerotor. The centering springs are not individually serviceable.

Starting, Interlocks, and Radiator Fan Wiring

The main electrical schematic and the operator-off-seat cranking diagram accompany circuit-specific diagnostic charts and component location views. Control-module LED legends tie switch inputs and outputs to seat, park-lock, mowing, and lift functions. The radiator fan section has separate wiring and diagnostic information for earlier and later B-series machines.

The alternator assembly instructions flag a specific risk: the longer screw can contact the frame and damage the charging system if installed in the wrong position.

Reel Setup, Roller Bearings, and Attachments

Reel-to-bedknife clearance, backlapping, and height-of-cut procedures are organized by cutting unit. Repair coverage includes reel removal, bedknife replacement, roller bearings, Fairway Tender Conditioner assemblies, power brushes, and vertical cutting reels. The roller service section explains how pressure on the bearing’s center shaft during installation can leave the bearing tight.

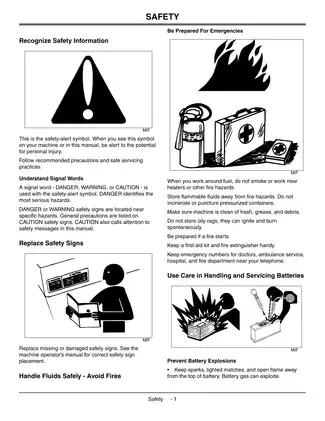

The manual’s safety procedures address rotating reels, hydraulic pressure relief, electrical isolation, and support for raised equipment.

Sample Valve Seat, Alternator, and Cooling Specifications

For the 3TNE84, the standard intake valve seat width is 1.07–1.24 mm (0.042–0.049 in.). The engine torque table specifies 69 N·m (51 lb-ft) for the alternator pulley nut on all three engines.

The radiator cap test specifies an opening pressure of 88 kPa (12.8 psi). The manual gives separate limits for the cooling-system leak test. Reference tables also cover metric and inch fasteners, face-seal and O-ring boss fittings, and multi-stage cylinder-head tightening.
