John Deere F1145 Front Mower Repair Manual, 1996 (P/N TM1519)

John Deere factory technical manual P/N TM1519, dated 01Sep96, covers the F1145 Front Mower. It addresses diesel-engine configurations, hydrostatic drive, Mechanical Rear Wheel Drive (MRWD), live independent PTO, and the 72-inch mower deck.

PDF Search, Bookmarks and Diagram Detail

Search and drawing detail: Main text is searchable, with embedded bookmarks for system sections and major subtopics. Many drawing labels are outside the searchable text. Small wiring labels require zooming; some fine labels in the Hydraulic Schematic remain soft when enlarged.

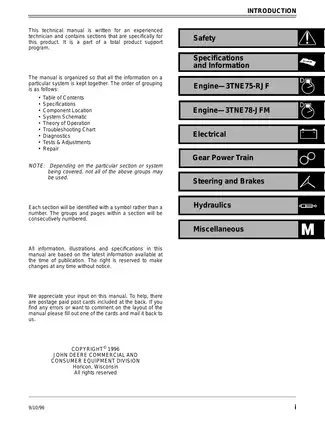

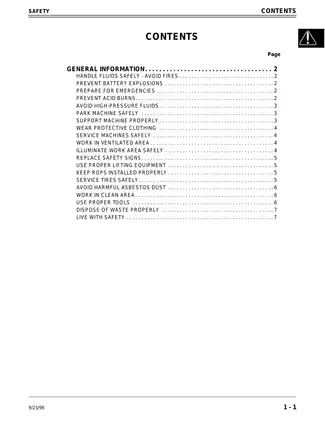

One printable, 581-page PDF, including the original cover, introductory pages, index, blank/notes pages, and 39 additional enlarged diagram panels already included in the total.

Diesel Diagnosis, Hydrostatic Drive and Mower Repair

This is a selection of covered work, rather than a complete contents list. Other topics include cruise-control linkage repair and fuel-tank removal.

• Engine diagnosis: Compression and oil-pressure tests, injection timing, valve-clearance and idle adjustments, belt checks, and fuel, cooling, and air-intake troubleshooting.

• Electrical circuits: Starting, charging, fuel shutoff, air heater, PTO, indicators, and interlock diagnosis, supported by serial-specific schematics and harness layouts.

• Hydrostatic transmission: Step-by-step disassembly and assembly, charge-pump pressure/flow tests, closed-loop relief testing, and forward, neutral, and neutral-return adjustments.

• PTO and axles: Clutch and inertia-brake repair, transaxle and differential work, final-drive overhaul, and MRWD axle service.

• Steering and brakes: Steering-valve overhaul, cylinder-leakage and priority-flow tests, brake-disk repair, and brake-freeplay and park-lock adjustments.

• Hydraulics: Main-relief, pump-flow, and divider-valve tests, lift/control-valve leakage checks, and optional weight-transfer pressure testing.

• Mower deck: Driveshaft, belt, blade, spindle, gearbox, roller, discharge-chute, and ROLL-GARD procedures.

Written for experienced technicians, this manual assumes the workshop knowledge and test equipment needed for its diagnostic and repair procedures.

System information stays together, from specifications and component locations through troubleshooting, testing, and repair. That organization supports following a fault through the relevant system. Workshop references include component-specific torque data, wear limits, fluid capacities, and SERVICE-GARD tools.

Engine Variants and Overhaul Limits

3TN75-RJF: This 995 cm³ engine receives machine-specific diagnostics, engine removal/installation, and fuel, air, and cooling-system procedures. Complete engine repair requires the separate Yanmar Diesel Engines Component Technical Manual CTM3, which is not included. The installed-engine component list also refers to CTM3 for detailed repair procedures.

3TNE78A-JFM and 3TNE78A-JFME: The manual directs these variants to Section 4, labeled 3012D001 (3TNE78-JFM). Its 1204 cm³ engine coverage includes step-by-step cylinder-head and valve work, piston/connecting-rod service, cylinder-bore inspection, crankshaft/main-bearing and flywheel work, and camshaft/timing-gear procedures.

Lubrication and cooling-system repairs, hole-type injection-nozzle testing and cleaning, and 40-amp Nippondenso alternator and starter work are also covered. Injection-pump removal, installation, and static timing are included; internal pump or governor repair requires a qualified fuel-injection repair shop.

Test equipment includes the JDG356 fuel-pump pressure kit and JT01682 compression gauge with JDG560 adapter. The 3TN75-RJF chapter also provides fuel-transfer-pump flow/pressure and air-intake restriction checks. Cooling-system and radiator-cap pressure tests complement the engine tests.

Electrical Diagrams and Harness Changes

The F1145 Electrical Schematic separates the serial ranges listed above. Harness notes identify the fuel-shutoff relay deletion at M01145X020377, combined hold-in/PTO relays at M01145X130397, and removal of the 245 Red circuit at M01145X130863. These distinctions help match circuit diagnosis to the machine's harness.

Control/fuse-module and diesel-control-module tests accompany circuit diagnosis. Alternator repair and wiring-harness procedures include Weather Pack connectors and the JDG155 electrical repair tool kit.

The repair warnings address cracked air-restriction indicator housings from overtightening and charging-system damage from an incorrectly fitted alternator regulator screw.

Power Train, Steering and Hydraulic Repair

Internal drive components: Cross-Section View—Hydrostatic Transmission and Cross-Section View—Transaxle support internal assembly work. PTO coverage extends to solenoid, lubrication-relief, and modulation valves; axle procedures include differential backlash, MRWD end-play, and toe-in setup.

Steering and lift system: Cross-Section View—Steering Valve and Hydraulic Schematic accompany leakage, flow, and pressure diagnosis. Hydraulic-pump, flow-divider, and selective-control-valve disassembly/assembly procedures are included, along with oil-cooler removal, hose repair, and bleeding.

Lift cylinders are replaced as complete units. The optional weight-transfer valve has inspection and removal/installation coverage, but worn or damaged internal parts require replacement of the complete valve assembly.

The JDG282 temperature gauge and JT05469 flowmeter are specified for hydraulic testing. Fluid references cover crankcase, transmission/hydraulic, and MRWD gear-case capacities; Low Viscosity HY-GARD (JDM J20D) is preferred, with HY-GARD (JDM J20C) permitted. Engine oil, Type F ATF, and BIO-HY-GARD are excluded for the transmission/hydraulic system.

Deck Components and Final Checks

Cross-Section View—Left and Right Mower Spindles accompanies spindle assembly work. Deck data distinguishes domestic and export blade speeds and provides the gearbox ratio.

The gearbox/spindle assembly instructions flag lower-bearing damage from excessive press force. Machine checkout procedures cover PTO engagement, braking, neutral return, MRWD, steering, and attachment lift after service.

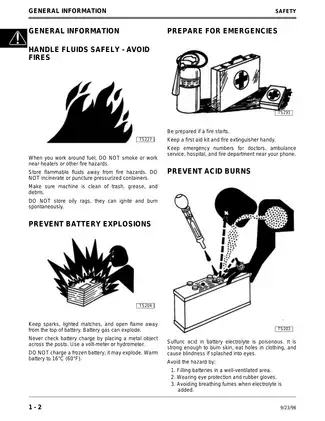

Review the manual's pressure-relief, machine-support, electrical-isolation, and lifting precautions before working on the hydraulic PTO, drivetrain assemblies, or rotating mower components.

Valve-Clearance, Compression and Charge-Pressure Preview

For the 3TN75-RJF, the cold valve-clearance specification is 0.20 mm (0.008 in.). Its compression test specifies a 2448 kPa (355 psi) minimum and a maximum cylinder-to-cylinder difference of 490 kPa (71 psi), with a minimum cranking speed of 250 rpm.

The hydrostatic charge-pressure test specifies 968–1379 kPa (140–200 psi) at fast idle with hydraulic oil at 43°C (110°F), illustrating how the test data ties readings to operating conditions.
