John Deere 2500, 2500A, 2500E Greens Mower Technical Manual OEM (P/N TM1757)

• Model and document coverage: Covers John Deere 2500, 2500A, and 2500E Professional Greens Mowers with Kawasaki FD620D gasoline or Yanmar 3TNE68 diesel power. This is the North American TM1757 DEC05 technical manual in an 820-page PDF.

• Gas-engine diagnosis and repair: Details ignition, carburetion, fuel delivery, cooling, lubrication, governor, and automatic compression-release operation, followed by spark, compression, crankcase-vacuum, oil-pressure, fuel-system, and cooling-system tests. Repair coverage reaches the cylinder heads, valves, pistons, camshaft, crankshaft, oil pump, starter, and carburetor.

• Diesel-engine workshop procedures: Walks through troubleshooting, valve and compression checks, air-intake and fuel leak testing, fuel-system bleeding, injector testing, injection-pump static timing, and cooling-system tests. Internal repair sections cover the cylinder head, pistons and connecting rods, main bearings, camshaft and timing gears, injection equipment, starter, and alternators.

• Electrical fault isolation: Maps gasoline and diesel main schematics, model- and serial-specific harnesses, interlock logic, control-module diagnostic codes, and circuit-by-circuit checks for cranking, run, charging, warning lights, lift/lower, mow/backlap, and the 2500E reel-motor system. Connector service and wire-code tables are included.

• Hydrostatic, hydraulic, steering, and brake work: Documents charge-pressure and pump-flow testing, hydrostatic pump and wheel-motor repair, third-wheel-assist diagnosis, hydraulic-system bleeding, lift and reel-pump tests, steering leakage and relief checks, park-brake adjustment, and related component removal and assembly.

• Cutting-unit and attachment service: Adds reel-to-bed-knife adjustment, backlapping, reel and bed-knife grinding, reel-speed and height-of-cut setup, roller and bearing repair, plus service for the Greens and Turf Conditioner, power brush, vertical cutting unit, and the 2500E electric reel drive.

Component and System Documentation

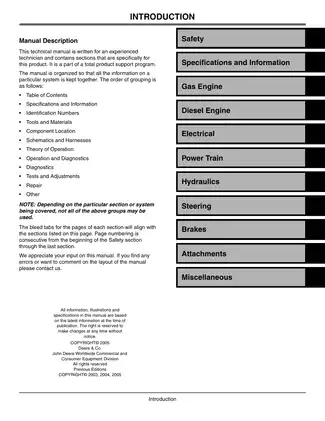

When a greens mower rolls into the shop with an electrical, drive, or cutting-quality complaint, guesswork quickly consumes diagnostic time. This manual keeps theory of operation, component locations, test conditions, adjustment data, and repair procedures together by system. John Deere states that it is written for an experienced technician, and the depth of the hydraulic, electrical, and internal-engine work assumes normal shop measuring equipment and safe service practices rather than beginner-level instruction.

The configuration differences are especially important when selecting procedures or parts. The 2500 and 2500A use direct hydraulic reel motors and a triple, three-layer hydraulic-and-charge pump. The 2500E uses 48-volt electric reel motors with controllers and a two-layer pump that eliminates the hydraulic reel-drive section. Hydraulic reel motors and the hydraulic oil cooler therefore apply to the 2500/2500A, while the 2500E coverage shifts to reel-motor controls, power harnesses, belt drives, and controller diagnosis.

Electrical coverage also separates the early 2500/2500A console and lift/lower circuits through serial number 020000 from the 2500A 020001-and-up arrangement shared with the 2500E. Steering-wheel, column-cover, and tilt-mechanism repair is divided at serial number 030000/030001.

Schematics, Specifications, and Tools

Named diagnostic references include the Main Electrical Schematic for each engine type and the 2500E Reel Motor Control Module Signal Harness W15. Drive-system references include the Main Hydrostatic Diagram, Third Wheel Assist Hydrostatic Diagram, and the Hydraulic System Schematic for models with optional equipment.

The specification sections provide general metric, Grade 7 metric, and inch fastener tables, followed by component-specific torque data, fluid and lubricant information, pressure and flow test specifications, wear and clearance limits, adjustment data, and electrical test values. The manual identifies job-specific equipment such as the BM19949 Hydraulic Diagnostic Test Kit, TCB10906 flow gage, JT05791 digital multimeter, AMT2978 height-of-cut gauge bar, and JDG795 roller-bearing puller.

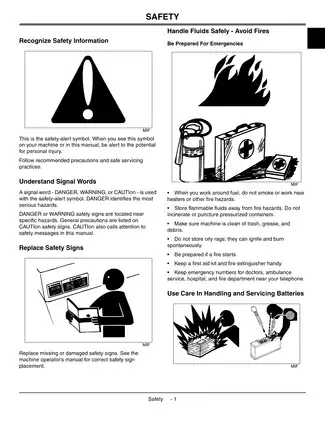

Repair Cautions and Safety

The hydraulic-pump repair section warns that its aluminum sections must not be pried apart because the machined surfaces are vulnerable to damage. During roller service, force must not be applied through the bearing center shaft; the bearing can set tight and bind.

High-pressure hydraulic circuits, sharp reels, rotating components, batteries, and lifted equipment require the shutdown, pressure-relief, support, and guarding practices specified in the manual. Review the applicable safety and test setup before opening a line, energizing a circuit, or servicing a cutting unit.
