John Deere 2653A Professional Utility Mower (2005) — Technical Manual (P/N TM1554)
419 Pages • 1 Printable PDF (English) • Download
John Deere Models Covered & Key Technical Specifications
Model: 2653A
Sub-models / Variants: 26 in. reels, 30 in. reels, 5-blade cutting units, 8-blade cutting units, 2WD and optional 3WD (Eaton hydrostatic drive), lift system with Ground Following Kit (AMT1899)
Model Year: 2005
Serial numbers (2653A): Electrical schematics S.N. (-050071), (050072-060000), (060001-120960), and (120961-). The W4 main harness has a separate split between S.N. (060001-060554) and (060555-).
Hydraulic serial breaks (2653A): Hydraulic schematics S.N. (-060000) and (060001-). Lift-system layouts S.N. (-060844) and (060845-). The (060845-) layout also applies to machines modified with the AMT1899 kit.
-
Engine: Yanmar 3TNE68, 4-cycle diesel, 3-cylinder
-
Engine displacement: 0.784 L (47.8 cu in.)
-
Gross output power: 13.8 kW (18 hp)
-
Maximum torque: 61.7 N•m (45.5 lb-ft) at 2400 RPM
-
Fuel tank capacity: 28 L (7.4 U.S. gal)
-
Engine oil capacity: 2.4 L (2.5 qt) with filter
-
Hydraulic reservoir capacity: 20.8 L (5.5 U.S. gal)
-
Cooling system capacity: 4.0 L (4.2 U.S. qt) for engine and radiator
-
Battery: 12 VDC
-
Mowing speed: 0–8.0 km/h (0–5 mph)
-
Transport speed: 0–12.8 km/h (0–8 mph)
John Deere Manual Features & Selected Content Preview
This John Deere Technical Manual, TM1554 (DEC05), is the North American December 2005 edition for the 2005 John Deere 2653A Professional Utility Mower. It covers the Yanmar 3TNE68 diesel and the mower’s floating reel cutting units.
PDF Search, Bookmarks, and Diagram Detail
Search and navigation: The manual text is searchable. Chapter bookmarks open the main sections, but some wiring and hydraulic schematic bookmarks have broken destinations. Zoom in to read small wire codes and connector labels in dense diagrams.
The download is one printable, English-language 419-page PDF, including the cover, one blank page, two introduction pages, and the seven-page index.
Diesel Overhaul, Hydrostatic Drive, and Reel Service
These are selected workshop topics. The manual also includes a schematic-reading guide and an illustrated map of the body panels.
-
Diesel engine: Compression, leakdown, oil-pressure, fuel-injection, and cooling-system tests. Repair covers engine removal, cylinder-head reconditioning, pistons and connecting rods, crankshaft, camshaft, timing gears, and oil pump.
-
Electrical diagnosis: Four three-sheet wiring schematic sets, W4 main-harness layouts, and guided diagnosis for cranking, run, mow, and backlap circuits.
-
Hydrostatic drive: Transmission flow and charge-pressure tests, neutral-creep and neutral-start-switch adjustments, Eaton pump overhaul, and Parker Ross TORQMOTOR inspection, assembly, efficiency testing, and final checks.
-
Reel and lift hydraulics: Reel pump pressure and flow tests, motor case-drain testing, double-pump and heavy-duty YC-series reel-motor repair, and mow-valve, lift-valve, and lift-arm service.
-
Steering and brakes: Steering leakage and relief-pressure tests, steering-control-unit repair, brake adjustment, switch testing, pad replacement, and caliper replacement.
-
Cutting units: Reel and bed knife grinding, inspection, clearance adjustment, on-machine backlapping, height-of-cut setup, roller service, bed knife support replacement, reel removal, and pivot-arm repair.
John Deere wrote this manual for experienced technicians. Internal overhaul and electrical, pressure, and flow testing require shop-level tools. For operating instructions and parts lookup, use the operator’s manual and parts catalog.
Engine Diagnosis and Fuel Adjustments
Diesel troubleshooting charts cover starting faults and connect test results to the cooling, lubrication, fuel, and air systems. The engine section lists separate fast-idle procedures for CARB/EPA and non-CARB/EPA engines. Fuel-control screw adjustment on certified engines is reserved for factory-trained, authorized technicians. The tool lists identify the JDG472 adapter for compression and radiator bubble testing, the D01109AA injector nozzle tester, and the DFMZ1A injection-timing tool.
Wiring and Interlock Fault Tracing
Use the machine’s serial number to select the schematic and W4 harness layout before tracing an interlock fault. The run-circuit charts separate operator-on-seat and operator-off-seat conditions, so the technician can follow the test path that matches the symptom. The electrical section also covers control-module, switch, relay, and diode tests, starter and alternator service, and METRI-PACK connector replacement.
Drive and Lift Repairs
The hydrostatic schematic distinguishes two-wheel drive from optional three-wheel drive and identifies the filter-bypass change on later machines. The pump assembly section warns that drawing the backplate into place with its bolts can damage the assembly. A dedicated startup procedure applies after hydrostatic repair.
The lift-system drawings also identify the layout used on machines retrofitted with the AMT1899 Ground Following Kit. The lift-valve section warns that removing the spools with the detent plunger in place can damage either part. The lift cylinders are serviced by replacement. Tool references include the D01074AA in-line hydraulic tester and the JDG892 lift-arm bushing installer.
Cut Quality and Shop Specifications
The attachment troubleshooting charts connect streaking and inconsistent cutting height to reel and bed knife condition, clearance, and roller wear. The cutting-unit section identifies the TCU13823 height-of-cut gauge bar. Service tables list fastener and hydraulic fitting torques, component tightening values, fluid capacities and approved lubricants, wear limits, and electrical test values.

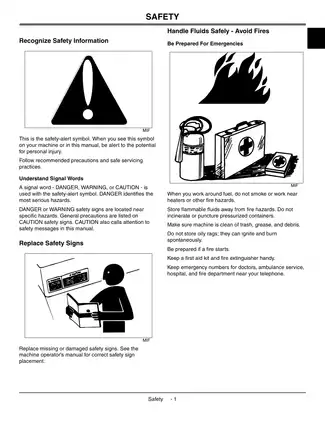

Hydraulic testing involves pressurized oil, and cutting-unit work involves supported machinery and sharp or rotating reels. The manual gives isolation, pressure-relief, and support precautions for the work.
Compression and Reel Grinding Specifications Preview
For the Yanmar diesel at operating temperature and a cranking speed of at least 250 rpm, the compression test specifies a minimum of 2,549 kPa (369 psi) per cylinder and a maximum difference of 241 kPa (35 psi) between cylinders.
The cutting-unit repair specifications call for a 20° reel relief grind and a 5° relief angle on the top and front faces of the bed knife.
