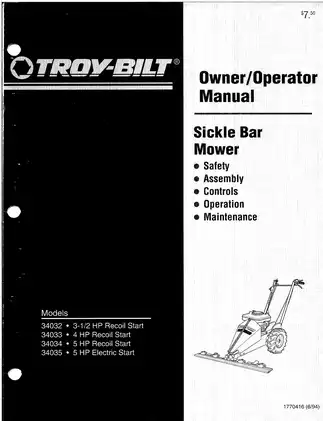

1994 Troy-Bilt Sickle Bar Mower 34032 / 34033 / 34034 / 34035 Owner/Operator Manual & Parts Catalog (P/N 1770416 )

The owner/operator manual explains mower assembly, operation, maintenance, and component repairs. The accompanying catalog connects the illustrated assemblies with replacement part numbers and model-specific components.

Missing pages: The owner/operator section omits printed pages 2–3 and 8–9, including service information, the opening safety material, and assembly parts/hardware charts. Internal engine repairs and detailed engine parts identification require separate Briggs & Stratton documentation.

PDF Navigation and Included Pages

Text search and section access: PDF text search is unavailable. Embedded bookmarks open the owner/operator manual and parts catalog, but do not provide individual chapter navigation.

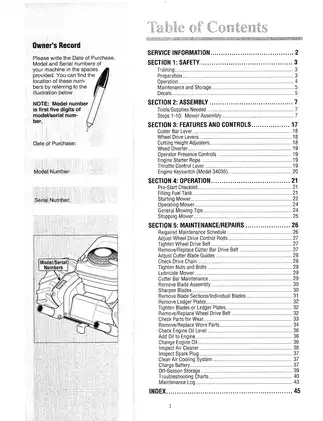

One printable English-language PDF contains 53 pages total, including the two publications listed above and one additional introductory page. Covers, the maintenance log, index, and warranty page are included in the publication counts; the additional introductory page is already included in the total.

Cutter Bar Repairs, Drive Adjustments, and Parts Identification

These selected topics highlight the mechanical and electrical coverage. The manual also explains wheel-lever steering and the function of the cutting height adjusters.

• Cutter bar repair: Step-by-step instructions cover blade assembly removal, sharpening, blade section replacement, ledger plate removal, riveting, and blade guide adjustment.

• Wheel and cutter drives: Belt replacement, wheel drive tension correction, control rod adjustment, belt guide positioning, and drive chain inspection and lubrication.

• Eccentric drive: Wear checks for the radial bearing, channel, pitman assembly, and shaft bearings, with replacement procedures for worn components.

• Controls and electrical troubleshooting: Operator presence control testing, mower and engine fault charts, and electric-start diagnosis for Model 34035.

• Assembly and routine care: Handlebar and throttle control installation, cutter bar mounting, weed diverter installation, scheduled maintenance, and off-season storage.

• Parts identification: Three exploded assembly drawings with parts lists for the chassis, drive components, and cutter bars, including electric-start components.

This manual suits owners maintaining their mower; its bearing and blade repair procedures call for mechanical experience and the specified shop tools.

Model Variants and Cutter Bar Parts

The Briggs & Stratton engine configurations are 3.5 HP recoil start for 34032, 4 HP recoil start for 34033, and 5 HP recoil start for 34034. Model 34035 has a 5 HP electric-start engine that can also be started with the recoil starter.

The catalog identifies 34-, 38-, and 42-inch cutter bar assemblies as 1765990, 1766743, and 1766744, respectively. Blade hardware includes different rivet lengths, with longer rivets required at wear plate locations.

Blade Work and Eccentric Drive Diagnosis

Cutter bar procedures distinguish removal of the complete blade assembly from work on individual blade sections and stationary ledger plates. The riveting coverage includes both replacement work and tightening loose rivets against a steel block or anvil.

Wear checks distinguish looseness in the eccentric channel and radial bearing from wear in the eccentric arm weldment, pitman assembly shaft, and knife-head rubber insert. These checks help trace a chattering cutter drive before selecting replacement parts.

Shaft-bearing replacement requires an arbor press, bearing puller, and round bar stock. Figure 5-25 illustrates bearing removal; the reassembly instructions also identify a housing fastener tightening sequence whose incorrect application can damage the mower.

Drive Adjustments and Scheduled Maintenance

Separate illustrations distinguish cutter bar belt guide adjustment in Figure 5-4 from wheel drive belt guide adjustment in Figure 5-5. Wheel drive control rod adjustment does not set belt tension, and incorrect rod adjustment can break the plastic thumb latches.

Routine care covers lubrication of blade guides, drive chains, wheel bearings, and pivots. Engine maintenance includes oil changes, air cleaner and spark plug inspection, and cooling-system cleaning. A maintenance schedule and service log support recurring care.

Electric Starting and Engine Service Limits

Model 34035 coverage includes battery charging and removal, starter-harness and keyswitch components, and fault charts for starting and charging problems. Keyswitch checks use a continuity tester or test light.

Figure 5-27 identifies the battery charging harness connections. It is a connection illustration rather than an electrical circuit schematic; circuit schematics are not included.

Engine coverage remains limited to routine maintenance and troubleshooting, with engine service referrals where specialist work is required.

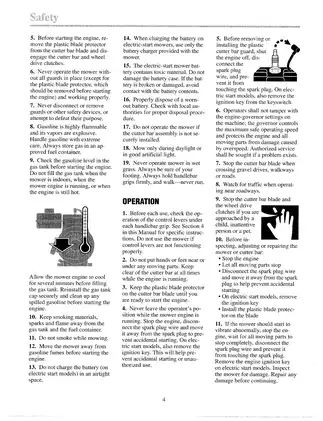

Follow the manual's safety precautions for sharp cutter blades and accidental starting before inspection, adjustment, or repair.

A Preview of Control Rod and Oil Service Data

The wheel drive control rod section specifies a 1-1/4-inch gap between the rod and plastic thumb latch, illustrated in Figure 5-1. This is a control linkage setting, distinct from wheel drive belt tension.

For the covered engines, the oil-change section gives an approximate refill capacity of 22 ounces, alongside dipstick checks and an overfilling warning. Oil selection is referred to the separate engine owner's manual.
