Massey-Ferguson Models Covered & Key Technical Specifications

Model: GC2300

Model Year: 2005


  • Engine: Iseki Diesel E3112-B12, 3-cylinder, 1123 cc

  • Engine Horsepower: 22.5 HP (gross) @ 2600 rpm

  • Transmission: Hydrostatic, 2-speed range constant mesh

  • PTO: Independent, engine-driven; Rear 540 rpm

  • Hydraulics: Transmission-mounted gear pump with flow divider; 2.0 gpm steering

  • Electrical System: 12-volt, negative ground, 40 amp alternator

  • Fuel Type: No. 1 or No. 2 Diesel fuel

Massey-Ferguson Manual Features & Selected Content Preview

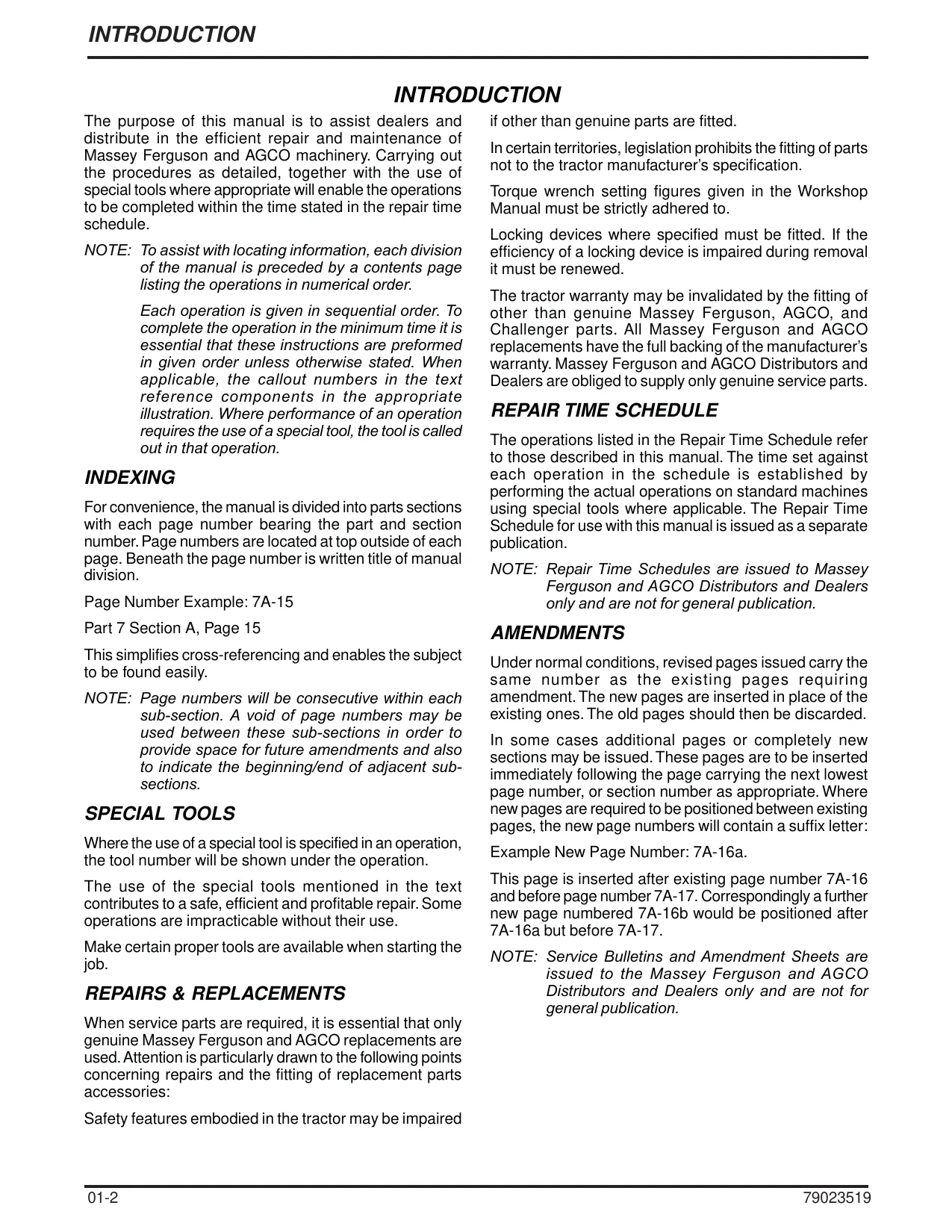

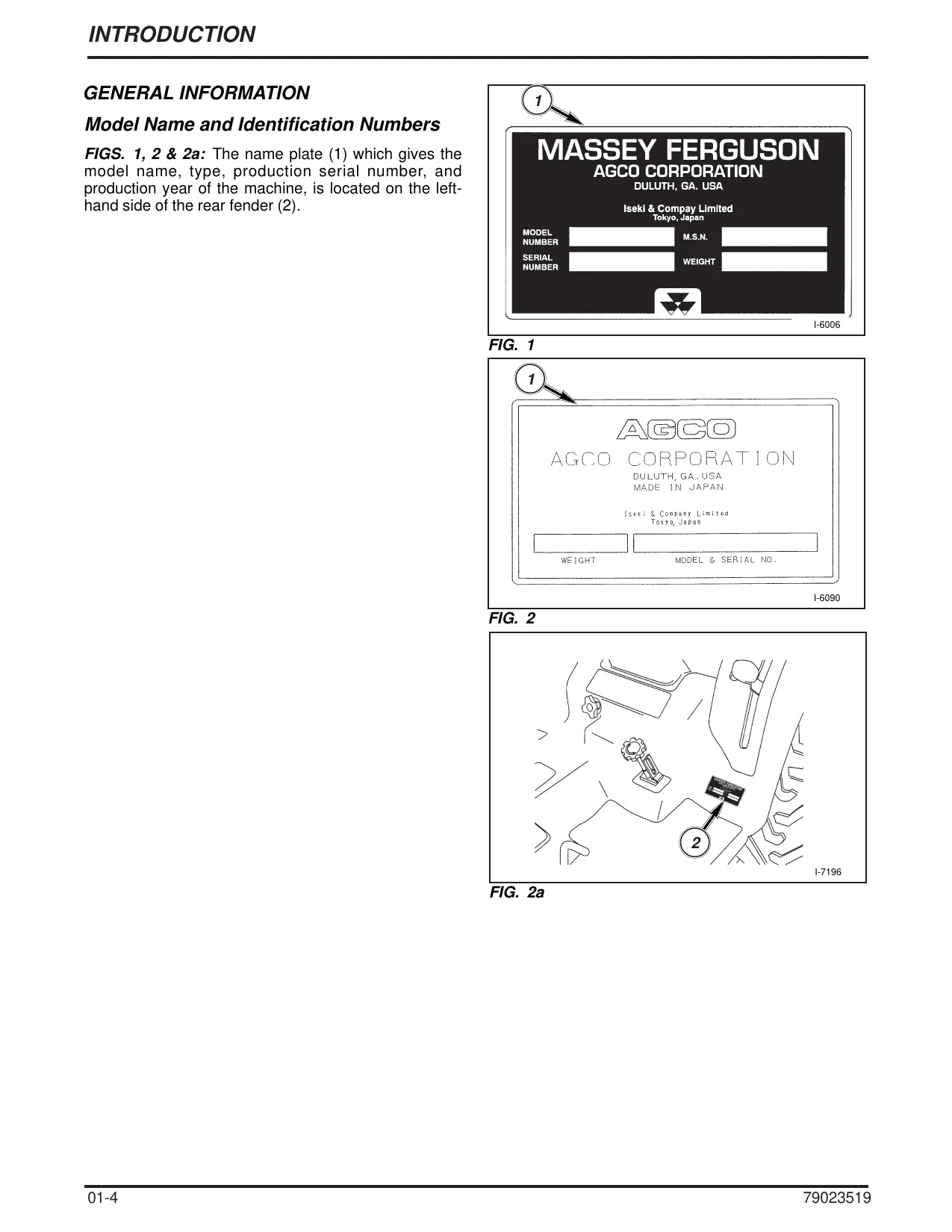

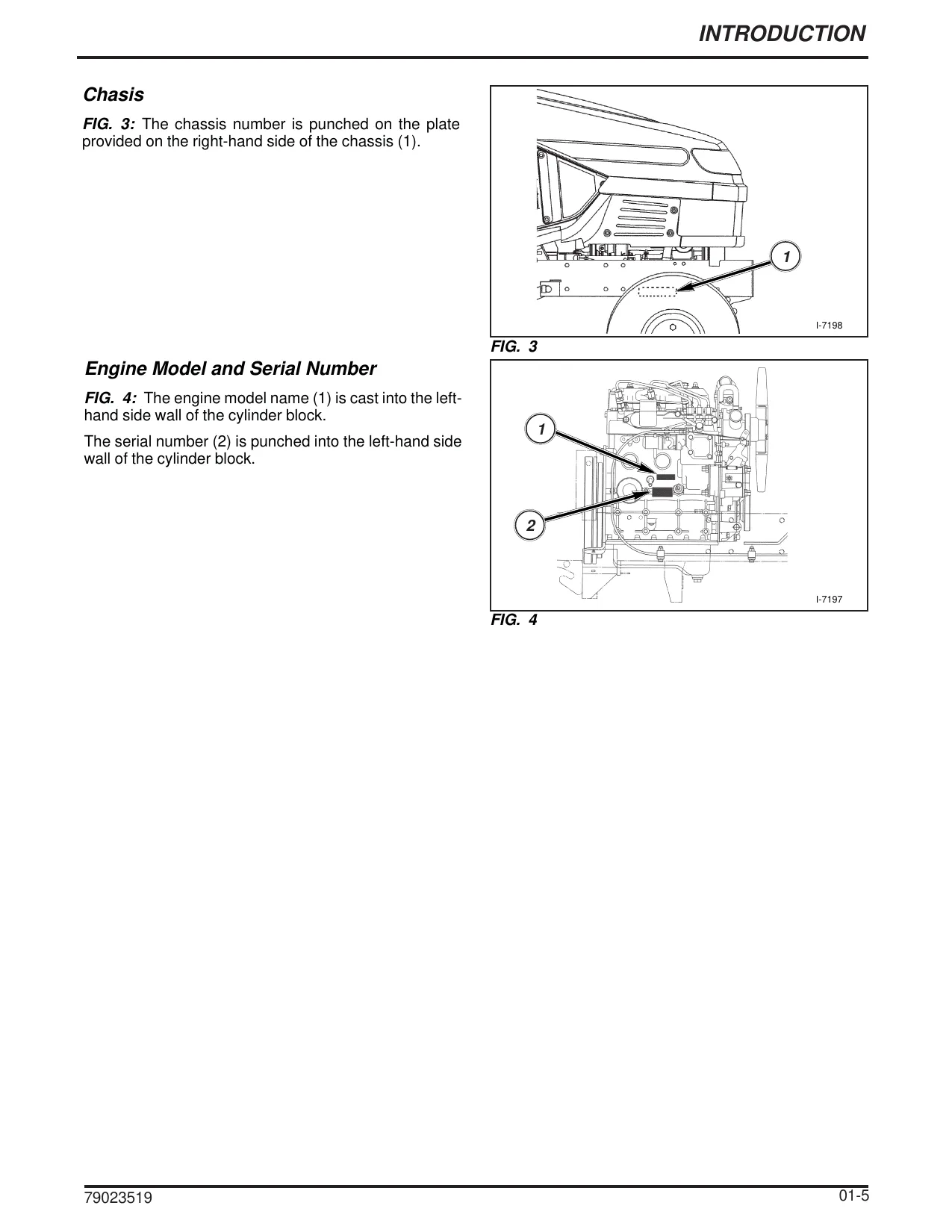

This workshop service manual (P/N 4283003M1) covers the 2005 Massey Ferguson GC2300 compact tractor with the Iseki E3112-B12 diesel engine and hydrostatic transmission. It covers engine removal, installation, and routine service. Internal engine repair requires the separate Iseki component manual for the applicable production version.

PDF Search and Wiring Detail

Text search and wiring detail: Main chapter text is searchable. The two engine-manual insertion sheets and the labels inside the wiring diagram are outside the searchable text. The PDF has no embedded bookmarks. Zoom in to read the small connector labels and wire codes.

The download is one printable English PDF. Its 184 pages include two engine-manual insertion sheets, five notes pages, and three intentionally blank pages.


Drivetrain, Hydraulics, and Mower Deck Service

These selected workshop topics give a sample of the coverage. The manual also covers fuel tank cap operation and inspection of the mower deck gauge wheels and rollers.

  • Chassis and engine service: Engine removal and installation, ROPS and fuel tank removal, cooling-system maintenance, air cleaner service, and fuel-system bleeding.
  • Transmission and PTO repair: Tractor separation, range-gear disassembly, hydrostatic pedal linkage adjustment, PTO clutch pack inspection, and rear and mid-PTO component service.
  • Axles and brakes: Front axle final-drive teardown, rear differential and differential lock service, and inspection and adjustment of the sealed wet-disc brakes.
  • Hydraulics and steering: Pump and PTO pressure test locations, control valve circuits, lift cylinder disassembly, steering orbit roll removal, and steering cylinder construction.
  • Electrical reference: Wiring diagram, wire harness layout, neutral-start and seat interlocks, safety relays, fuel shutoff solenoid, and sending-unit specifications.
  • Mower deck repair: Deck installation and linkage adjustment, standard and mulching-blade shimming, belt replacement, gearbox backlash adjustment, and spindle service.
  • Service specifications: Metric and inch torque charts, fluid capacities, lubrication points, maintenance schedules, and component wear limits.

Written for Massey Ferguson and AGCO dealer service work, this manual is suited to technicians with the lifting equipment and tools needed for major component removal and repair.

Chassis, Cooling, and Fuel

The chassis chapter covers the platform, sheet metal, and front axle, along with the connections that must be cleared before the engine comes out. Engine lifting notes identify the injection lines, radiator, and fan shroud as components to protect. Separate insertion sheets identify the Iseki engine manuals for 2005 production onward and for earlier production.

Cooling and fuel coverage includes fan belt adjustment, thermostat specifications, and electric fuel pump specifications. The engine removal procedure also addresses the tachometer cable on later builds.

Hydrostatic Transmission and PTO

The hydrostatic operating diagram shows the pump, motor, and charge circuit. Assembly views identify the range gears, four-wheel-drive shift mechanism, and PTO clutch pack. Inspection instructions cover bearings, shift forks, seals, and gear contact surfaces.

The PTO section identifies the rear shaft, seals, and shift linkage that can be reached with the transmission installed. That distinction helps you determine whether a PTO job requires splitting the tractor. The clutch section also links damaged seals to loss of engagement pressure.

Axles, Brakes, and Hydraulic Controls

The axle chapters explain that ring-and-pinion backlash is set by component machining. Brake inspection gives wear limits for the friction plates, separator plates, and actuator assembly.

The hydraulic system diagram and control valve circuit show how the shared pump supplies the three-point hitch, auxiliary hydraulics, and steering through the flow divider. The specifications list separate early and late HST high-pressure relief settings. Lift cylinder service covers the rockshaft, lift crank, piston seals, and slow return valve.

Electrical Circuits and Interlocks

Use the connector color codes, main switch contact chart, and wire harness layout together when tracing starter, warning light, or fuel gauge circuits. Charging specifications identify the alternator’s internal regulator and rectifier.

Mower Deck and Gearbox

The gearbox section includes a drawing for a shop-made backlash measuring jig and describes how shims set the gear clearance. The spindle section explains how a distorted seal lip or crooked installation can damage a replacement seal.

Workshop Reference Tables

The Three-Bond sealant chart lists North American and European equivalents, helping match the manual’s sealing and retaining-compound references to workshop supplies. Component instructions supplement the general torque charts. The dealer repair time schedule is a separate publication.

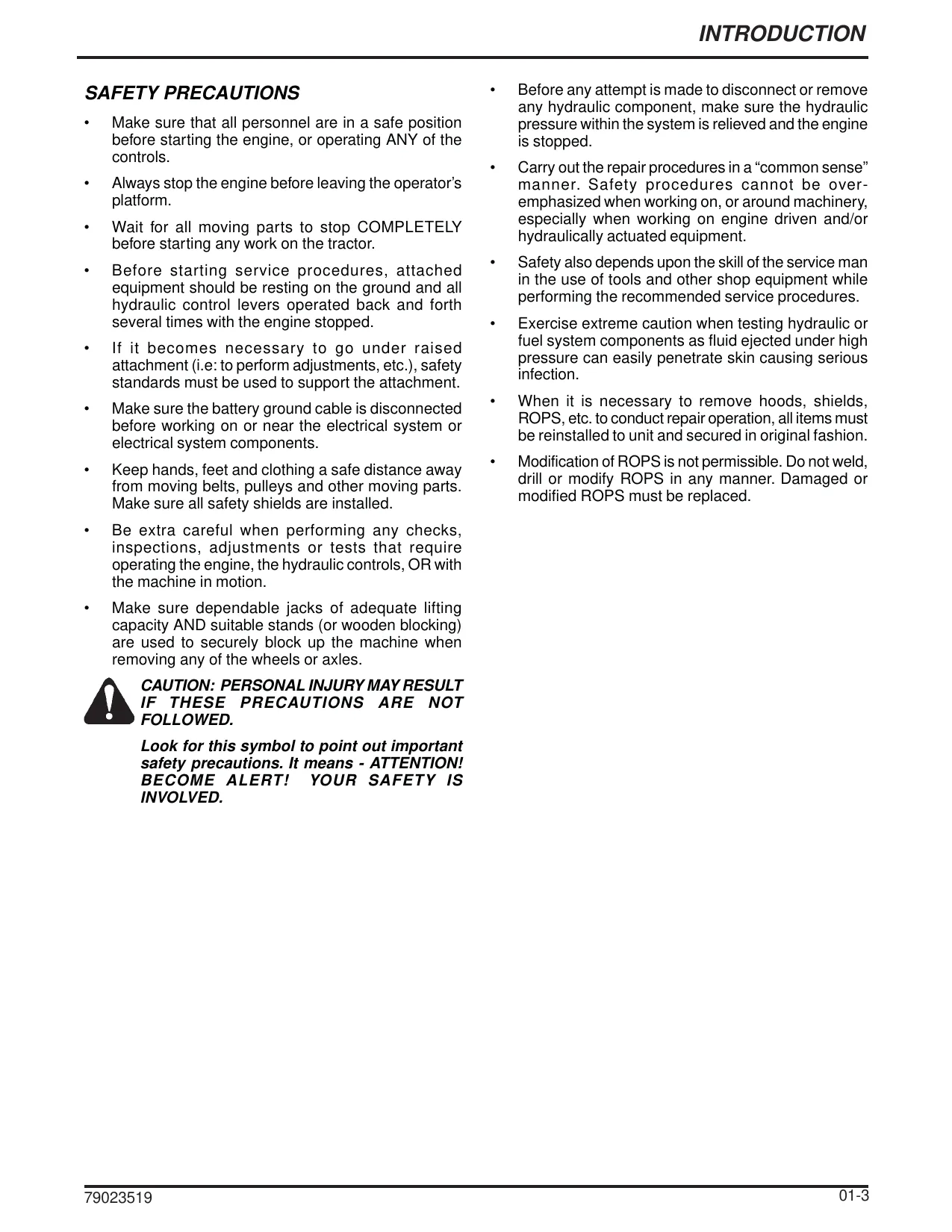

Follow the manual’s precautions for supporting separated tractor assemblies, releasing hydraulic pressure, and working around PTO-driven equipment.

Pressure and Sender Specification Examples

The hydraulic specifications list an HST charge pressure of 71 ± 14 psi and a PTO clutch pressure of 185–228 psi. The hydraulic component illustrations identify a dedicated PTO pressure test port.

The fuel gauge section gives sending-unit resistance at both ends of the float’s travel: 7 ohms at full and 95 ohms at empty.
