John Deere JA60/JA62/JA65/JE75/JX75/JX85 Mower Technical Manual
This technical manual provides comprehensive coverage for John Deere JA60, JA62, JA65, JE75, JX75, and JX85 walk-behind mowers. Ref: TM1723
Manual Preview

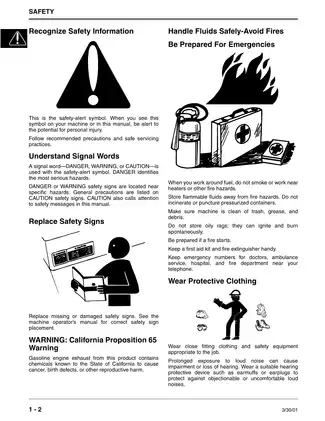

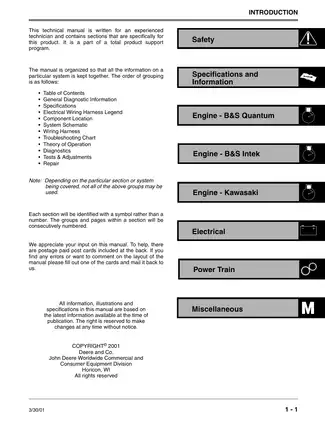

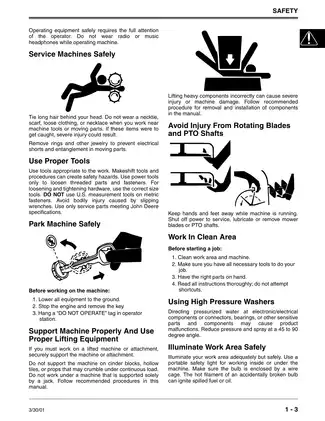

Sample pages from the John Deere JA60/JA62/JA65/JE75/JX75/JX85 Mower Technical Manual manual
Purchase & Download
Models Covered & Key Technical Specifications
John Deere JA60, JA62, JA65, JE75, JX75, JX85 Mower Technical Manual (TM1723) - 2001
This technical manual provides comprehensive coverage for John Deere JA60, JA62, JA65, JE75, JX75, and JX85 walk-behind mowers. Ref: TM1723 | Section Archive
- Engine Specifications: 190 cc displacement for the Quantum and Intek engines, delivering up to 6.5 HP for efficient operation.
- Electrical Specifications: Features electronic ignition with a spark plug gap of 0.020-0.030 inches for reliable starting.
- Fuel System Specifications: Utilizes unleaded gasoline with a 1.6 U.S. qt. fuel tank capacity for extended use.
- Transmission Specifications: Equipped with Kanzaki Tuff Torq for reliable power delivery across all models.
- Dimensions: Features 8.0 x 2.0 inch tires and wheels for maneuverability and stability.
- Shipping Weight: Varies from approximately 95 lb. to 120 lb. depending on the model, ensuring sturdy construction.
Professional Workshop Service Manual & Technical Specifications
Comprehensive John Deere Mower Service & Repair Handbook: JA60, JA62, JA65, JE75, JX75, JX85 Mower Technical Manual - Authorized Technical Operations Documentation-Framework
Year-Coverage: 2001 // Year-Coverage: Mower / Walk-Behind Logic // Calibration-Scope: Full System Coverage.
Engine Specifications
Manufacturer: Briggs & Stratton / Kawasaki Displacement: 190 cc (11.56 cu. in.) / 153 cc (9.34 cu. in.) Horsepower: 4.5 kW (6 HP) to 4.8 kW (6.5 HP) Lubrication: Splash System Oil Capacity: 0.65 L (22.0 oz.)
Electrical Specifications
Ignition: Electronic / Flywheel Magneto Spark Plug (Resistor): RCJ8 Champion / RC12YC Champion / RJ19LM Champion Spark Plug Gap: 0.030 in. / 0.020 in. / 0.028-0.033 in.
Fuel System Specifications
Fuel Type: Unleaded Gasoline Fuel Tank Capacity: 1.5 L (1.6 U.S. qt.)
Transmission Specifications
Make: Kanzaki Tuff Torq Type: Two or Five Speed / Five Speed Gear Selection: 2 or 5 Forward / 5 Forward
Dimensions
Tire & Wheel Size: 8.0 x 2.0 Shipping Weight (Approx.): 95 lb. / 98 lb. / 105 lb. / 120 lb.
The service manual covers engine specifications, fuel system specifications, electrical specifications, repair specifications, torque specifications, and special equipment or tools. It provides detailed information on component locations for engines, carburetors, pistons, and valves. The troubleshooting section includes engine troubleshooting charts, carburetor troubleshooting charts, and engine troubleshooting guides. The theory of operation section covers cooling systems, crankcase breather systems, lubrication systems, fuel systems, ignition systems, carburetor circuits, air intake systems, governor operation, and pressure lubrication operation. Diagnostic procedures are outlined for electric start systems, including battery tests, starter tests, stator tests, key switch tests, and flywheel magnet tests. Repair procedures cover battery removal and installation, key switch removal and installation, stator removal and installation, starter removal and installation, flywheel removal and installation, rocker arm removal and installation, cylinder head removal and installation, valve removal and installation, valve guide inspection, valve seat reconditioning, valve face reconditioning, engine removal and installation, transaxle removal and installation, blade brake clutch removal and installation, and traction cable replacement. Torque specifications are provided for various components. The manual also includes other materials and troubleshooting information for traction drive and blade brake clutch systems. Rigorously demanding engine repair procedures are documented for the John Deere JA60, JA62, JA65, JE75, JX75, and JX85 mower models. The manual details engine specifications, fuel system, electrical system, and repair specifications. It includes comprehensive troubleshooting guides and theories of operation for various engine systems, including cooling, lubrication, and fuel delivery. Diagnostic and testing procedures cover ignition systems, starter systems, and charging systems. Repair sections detail the removal and installation of critical components such as the flywheel, engine, carburetor, cylinder head, valves, pistons, crankshaft, and camshaft. The manual emphasizes proper torque specifications and diagnostic checks to ensure optimal engine performance and longevity. Finally, the manual contains detailed instructions for maintenance and repair, ensuring that users can perform necessary tasks effectively and safely.
