1989–1996 John Deere 12PB/12PC/12SB/14PB/14PT/14PZ/14SB/14SC/14SX/14SE/14ST/14SZ Walk-Behind Mower Service & Repair Manual (P/N TM1471)

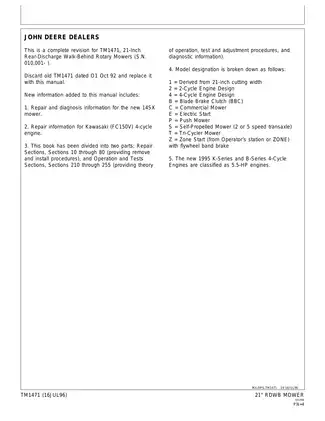

John Deere technical manual TM1471 (16JUL96) covers repair and diagnostics for 1989–1996 rear-discharge walk-behind mowers: 12PB, 12PC, 12SB, 14PB, 14PT, 14PZ, 14SB, 14SC, 14SX, 14SE, 14ST, and 14SZ. This revision replaces the October 1, 1992 edition and adds repair and diagnosis information for the 14SX.

• Engine repair: Engine removal, internal Briggs & Stratton and Kawasaki repairs, piston and bearing inspection, valve service, and recoil starter repair.

• Fuel and air: Mikuni and Walbro carburetor service, air-cleaner and breather work, fuel-system diagnosis, and governor adjustments.

• Transaxles: Kansaki 2-speed and 5-speed removal, internal disassembly and assembly, shift-cable service, and traction-drive adjustments.

• Blade brakes: Ogura and Warner blade brake clutch inspection, replacement procedures, drive-belt service, and zone-start flywheel brake controls.

• Electrical diagnosis: Ignition and electric-start wiring diagrams, component-location drawings, coil and safety-switch tests, and starter and charging-system checks.

• Chassis repairs: Wheel height adjusters, wheel-drive components, handlebars, deck wear plates, discharge covers, and discharge chutes.

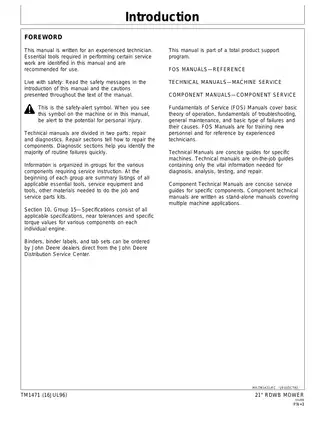

Written for experienced technicians, this manual identifies the essential tools and service equipment required for the documented work.

Engine Overhaul and Fault Isolation

Internal engine coverage follows the Briggs & Stratton 2-cycle, Briggs & Stratton 4-cycle, and Kawasaki FC150V configurations separately. Procedures include crankcase disassembly, cylinder inspection and reboring, piston-ring assessment, crankshaft bearing work, and valve-seat service on the 4-cycle engines. Revision notes also identify K-Series and B-Series 4-cycle engine updates.

Engine-specific diagnostic charts address hard starting, smoke, surging, and low power. Compression, cylinder-leakage, and crankcase-vacuum testing help distinguish sealing or breather problems from internal wear.

Tool references include the JDG49 piston ring expander and D01204AA puller. Briggs & Stratton valve-service coverage also identifies the JDM46-2 valve guide reject gauge.

Carburetor Versions and Fuel-System Service

Mikuni and Walbro exploded views distinguish the Briggs & Stratton 2-cycle carburetors by engine date code. The 14PZ/14SZ sections separate earlier choke-equipped carburetors from later primer-equipped versions.

Kawasaki coverage includes breather service and carburetor disassembly, cleaning, inspection, and assembly. The manual reserves repair, jet replacement, and adjustment of CARB/EPA-certified emissions carburetors for factory-trained technicians authorized to perform that work.

Ignition, Charging, and Electric Start

Separate ignition schematics cover Briggs & Stratton 2-cycle, Briggs & Stratton 4-cycle, and Kawasaki engines. The Kawasaki electric-start wiring diagram shows the battery, stator, start switch, and starter-motor circuit.

Kawasaki ignition coverage distinguishes separate igniters from later combined igniter/coil assemblies, whose igniters cannot be replaced separately. Tests cover coil resistance, stop switches, the battery, starter, stator, and battery charger.

Electric starter repair is limited to brushes, end caps, and the starter drive. The permanent-magnet fields are not serviceable; damaged housings or armatures require starter replacement.

Kansaki Transaxles and Blade Brake Clutches

Transaxle exploded views show the internal gears, shift components, bushings, and seals. Production date-code notes identify later sealing arrangements, while diagnostic charts address missing ground speeds, drive ratcheting, and failure to freewheel.

The clutch sections distinguish nonserviceable Ogura and Warner 1-piece BBC assemblies from the repairable Warner 2-piece design. On the latter, the upper and lower halves and lower-half bearing can be replaced separately. This distinction helps identify the available repair before ordering a complete clutch.

Wheel-Drive Assembly Cautions

Rear-height-adjuster instructions explain pinion-orientation errors that can prevent forward drive or lock reverse freewheeling. The wheel-drive sections also warn that grease on exposed drive-gear teeth attracts dirt and increases wear.

When working on these mowers, review the manual’s safety precautions for fuel handling, brake-pad dust, and loaded recoil springs.

Preview of Cylinder-Head Torque and Piston-Clearance Data

These examples are a small selection of the engine specifications supplied in the manual.

For the Briggs & Stratton 2-cycle engine, cylinder-head socket cap screws are specified at 12 N·m (110 lb-in), with tightening in 4 N·m (35 lb-in) increments.

For the Kawasaki FC150V, standard piston-to-bore clearance is listed as 0.06–0.10 mm (0.0024–0.0039 in.), with a wear limit of 0.1375 mm (0.0054 in.).

Text Search, Bookmarks, and PDF Contents

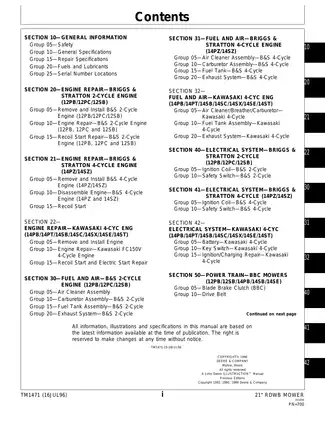

Search and diagram access: Main text is searchable, and embedded bookmarks cover the repair sections, diagnostic sections, and index. Text within image-based diagrams is not searchable. Wiring diagrams have legible component and wire-color labels; enlargement helps with smaller print.

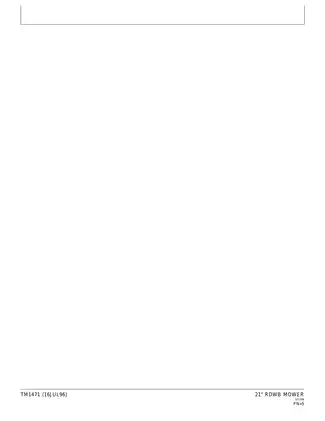

Supplied as one printable, English-language PDF with 716 pages total. This includes one introductory cover page and 715 subsequent manual pages, including the contents, illustrations, index, and blank divider pages.
