1990 John Deere 32-, 36-, 48-, and 52-Inch Commercial Walk-Behind Mower Technical Manual (P/N TM1305)

John Deere Technical Manual TM1305 (17APR90) covers the 1990 commercial walk-behind mower range with 32-, 36-, 48-, and 52-inch decks. Service information is organized by component group, with separate Briggs & Stratton and Kawasaki sections, tool requirements, wear limits, and torque specifications.

• Briggs & Stratton engine repair: Engine removal, cylinder-head and valve service, piston and crankshaft inspection, cylinder reconditioning, and reassembly.

• Kawasaki engine service: Engine removal and installation, oil-pressure and crankcase-vacuum tests, and compression checks, with complete engine repair covered in separate component documentation.

• Fuel systems: Flo-Jet carburetor rebuilding, twin-cylinder carburetor and vacuum fuel-pump service, governor linkage adjustments, and air-cleaner maintenance.

• Electrical diagnosis: Serial-specific wiring diagrams, safety-interlock checks, ignition-coil and TCI tests, charging-system diagnosis, and starter service.

• Powertrain: Reduction gear box disassembly and repair, traction-drive operating diagrams, and Peerless transaxle removal, installation, and an exploded component view.

• Deck and controls: Belt replacement, blade and wheel-brake adjustments, cutting-height setup, blade sharpening and balancing, and spindle-bearing replacement.

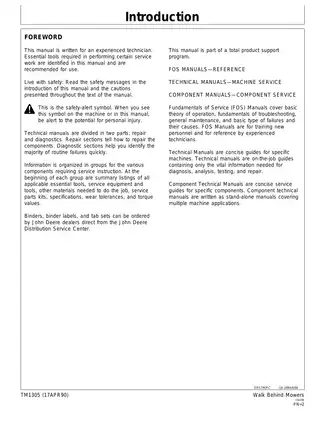

Written for experienced technicians, this manual identifies the special tools and service equipment required for individual jobs.

Briggs & Stratton Overhaul and Kawasaki Coverage

The Briggs & Stratton sections include valve-guide bushing replacement with the JDM-46-17A tool kit, valve-seat reconditioning, valve-spring replacement, and piston-ring wear analysis. Crankshaft inspection treats bent shafts as replacement-only items; separate cutoff instructions apply to replacement crankshafts.

Routine tune-up and lubrication tables include engine-oil and air-cleaner service intervals, with references to the relevant service groups.

Kawasaki repair scope: FB460V and FC540V coverage includes machine-level diagnosis, engine removal and installation, carburetor adjustments, and ignition testing. Complete engine, carburetor, recoil-starter, and electric-starter repairs require the separate CTM-5 component technical manual, which is not included.

Carburetors and Governor Controls

The fuel-system operating diagrams distinguish gravity-feed carburetion from the twin-cylinder engine's vacuum fuel pump. Pump service includes diaphragm inspection and assembly, while the Flo-Jet section covers disassembly, cleaning, inspection, and adjustment.

The twin-cylinder Briggs & Stratton carburetor uses an adjustable high-speed mixture needle through S.N. 102961 and a fixed high-speed jet from S.N. 102962. The governor and carburetor sections distinguish the applicable adjustments.

Interlock Wiring and Starter Diagnosis

Separate safety-interlock test groups cover S.N. —105000, 105001—116000, and 116001—. Matching these groups to the machine helps distinguish switch arrangements and wire colors before tracing no-spark or unexpected-shutdown faults.

The Briggs & Stratton electric-start wiring diagram, Kawasaki electric-start wiring diagram, and ignition-switch connector view support circuit identification. Diagnostic coverage extends to coil-power tests, TCI modules, stator output, and starter current draw.

Kawasaki TCI testing specifies an analog ohmmeter because digital meters produce different readings. Briggs & Stratton starter repair is limited to brushes, end caps, and drive components; the permanent-magnet fields are not serviceable.

Reduction Gear Boxes, Transaxles, and Cutting Decks

Traction-drive diagrams explain the variable-pulley/reduction-box arrangement and the later transaxle drive. Peerless transaxle coverage consists of removal and installation procedures plus an exploded assembly drawing; it does not include a complete internal rebuilding procedure.

The reduction gear box warning links use of 85W140 GL5 on S.N. 112001— units without breather PT8739 to oil-seal leakage. It also warns that mixing lubricants can damage the gear box.

Deck service distinguishes flat-front and center-spindle-forward belt layouts. Spindle-bearing procedures cover pressing, inspection, and assembly with JDG-551, JDG-552, and JDG-553 tooling. The fabricated-tools section supplies details for a brush holder, tang-bending tool, and puller extension.

Before maintenance, disconnect the spark plug wires and, on electric-start models, remove the ignition key to prevent accidental starting.

Selected Engine Clearances and Gear Box Fill Data

These examples are a small sample of the manual's adjustment and lubrication specifications.

For the Briggs & Stratton 253706-0151 engine, cold intake valve-to-tappet clearance is 0.127–0.178 mm (0.005–0.007 in.). The assembled crankshaft end-play specification is 0.051–0.203 mm (0.002–0.008 in.).

The reduction gear box lubrication section lists a refill capacity of 207 mL (7 fl oz) after disassembly.

Text Search, Bookmarks, and PDF Contents

Search and diagram detail: Main text is searchable, with embedded bookmarks for sections and procedures. The cover and some diagram labels are not searchable, and small wiring labels require zooming. One illustration in the lubrication section is missing on PDF p. 33.

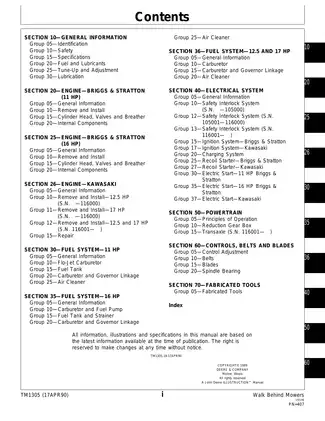

Supplied as one 412-page printable PDF in English: one introductory cover page and 411 pages containing the manual's front matter, service sections, and index. Blank section pages are already included in this total.
