Kawasaki FD620D & FD661D Engine 1996 Factory Service & Repair Manual (P/N 99924-2030-03)

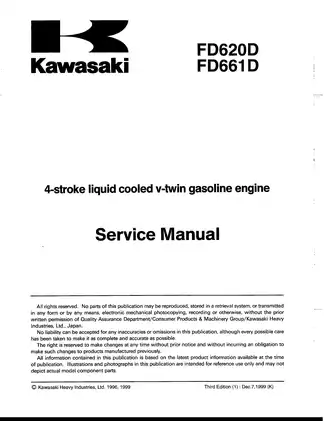

This Kawasaki factory service manual covers 1996–1999 FD620D and FD661D gasoline engines. P/N 99924-2030-03, third edition dated December 7, 1999, includes the integrated FD661D supplement, which must be used with the main chapters for its revised specifications and service procedures.

PDF Text Search, Wiring Detail and Page Count

Search and diagram detail: PDF text search and embedded bookmarks are not available. Small labels in the checked wiring diagrams are readable when enlarged.

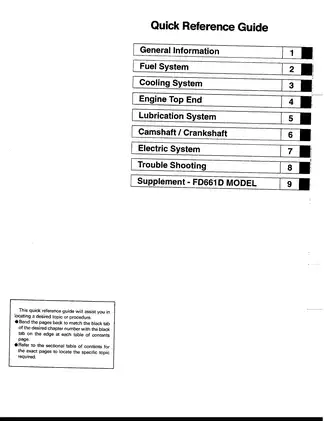

Supplied as one printable English PDF with 166 pages total, including the 24-page FD661D supplement, seven cover/reference/introductory pages, and eight blank pages.

Carburetor, Internal Engine and Electrical Service

These selected service topics provide an overview of the contents. Further examples include breather reed-valve inspection and cooling-fan bearing replacement.

• Fuel and governor: Step-by-step carburetor disassembly and adjustment, float-level inspection, fuel-pump delivery tests, fuel shut-off solenoid testing, and governor-link service.

• Cooling system: Water-pump disassembly and seal service, radiator and cap inspection, thermostat testing, fan-belt adjustment, flushing, air bleeding, and pressure testing.

• Engine top end: Compression testing, cylinder-head removal, valve-clearance adjustment, valve-seat repair, piston and ring inspection, and cylinder boring and honing.

• Camshaft and crankshaft: Crankcase splitting and reassembly, timing-gear alignment, journal-bushing replacement, connecting-rod wear checks, and crankpin resizing data.

• Lubrication system: Engine oil and filter service, oil-pressure measurement, pump-rotor inspection, relief-valve checks, and oil-screen cleaning.

• Electrical diagnosis: Charging, ignition and starter tests, starter-motor overhaul, wiring diagrams, connector views, and engine/starter troubleshooting charts.

The manual is written primarily for trained mechanics in a properly equipped shop, with basic maintenance and repair information for owners who understand tools and workshop procedures.

Repair Planning and Model Differences

Having the mechanical, cooling and lubrication specifications in one reference supports repair planning and wear checks at the bench. Model-specific settings and revised electrical tests help you select the applicable information before teardown.

Carburetor identification: The main fuel chapter lists TEIKEI/FD22K-1A. The supplement specifies TEIKEI/FD22K-1L for FD620D and TEIKEI/FD22K-1K for FD661D, with separate jetting and idle settings.

Fuel-pump coverage consists of testing and replacement; the pump cannot be disassembled for internal repair. The carburetor’s pressed-in fuel inlet valve seat is also nonreplaceable.

Internal Repair and Cooling-System Detail

Dimensioned bushing-tool drawings accompany crankshaft journal-bushing replacement. Cylinder boring and honing sections provide oversize finishing data, while crankpin resizing includes dimensions for an undersize connecting rod.

Valve-seat inspection views show contact patterns alongside cutter identification and repair limits. Exploded assembly views identify tightening torques and lubrication points, with separate tables for component-specific fasteners and general hardware.

Governor and water-pump cautions: The internal governor assembly must be replaced once removed. Water-pump assembly notes address oil-seal damage during shaft installation, while inspection guidance distinguishes mechanical-seal coolant leakage from oil-seal leakage at the drainage passage.

Cooling-system pressure testing supports external leak diagnosis but cannot reliably identify small combustion leaks. The cooling chapter also warns that opening a hot radiator can release pressurized coolant and cause severe burns.

Wiring and Fault Isolation

Separate FD620D and FD661D Wiring Diagrams show circuit differences, including the FD661D ignition relay. Wire Harness connector views, the Engine Oil Flow Chart, Cooling System Pressure Testing illustrations and the Engine Troubleshooting Guide connect component checks with system layouts and symptoms.

Starter diagnosis extends to solenoid circuits, no-load bench testing, brushes, commutators, armatures and the pinion clutch. Igniter resistance charts specify Kawasaki Hand Tester 57001-1394, since readings depend on the meter used.

Valve-Clearance and Charging-Test Examples

The main valve-service chapter specifies cold intake and exhaust valve clearance at 0.25 mm (0.01 in), with the engine at room temperature.

For the revised charging system covered by the supplement, regulated output is 14–15 V at 3,000 rpm. Its charging-coil resistance specification is 0.15–0.23 Ω, checked at room temperature under the electrical-testing precautions.
