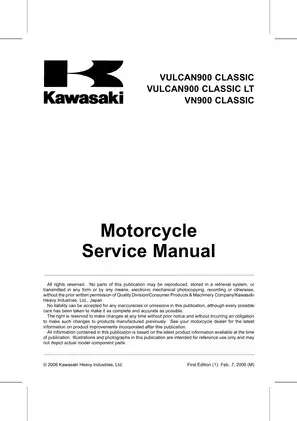

2006–2014 Kawasaki Vulcan 900 Classic & Classic LT Factory Service Manual (P/N 99924-1366-01)

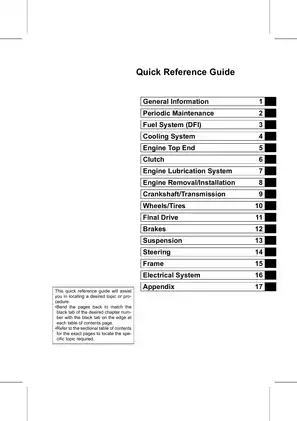

This Kawasaki factory service manual covers the 2006–2014 Vulcan900 Classic, VN900 Classic, and Vulcan900 Classic LT. It is the first edition, issued February 7, 2006, P/N 99924-1366-01, organized into 17 system chapters.

• DFI diagnosis: Self-diagnosis modes, service-code reading and clearing, fuel-pressure and injector tests, vehicle-down sensor checks, and subthrottle valve actuator inspections.

• Engine repair: Engine removal and installation, cylinder-head and valve-seat work, camshaft timing, piston inspection, crankcase separation, and connecting-rod bearing selection.

• Clutch and drivetrain: Clutch disassembly and inspection, transmission shaft and shift-fork service, pulley removal, drive belt replacement, and deflection adjustment.

• Cooling and lubrication: Cooling-system pressure tests, water-pump mechanical seal replacement, thermostat and radiator service, oil-pump removal, and oil-pressure measurement.

• Brakes and chassis: Master cylinder and caliper overhaul, brake bleeding, fork rebuilding, Uni-trak linkage maintenance, and steering stem bearing replacement.

• Electrical systems: Regional wiring diagrams, stator coil and regulator/rectifier tests, ignition diagnosis, starter-motor overhaul, and radiator fan circuit checks.

The manual is written primarily for trained mechanics in a properly equipped shop; owners with basic mechanical knowledge and proper tools can also use its basic maintenance and repair information.

DFI Fault Tracing and Market Differences

The diagnostic sections provide voltage and resistance checks for the main throttle, inlet air pressure, crankshaft, and other sensors. The DFI Diagnosis Flow Chart links fault symptoms to testing, while the self-diagnosis section distinguishes current faults from stored fault history.

Europe and non-Europe versions have different ECU terminal layouts. Separate oxygen-sensor and heater checks apply to Europe models, while California models receive canister, separator, and evaporative emission control procedures. These distinctions help match circuit tests to the motorcycle before sensors or other parts are replaced.

The test pages identify equipment such as Needle Adapter Set 57001-1457. Throttle sensors and the subthrottle valve actuator are factory-set: the manual describes their checks but warns that changing these settings can cause poor performance and require throttle body replacement.

Fuel-system and ignition work requires the manual's precautions for fuel pressure, gasoline fire hazards, and high-voltage testing.

Internal Engine, Clutch, and Transmission Work

Engine top-end coverage extends to compression testing, valve-guide inspection, valve-seat repair, and camshaft chain installation. Shim-selection charts support valve-clearance adjustment, with separate identification of the front and rear camshafts.

Crankshaft procedures include connecting-rod bearing insert selection and main-journal wear inspection. Transmission coverage reaches shaft disassembly, shift-drum service, gear-dog inspection, and the positive neutral finder. The starter torque limiter is inspected and replaced as an assembly rather than disassembled.

The Engine Oil Flow Chart accompanies oil-screen, relief-valve, oil-pump, and pressure-testing sections. Assembly tables and exploded views identify tightening torques, locking agents, and replacement requirements for gaskets, seals, and circlips.

Cooling and Lubrication Service

The Coolant Flow Chart traces coolant circulation alongside pressure-testing, thermostat, and radiator-fan procedures. Water-pump coverage distinguishes impeller and mechanical-seal work from bearing and oil-seal replacement requiring crankcase separation.

Belt Drive, Brakes, and Suspension

Drive Belt Tooth Wear and Damage Patterns distinguish wear conditions, while pulley and coupling sections cover bearing and damper inspection. The belt-handling cautions explain how sharp bending or twisting damages the tensile cords and shortens belt life.

Brake sections address piston and seal inspection, master cylinder rubber parts, disc wear, and hydraulic bleeding. Suspension coverage includes fork disassembly and oil-seal installation, swingarm bearings, linkage lubrication, and rear shock inspection and replacement.

The steering chapter includes geometry specifications, adjustment, stem inspection, and bearing installation. Classic LT-specific frame sections cover the windshield, saddlebags, and backrest.

Charging, Ignition, and Circuit References

Charging-system tests distinguish stator winding faults from regulator/rectifier problems using resistance and output checks. Ignition coverage adds coil and crankshaft-sensor peak-voltage tests; the starter section includes brush, commutator, and relay inspection.

Wiring diagrams are provided for US/Canada, Europe, and Australia configurations. Cable, Wire and Hose Routing views support correct routing after disassembly.

A Preview of Valve, Spark Plug, and Oil Specifications

These examples are a small selection of the manual's maintenance specifications. With the engine cold at room temperature, intake valve clearance is 0.10–0.15 mm and exhaust clearance is 0.20–0.25 mm.

The specified spark plug gap is 0.8–0.9 mm. The oil-change section recommends SAE 10W-40 for most conditions, with guidance on viscosity changes for different ambient temperatures.

PDF Search, Bookmarks, and Diagram Detail

Finding procedures and circuit labels: The main text supports PDF search, with embedded bookmarks for chapters, procedures, and specification tables. Small wiring labels require zooming; labels embedded in diagram images are not searchable.

The single printable English PDF contains 588 pages: 10 pages of front matter, 577 chapter pages, and one final Model Application page. Nine blank pages and three placeholder pages are already included in that total.
