John Deere Gator HPX, 4x2, 4x4 Technical Manual (P/N TM2195)

• Covers the John Deere Gator HPX 4x2 and HPX 4x4 gas and diesel configurations documented in TM2195, including the Kawasaki FD620D 617 cc two-cylinder gasoline engine and the Yanmar 3TNE68C 784 cc three-cylinder diesel.
• John Deere Technical Manual TM2195, February 2005, North American Version.

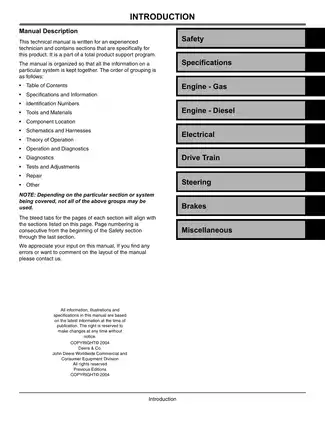

• The 480-page PDF is organized by specifications, component locations, theory of operation, diagnostics, tests and adjustments, repair procedures, electrical schematics, and wiring harness information.
• Factory data includes the 0.25 mm (0.010 in.) cold valve clearance for the FD620D, 3236 ± 100 kPa (469 ± 15 psi) diesel compression reference, 11722 ± 480 kPa (1700 ± 70 psi) diesel injector opening pressure, and model-specific transaxle capacities.

Documented System Assemblies

The manual separates the machine into the gas engine, diesel engine, electrical system, power train, steering, brakes, and chassis/body service. The drive system is a CVT with a gear-driven transaxle, using Forward HI, Forward LO, Neutral, and Reverse. Clutch engagement is specified at 1350 rpm and disengagement at 1250 rpm. Transaxle capacity is 4.0 L (4.25 qt) for 4x2 machines and 4.5 L (4.8 qt) for 4x4 machines, with Low Viscosity HY-GARD meeting JDM J20C. The 4x4 coverage goes into the MFWD drive shaft, front drive gear case, differential, shift linkage, and related bearings and seals; Trail HPX 4x4-specific procedures also appear in the power-train section.

Steering coverage includes the rack, steering shaft, tie-rod ends, front strut/shock assemblies, wheel bearings, ball joints, and A-arms. The specified toe-out is 20 mm (0.79 in.), while caster and camber are listed as non-adjustable. Brake coverage identifies the four-wheel hydraulic disc system, mechanical disc park brake, DOT3 fluid, and separate 2-wheel-drive and MFWD park-brake hardware.

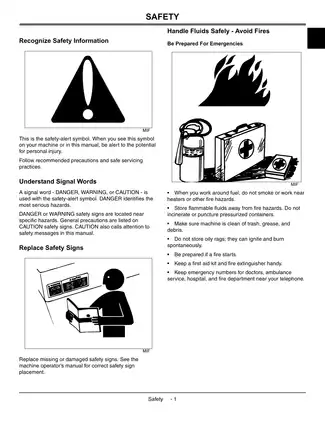

Always follow the manual's safety procedures for battery service, pressurized fuel and cooling-system work, raised-machine support, brake service, rotating components, and fire prevention.

Engine and Maintenance Specifications

The Kawasaki gas section goes well beyond tune-up data. It gives fuel-pump pressure and flow tests, cylinder compression testing, valve-clearance adjustment, crankcase-vacuum and oil-pressure tests, radiator-cap and thermostat checks, and repair data for the carburetor, cylinder head, camshaft, crankshaft, pistons, cylinders, oil pump, water pump, radiator, and starting motor. Gas-engine minimum compression is 1171 kPa (170 psi), minimum oil pressure is 276 kPa (40 psi), and the cooling system including the recovery tank is 5.0 L (5.2 qt).

The Yanmar diesel section adds valve-lift checks, fuel-injection-nozzle testing, transfer-pump pressure and flow checks, radiator bubble and cooling-system pressure tests, injection-pump timing data, timing-gear backlash, bearing clearances, piston-to-cylinder-head clearance, and deep internal engine repair data. The valve-adjustment procedure specifies 0.20 mm (0.008 in.), while injector opening pressure is 11722 ± 480 kPa (1700 ± 70 psi). Starting-motor and 40-amp alternator repair are covered as well.

Named service tools include JDG356 for fuel-pump pressure testing, JDM-59 for gas-engine compression work, JDM70 for valve-spring service, and JDG504 for valve-guide replacement. Diesel fuel-system work references the D01109AA injection-nozzle tester with the D01110AA adapter set and 23622 straight adapter, while JDG529 or JDST28 is specified for water-pump/alternator belt tension.

Diagnostics, Schematics, and Factory Repair Procedures

Electrical diagnosis is unusually detailed. Separate gas and diesel main schematics and harness layouts are followed by circuit-by-circuit operation and diagnostic pages for cranking, ignition, charging, fuel pump and fuel shutoff, glow plugs, oil-pressure/hour-meter circuits, cooling fan and temperature warning, headlights, park brake, and the accessory power port. Attachment coverage includes the auxiliary alternator, backup alarm, hydraulic front implement lift, cargo-box lift, horn, rear marker/brake lights, turn-signal/hazard lighting, and homologated light/horn kit.

Examples of named drawings and schematics include Main Schematic (Gas Engine), Main Schematic (Diesel Engine), Glow Plug Circuit Schematic, Cooling Fan and Temperature Light Circuit Schematic, Hydraulic Front Implement Lift Circuit Schematic, and Cargo Box Lift Circuit Schematic. Harness legends and wire-color codes are included for fault tracing.

Factory procedures that commonly move this work beyond basic owner maintenance include:

• engine removal and installation, cylinder-head repair, gas carburetor repair, diesel injector testing, and internal engine inspection;
• transaxle removal, disassembly and assembly, front drive gearbox repair, MFWD drive-shaft service, and differential disassembly/assembly;
• steering-rack, wheel-bearing, ball-joint and A-arm replacement, plus toe-out adjustment;
• brake bleeding, master-cylinder and caliper repair, brake-pad replacement, and 2WD/MFWD park-brake adjustment and repair.

The manual also records repair traps that matter during teardown. On the FD620D, incorrect intake-manifold gasket orientation can allow coolant to leak into the cylinders. On the diesel engine, loosening the injection-pump camshaft gear bolts alters pump timing; when the pump is removed for service or replacement, the manual specifies a new 0.8 mm shim between the pump and housing. In the CVT, the primary drive clutch is specifically not to be lubricated, and overtorquing the lower swing-arm pivot bolts can damage the bushing and reduce swing-arm flexibility.

For the diesel fuel system, the publication sets a clear scope boundary: fast idle is manufacturer-set and not adjustable, and an injection pump or governor requiring repair is handled as a complete assembly rather than through an internal pump overhaul.
