1995 John Deere F510 and F525 Residential Front Mower Service Manual (P/N TM1475)

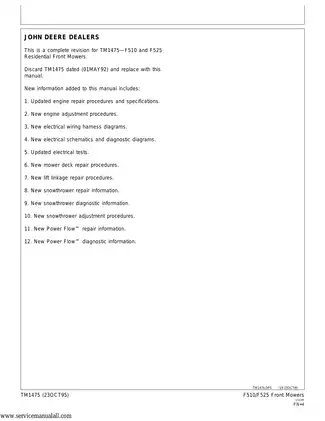

John Deere Technical Manual TM1475, revised 23OCT95, covers the 1995 F510 and F525 residential front mowers with PA420A and PA540A engines. It combines component repair with operation, diagnosis, tests, and adjustments.

• Engine repair: Removal and installation, cylinder-head and valve work, camshaft and ACR inspection, reciprocating balancer service, and internal wear checks.

• Fuel and air: PA420A and PA540A carburetor overhaul, float inspection, breather service, and throttle, choke, and governor adjustments.

• Electrical diagnosis: Starting, charging, ignition, and safety-interlock tests, supported by wiring schematics, harness diagrams, and component-location drawings.

• Hydrostatic drive: Variable-displacement pump, gerotor charge pump, fixed-displacement motor, reduction gear, free-wheeling valve, and differential service.

• Steering and brakes: Steering shaft and gears, wheel bearings, internal wet band brake repair, and control-linkage tests and adjustments.

• Decks and attachments: Spindles, blade drive belts, lift linkage, weight transfer, snowthrower repair, and Power Flow™ blower diagnosis.

Written for experienced technicians, this manual identifies the specialized tools and test equipment required for the documented work.

Engine Repair and Fuel-System Diagnosis

Engine repair covers valve-guide replacement, seat reconditioning, crankshaft end play, and piston-ring inspection. Wear limits, piston clearances, valve-stem diameters, seating angles, and sequenced cylinder-head torque specifications accompany the procedures. Standard metric and inch fastener tables are also included.

The engine configuration charts link AS00, BS00, AS01, and AS02 builds to their service specifications and procedures. They help match valve-train, starter, and hydrostatic components to the correct build before parts or repair procedures are selected.

Compression, crankcase vacuum, oil-pressure, and fuel-pump tests connect symptom charts to component checks. The ACR check helps assess compression-release operation when investigating starting difficulty.

Carburetor instructions distinguish adjustable black floats from nonadjustable white plastic floats. Disassembly cautions explain how striking the float pin can damage its holder.

Hydrostatic Transmission and Differential

The engine and hydrostatic transaxle share an oil reservoir, with separate North American and European lubricant recommendations. Pump inspection covers rotor wear, swash-plate bearings, and charge-relief and anti-cavitation valves; variable-displacement pump service can be performed with the power unit installed.

Hydrostatic Circuit Operation—Neutral and Gear Reduction Assembly Operation drawings explain oil flow and power transmission. Diagnostic charts address limited drive, erratic travel, neutral creep, and failure to return to neutral when braking.

For BS00, AS01, and AS02 configurations of both engines, the differential is serviced as an assembly only. Transmission cleaning cautions also identify the damage that cloth-rag lint can cause.

Electrical Test Points and PTO Service

Serial-specific Cranking Circuit Test Points, electrical schematics, and harness diagrams distinguish switch and relay arrangements before tests are selected. Charging-system coverage includes regulated output, stator output, battery load, and starter current-draw tests.

Ogura and Warner PTO clutches are covered. The Warner clutch requires assembly replacement if components other than its springs and locknuts are damaged. PTO clutch adjustment and break-in are designated dealer-only work.

Working on these mowers involves heavy rotating parts and pressurized hydraulics. The manual's safety precautions address equipment support, electrical isolation, and fluid-injection hazards.

Mower Decks, Snowthrower, and Power Flow™

Deck repair separates the spindle designs, including a spindle cross-section for the larger F525 deck. It also covers model-specific lift linkage, pivoting jacksheaves, and belt-routing changes.

The 38-inch snowthrower sections cover its drive shaft, chain, chute, lift mechanism, and optional electric spout kit. Power Flow™ coverage includes rotors, idlers, blower housings, and hopper mounting, with diagnosis for noise, vibration, and poor rotor speed. Weight-transfer coverage includes the torsion-spring and cable linkage.

Examples of Valve-Clearance and ACR Data

These valve-train values are a small sample of the manual's adjustment and diagnostic specifications.

For both PA420A and PA540A engines, cold intake and exhaust valve clearance is 0.15 mm (0.006 in.). The related ACR check following valve adjustment specifies at least 0.25 mm (0.01 in.) of exhaust-valve movement, linking the clearance setting to compression-release assessment.

Searchable Text, Bookmarks, and Wiring Detail

Text search and diagram detail: Main text supports PDF search, and embedded bookmarks cover the repair and diagnostic sections. Many diagram labels are not searchable. Small wiring labels require zooming for comfortable reading.

Supplied as one printable, 571-page PDF in English. The total includes the cover, blank pages, and 12 additional letter-size panel views of four oversized wiring drawings.
