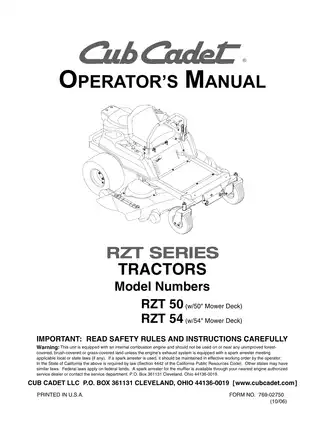

Cub Cadet RZT 50 / RZT 54 (2006) Zero-Turn Tractor & Engine Manual Set (P/N 769-02750)

The Cub Cadet manual covers tractor operation, drive adjustments, and mower deck service. It refers owners to the included Kawasaki manual for engine maintenance procedures and service intervals.

Cub Cadet directs internal hydrostatic transmission service to its dealers. The Kawasaki manual covers routine engine service and symptom-based troubleshooting. Its wiring diagram is limited to the engine circuit.

PDF Search, Bookmarks, and Diagram Detail

Text search and navigation. The tractor instructions and warranty text are searchable. In the reproduced Kawasaki pages, search covers the printed page numbers only. The embedded bookmarks point to the opening pages. Zooming in makes the small key-switch labels and contact table in the engine wiring diagram readable.

The download is one printable, English-language 57-page PDF. The total includes the shared page where the Kawasaki material begins, four warranty pages, and one supplementary front page. The shared page is counted once.

Tractor Operation, Deck Service, and Kawasaki Maintenance

These selected topics show what the manuals cover. The tractor manual also explains front caster and pivot axle lubrication and how to return the tractor to service after storage.

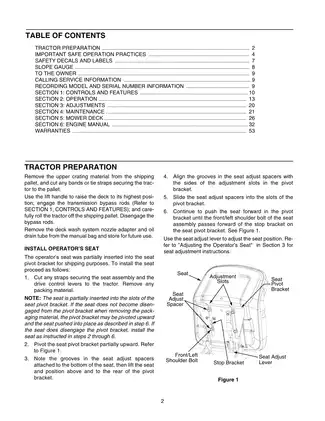

• Controls and interlocks. Seat and drive-lever setup, electric PTO operation, hour-meter indicators, and functional checks of the seat, parking brake, and reverse-travel interlocks.
• Hydrostatic drive. Neutral-creep and high-speed tracking adjustments, transmission drive-belt replacement, bypass-rod operation, and RZT 54 expansion-reservoir checks.
• Mower decks. Removal and installation, side-to-side and front-to-back leveling, gauge-wheel and roller adjustment, blade service, and spindle lubrication.
• Kawasaki engines. Oil and filter service, throttle and choke cable adjustments, air-cleaner maintenance, spark-plug service, and cooling-system cleaning.
• Electrical checks. Battery charging and state-of-charge data, tractor fuse checks, and the Kawasaki charging-coil diagram with ignition, starter, and voltage-regulator connections.
• Troubleshooting and storage. Engine starting and low-output troubleshooting tables, periodic maintenance charts, fuel stabilization and draining, and seasonal storage procedures.

The manuals suit tractor owners and operators who need illustrated instructions for routine upkeep, setup, and basic checks.

Controls, Slopes, and Identification

The console illustrations show where the controls and indicators are located. A slope gauge accompanies the guidance on terrain assessment. The chassis identification-plate illustration and the engine serial-number view help owners identify their equipment before requesting service or parts.

Hydrostatic Drive and Tracking

Neutral creep is addressed through the transmission control rods. Persistent high-speed tracking calls for a control-lever stop-bolt adjustment after tire-pressure and creep checks. That distinction helps owners match the symptom to the documented adjustment before assuming an internal transmission fault.

The bypass rods allow the tractor to be moved by hand. The manual warns that towing can damage the transmissions even with the rods engaged. A separate illustration shows the transmission drive-belt routing.

Deck Service and Model Differences

The RZT 50 uses gauge wheels. The RZT 54 combines front gauge wheels with rear rollers, and its installation notes show how the belt passes relative to the transmission breather hoses. The tractor manual’s Figures 1–40 include separate deck-belt layouts and front-to-back leveling views.

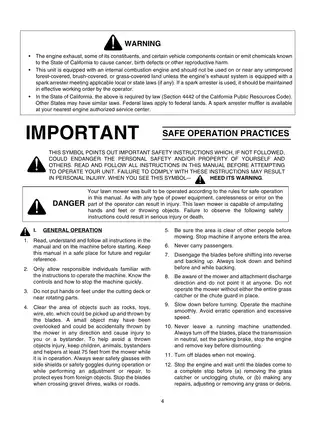

The deck section identifies the support pins and front hanger and covers blade balance, blade orientation, and use of the deck-wash nozzle. It warns that engaging the deck while it is lowered into grass can damage the V-belt and electric PTO clutch. The service precautions address rotating blades, hot exhaust parts, and accidental starting.

Kawasaki Maintenance and Wiring

The engine tables distinguish oil capacities with and without filter removal. The RZT 54’s FH721V has its own oil-cooler maintenance instructions. Kawasaki illustrates both linked and separate choke controls, and the Cub Cadet tractors use a separate choke knob.

The troubleshooting tables address fuel delivery, ignition, compression, and overheating. The fuel filter and pump are replacement-only components. Engine-speed adjustments and tasks such as valve-clearance checks are assigned to an authorized Kawasaki dealer.

The 12 V–13 A charging-coil diagram shows key-switch contact positions and the optional oil-pressure warning components.

Spark Plug and Reservoir Specification Examples

For the FH661V and FH721V, Kawasaki lists NGK BPR4ES spark plugs with a 0.030 in. (0.75 mm) gap and a tightening torque of 16 ft-lb (22 N·m).

For the RZT 54, Cub Cadet specifies 20W50 motor oil if leakage makes it necessary to top up the transmission expansion reservoir. The level check is specified for fully cooled transmission oil before starting the tractor.
