2002-2004 Cub Cadet 5234 / 5252 / 5254 Service Manual (125 P.)

Structured Reference Factory Manual: Cub Cadet 5000 Series 5252, 5234, 5254 Compact Tractor - Service Documentation Library-Master

System-Coverage: Cub Cadet 5234, 5252, 5254 Domestic Series 5000 (2002-2004) // Model-Portfolio: Compact tractor hydraulics and drivetrain systems / MFD and rear axle assemblies Logic // Reference-Category: Complete technical service resource covering hydrostatic transmission, steering, and mechanical systems.

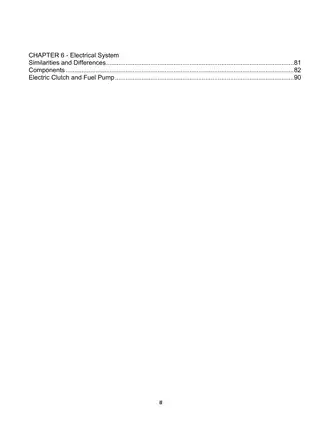

Organized into dedicated modules for the 125-page service documentation, covering Chapter 1 (Hydraulics: Standard systems, hydrostatic drive operation, external checks, auxiliary pump, steering pump and cylinder, lift cylinder control valve, and loader valve), connecting to Chapter 2 (MFD: Identification, removal, installation, in-frame drop axle service, and bench repair procedures), extending to Chapter 3 (Rear Axle: Preparation and axle assembly procedures), progressing through Chapter 4 (Deck Adapter Kit: Hanger bracket mounting and deck connection), advancing to Chapter 5 (Dash and Steering: Panel removal, pump identification for Sauer and Ross units), and concluding with Chapter 6 (Electrical: Component descriptions, circuit operation, and safety systems).

Timing procedures are documented for hydrostatic drive diagnostic testing, auxiliary pump flow and pressure evaluation, and steering system performance confirmation. Technical notes are provided for neutral control adjustment, brake pedal alignment, and differential lock cable tensioning. Quality checks are addressed for hydraulic fluid filtration, seal inspection at axle housings, and bearing integrity assessment. The MFD section documents identification criteria for distinguishing between Series 5000 and Series 7000 units, including pumpkin housing width, flange configuration, and input shaft rotation direction. The transmission disassembly chapter addresses PTO system component separation, spiral bevel gear keying, high-low shift collar orientation, and primary shaft removal methodology.

Repair procedures are structured around component removal sequences with notation of fastener sizes and torque specifications. The document includes torque specifications for the MFD to ensure proper fastener security across the drive flange assembly, perimeter bolts, kingpin housing interconnections, axle cover attachment, and steering cylinder mounting, with specifications ranging from 18-25 Nm through 362 Nm depending on component type. Hydraulic pressure testing reference data guides technicians through charge pressure confirmation (minimum 30 PSI), auxiliary pump output evaluation (approximately 3-4.6 GPM), and steering unit relief valve pressure range (1,087-1,160 PSI). Fluid capacity specifications identify the transmission sump requirement of approximately 5.0 gallons (19.0 liters) with Cub Cadet Hydraulic Drive System Fluid Plus, and the MFD total lube capacity of approximately 82 fl. oz. (2.37 liters) with 85W140 gear lube.

The document provides comprehensive reference data for the hydrostatic drive system (Hydrogear model BDU-21L-400), including variable displacement pump operation, fixed displacement motor function, and charge pressure maintenance through the auxiliary pump (Sauer-Danfoss SNP 1/2.6 S). Steering system documentation describes the gerotor pump configuration, spool and sleeve assembly, leaf spring functionality, and priority valve operation in both Sauer OSPM 63 PB and Ross steering unit designs. The lift cylinder control valve section documents single-acting cylinder operation, mechanical linkage ratios (10:1 and 3:1 travel ratios), and category 1 three-point hitch lift capacity of 950 lbs. at 24 inches behind the hitch point.

System-Specific Technical Content

The reference material documents operational characteristics across multiple hydraulic circuits: hydrostatic drive circuit with charge pressure maintenance, steering circuit with priority operation, and lift cylinder circuit with pressure relief configuration. Diagnostic troubleshooting methodology addresses symptoms including drive creep at neutral, inadequate ground speed, brake drag conditions, and loss of drive in single direction, with corresponding investigation procedures. External check procedures describe neutral control linkage verification, hydrostatic drive pedal travel confirmation, brake linkage adjustment, and brake caliper pull-off spring inspection. The MFD section identifies three distinct unit configurations (Cub Cadet Series 5000, Cub Cadet Series 7000, and outsourced Series 7000) through visual characteristics including octagonal pumpkin housing dimensions, mounting bracket configuration, flange stud quantity, and axle extension measurement. Bench repair methodology for the MFD includes drop axle housing service with drop axle cover removal, axle seal and bearing extraction, kingpin shaft removal, and differential assembly disassembly with cross shaft and miter gear component separation.

The transmission disassembly documentation describes the PTO system hierarchy with 2,000 RPM front output, 540 RPM rear output, and electric PTO clutch engagement mechanism. The spiral pinion gear and spiral bevel gear relationship, including backlash adjustment through flat washer thickness variation (.005", .015", .030"), is comprehensively detailed. High-low shift mechanism documentation addresses the 34-tooth low-range spur gear, 19-tooth high-range spur gear, 12-tooth low-range pinion gear, shift collar color-coding (yellow zinc finish and silver finish sides), and actuator shaft orientation requirements.

Brake adjustment procedures document 0.010" feeler gauge application between brake rotors and pads, caliper adjustment nut tensioning, and ferrule threaded positioning with four-turn advancement specification. Differential lock cable adjustment references jam nut tensioning at the left side running board mounting bracket. Neutral control adjustment describes shoulder screw positioning to eliminate wheel creep during engine operation with differential lock engaged, and hydro control rod ferrule placement against the pedal shaft slot front edge.

The steering pump removal and installation section distinguishes between Sauer (round body with O-ring bottom fittings) and Ross (square body with flare bottom fittings) designs, documenting "P", "T", "E", "R", "L" port functions and hydraulic line routing specifications. Electrical system documentation describes safety circuit logic including seat switch integration, brake switch contact sets, reverse safety override, PTO clutch engagement conditions, and after-fire solenoid control. Gasoline and diesel engine variations are addressed with magneto ground kill wire, stop solenoid configuration, charging system regulator-rectifier modules, and tachometer signal source differences (ignition system versus hall-effect sender).

The document provides systematic guidance for technicians evaluating hydraulic system performance without introducing repair methodology into the descriptive framework, establishing reference pathways for diagnostic investigation and component specification verification across all major tractor systems.
