2004 Cub Cadet LT 1000 Series Lawn Tractor Service & Maintenance Manual
This comprehensive service and maintenance manual provides detailed repair instructions, diagrams, and specifications for Cub Cadet LT 1042, LT 1045, LT 1046, and LT 1050 Hydrostatic Lawn Tractors.
Manual Preview

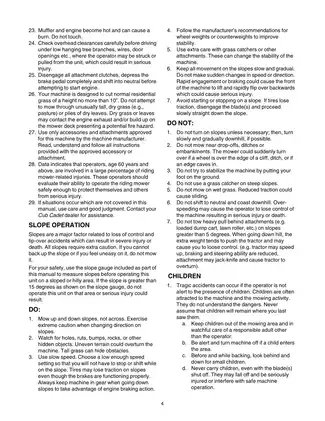

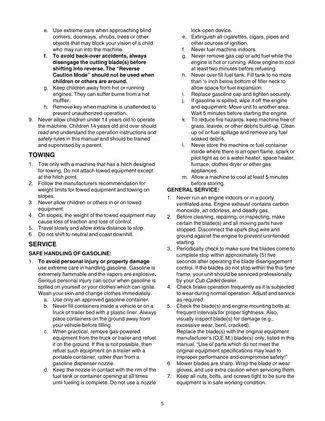

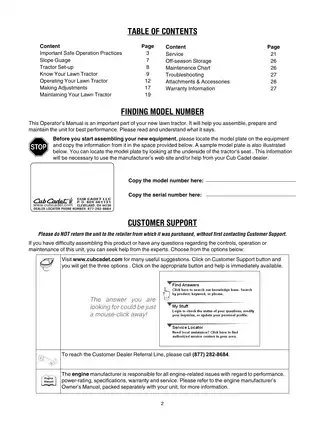

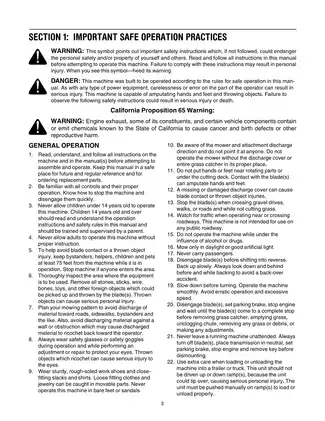

Sample pages from the 2004 Cub Cadet LT 1000 Series Lawn Tractor Service & Maintenance Manual manual
Purchase & Download
Models Covered & Key Technical Specifications
Advanced Factory Service Manual: Cub Cadet LT 1000 Series Lawn Tractors (2004 Edition) - Diagnostic-Reference
Cub Cadet LT 1042, LT 1045, LT 1046, LT 1050 (769-01514) - 2004 Edition Engineering Blueprint Overview | Library • Designated Capacity Limits: 3.5 gallons for fuel capacity ensures extended operation cycles. • Primary Current Rating: 20 Amp fuses are standardized to protect the electrical system. • Advanced Speed Rating: 5.2 mph is calibrated to allow for controlled mowing in various conditions. • Design System Volume: 76 oz. capacity for the transmission fluid requires careful monitoring and replacement. • Engineered Specifications: 19 HP power output at 3600 RPM signifies robust performance capabilities. • Certified Weight: Approximately 498 lb. signifies the substantial build quality of the tractor.
Professional Workshop Service Manual & Technical Specifications
Advanced Factory Service Manual: Cub Cadet LT 1000 Series Lawn Tractors (2004 Edition) Diagnostic-Reference
Model-Specs: Cub Cadet LT1042, LT1045, LT1046, LT1050 // System-Identifier: Lawn Tractor / Hydrostatic Logic // Engine-Type: Kohler Courage SV590, SV600
| Identifier | Value | Architecture |
|---|---|---|
| Fuel Tank | 13.2 liters (3.5 gallons) | Standard |
| Engine Crankcase (w/ filter) | 1.5 liters (50.75 oz) | Serviceable |
| Transmission | 2.25 liters (76 oz) | Required Maintenance |
| Make and Model | Hydro-Gear 311-0510 | Specific Component |
| Gear Ratio | 22.2:1 | Performance Metric |
| Forward Speed | 0 m.p.h. - 5.2 m.p.h. | Operational Range |
| Reverse Speed | 0 m.p.h. - 2.3 m.p.h. | Operational Range |
| Engine Displacement | 597 cc (36.4 cubic in.) | Core Specification |
| Engine Power | 14.1 kW (19 HP) @3600 RPM | Performance Metric |
| Maximum Torque | 48.8 Nm (36 ft. lb.) @2200 RPM | Performance Metric |
| Compression Ratio | 8.5:1 | Engine Performance |
| Engine Speed (governed) | 1500 RPM (± 75 RPM) | Operational Parameter |
| Spark Plug Gap | .030 in. (.76 mm) | Electrical Spec |
| System Voltage | 12-volt Negative Ground | Electrical Spec |
| Battery | 190 CCA (sealed) | Electrical Spec |
| Alternator | 16 Amp Regulated | Electrical Spec |
| Fuse | 20 Amp | Electrical Spec |
| Headlights | Incandescent | Lighting Spec |
| Brakes | Single Disc (Dry) | Braking System |
| Cutting Width, Deck | 42 in. (106.7 cm) | Operational Spec |
| Wheelbase | 46 in. (116.8 cm) | Chassis Spec |
| Length, over all | 68 in. (172.7 cm) | Physical Dimension |
| Width, over all | 45 in. (114.3 cm) | Physical Dimension |
| Height, over all | 43 in. (109.2 cm) | Physical Dimension |
| Ground Clearance | 4.5 in. (11.4 cm) | Operational Spec |
| Turning Radius | 18 in. (46 cm) | Maneuverability Spec |
| Weight (approximate) | 498 lb. (225.9 kg) | Physical Spec |
Systematizing the service groups into comprehensive sections, this manual documents various procedures and specifications for the Cub Cadet Series 1000 lawn tractors. It covers essential information from initial setup and safety protocols to detailed maintenance schedules and troubleshooting guides.
Technically calling for...procedures including engine maintenance, tire pressure checks, and safety interlock system operation are clearly outlined.
Technically calling for...specs including tire inflation pressures and engine oil levels are detailed for optimal performance.
Technically calling for...systems such as the hydrostatic transmission and electrical system are described with operational guidelines.
This manual documents torque specifications for the blade spindle nut to ensure proper thermal expansion compensation.
