Kohler Courage SV470-600 Service Manual 2002-2006

Comprehensive service manual for Kohler Courage SV470, SV480, SV530, SV540, SV590, and SV600 engines (2002-2006). Covers disassembly, reassembly, and inspection procedures. Ref: TP-2548.

4.7starstarstarstarstar_half(3)
★ BEST PRICE
visibility Preview Available

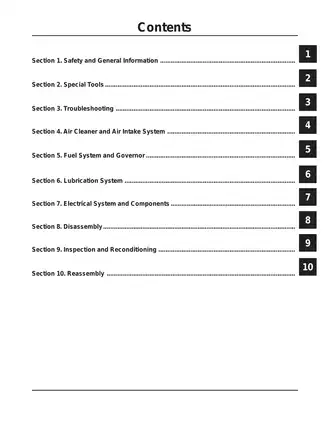

Kohler Kohler Courage SV470-600 Service Manual 2002-2006 manual page preview - page 1 of 112

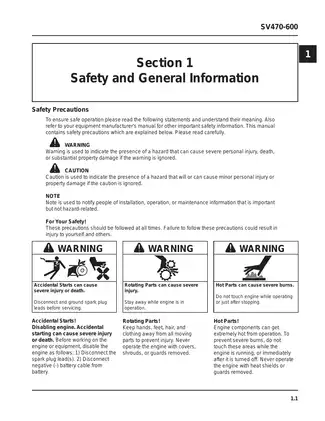

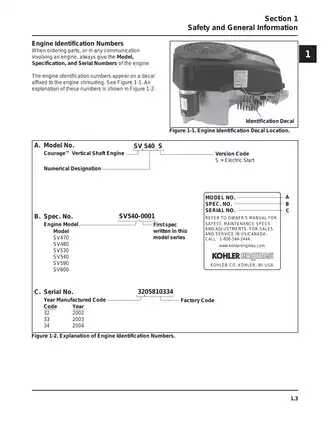

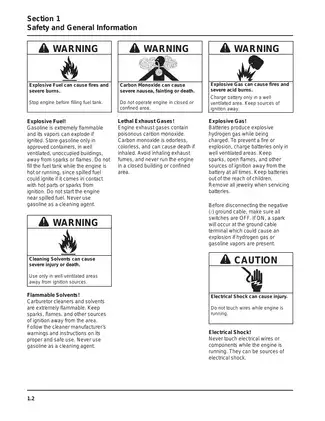

Sample pages from the Kohler Courage SV470-600 Service Manual 2002-2006 manual

Kohler Kohler Courage SV470-600 Service Manual 2002-2006 manual preview page 1 - thumbnail
Kohler Kohler Courage SV470-600 Service Manual 2002-2006 manual preview page 2 - thumbnail
info_outline Click thumbnails to preview different pages
$12.48 (incl. VAT) Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal
Technical Safety Notice
keyboard_arrow_down

This official OEM document is intended for professional technicians and skilled operators. Performing service on mechanical equipment involves inherent risks. By purchasing, you acknowledge that RepairLoader provides original manufacturer data for informational purposes. Always prioritize safety: use correct tools, wear protective gear, and consult a certified professional if you are uncertain of any procedure.

Kohler Models Covered & Key Technical Specifications

Models: SV470, SV480, SV530, SV540, SV590, SV600
Sub-models / Variants: Vertical Crankshaft, Electric Start
Build Years: 2002–2006
Serial Numbers: 32 (2002), 33 (2003), 34 (2004)
Technical Data:

  • Engine Displacement: 477 cc (SV470, SV480), 535 cc (SV530, SV540), 597 cc (SV590, SV600)
  • Peak Torque: 34.3 N·m (25.0 ft. lb.) at 2600 RPM (SV470) up to 44.2 N·m (32.0 ft. lb.) at 2800 RPM (SV600)
  • Compression Ratio: 8.5:1
  • Cylinder Bore I.D.: 84.000–84.025 mm (SV470, SV480) up to 94.010–94.035 mm (SV590, SV600)
  • Oil Capacity (with filter): 1.5 L (1.6 qt.)
  • Spark Plug Gap: 0.76 mm (0.030 in.)
  • Flywheel Retaining Screw Torque: 66.5 N·m (588 in. lb.)
  • Cylinder Head Fastener Torque: 20.5, 41.0 N·m (180, 360 in. lb.)
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
30615 / Douglas Scott
File Size:
14.50 MB
File Type:
PDF
Language:
English
Pages:
112
Printable:
Yes
Category:
Gasoline-Engines
Last updated / verified
May 29, 2025

Kohler Manual Features & Content Preview

Kohler Courage SV470-600 Service Documentation

  • Covers 2002–2006 Kohler Courage SV470, SV480, SV530, SV540, SV590, and SV600 vertical crankshaft engines, including electric start configurations
  • Official Kohler OEM publication TP-2548
  • Contains 40+ high-resolution exploded-view diagrams, torque specification tables for critical fasteners, and diagnostic flow charts for fuel and electrical systems
  • Downloads to your account within seconds of checkout
  • Re-download the file any time, no expiration
  • Indexed PDF search covers every chapter and appendix
  • OCR text layer lets you jump to a torque spec by keyword
  • This official 112-page manual is the primary reference for the complete disassembly, inspection, and reassembly of the Kohler Courage vertical shaft engine series.

Engine Technical Coverage

This Kohler SV470-600 document outlines fundamental mechanical systems including the lubrication circuit, fuel management, and governed speed control. Chapter content progresses through safety requirements, special tool identification, and detailed diagnostic guides for common issues such as hard starting or engine overheating. The text provides a structural overview of the air intake system, ignition module integration, and the electric starter drive mechanism, tailored for those maintaining these small engine assemblies.

Precision Specifications and Data

The technical sections provide precise reference values for internal engine clearance and fastener torque settings. Cylinder head bolt torque values are documented in a multi-stage sequence, with final-stage specifications of 41.0 N·m (360 in. lb.). Intake valve guide I.D. is specified at 6.038–6.058 mm for optimal running clearance. The what an OEM service publication covers includes detailed tolerances for the crankshaft, connecting rod journals, and piston ring end gaps to aid in reconditioning. Flywheel retaining screw torque is specified at 66.5 N·m (588 in. lb.) in the engine assembly data. Note: All service data shown here is for reference only — qualified technicians and the original OEM documentation remain the authoritative source for any hands-on work.

An official 112-page Kohler OEM workshop manual covering the 2002–2006 SV470–600 vertical crankshaft engine series, documenting disassembly, internal clearances, electrical testing, and torque specifications for professional or owner maintenance projects.

Manual FAQ, Purchase & Download Details

Can I find oil capacity and viscosity charts in this service manual? keyboard_arrow_down

Manual contains specification tables that list oil capacities, service class requirements, and recommended viscosity grades based on operational temperature ranges.

Which chapters contain technical references for electrical systems and connector configurations? keyboard_arrow_down

Section 7 covers the electrical system and components for the listed engine models. This section includes technical data and references for electrical hardware.

What information regarding the edition, revision, and publication number is included in this document? keyboard_arrow_down

Document is referenced as publication TP-2548. It provides service information for the Kohler Courage SV470-600 engine series covering the 2002-2006 production years.

Does the manual contain exploded views or component breakdown illustrations? keyboard_arrow_down

Document includes technical diagrams and figures throughout the sections to illustrate engine components and dimensional data.
