2001–2006 Cub Cadet 1000/1500 Series Riding Tractor Service & Repair Manual (PN 769-02100)

This MTD Products service manual covers Cub Cadet 1000 and 1500 Series riding tractors listed for 2001–2006. Form No. 769-02100 (1/2006) concentrates on 2005/2006 service procedures and documents changes to earlier configurations.

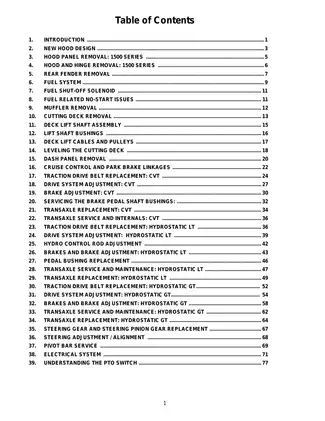

Text search and wiring detail: The main text is searchable, with 39 embedded section bookmarks. Wiring-sheet labels are not searchable. Small labels require enlargement, and some RMC wire codes and part numbers remain difficult to read.

• Fuel and engine support: Fuel-system layouts, shut-off solenoid diagnosis, fuel-related no-start checks, and muffler removal for different hood and engine arrangements.

• CVT drive: Two-belt replacement, variable speed pulley inspection, drive-system adjustment, brake caliper adjustment, and complete transaxle removal and installation.

• Hydrostatic drive: Separate LT and GT procedures for traction belts, electric PTO clutch removal, control linkages, neutral adjustment, transaxle replacement, fluid service, and air purging.

• Deck and lift: Cutting deck removal, lift shaft and bushing replacement, deck lift cables and pulleys, and side-to-side and front-to-rear leveling.

• Steering and controls: Steering gear and pinion replacement, toe-in alignment, pivot bar service, dash panel removal, and cruise control and parking brake linkages.

• Electrical diagnosis: Reverse Caution Mode (RMC) and pre-RMC circuits, PTO switch testing, seat/brake/reverse safety switches, connector checks, and starter-circuit voltage-drop tests.

It is intended for trained technicians with experience in outdoor power equipment service and repair.

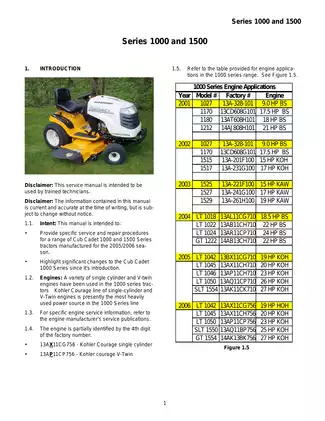

Engine Applications, Factory Numbers, and Deck Variants

Application tables connect models such as the LT 1042, LT 1045, LT 1050, and SLT 1554 to factory numbers and Kohler, Briggs & Stratton, or Kawasaki engines. Kohler Courage single-cylinder and V-twin engines receive identification notes; detailed engine service requires the engine manufacturer's publications.

Deck information covers 38- to 54-inch configurations and lists earlier 27.5-inch applications. The 1000 Series Deck Applications chart links deck codes to belt numbers. Multiple 42-inch deck versions make the tractor's serial number important when selecting parts or service information.

CVT and Hydro-Gear Transaxle Repair

The LT 1040 uses the two-belt CVT arrangement. Hydro-Gear 310-0510 units are identified with 20-inch rear tires, 314-0610 units with 22-inch rear tires, and the heavier 320-3000 transaxle with GT models. These distinctions help match repair procedures and replacement parts to the installed drive system.

Hydrostatic diagnosis separates belt slip, brake drag, linkage problems, and relief-valve travel from internal transaxle faults. GT service extends to the charge pump, gerotor, filter, charge manifold, and check valve.

Complete internal repair is referred to separate Hydro-Gear manuals BLN-52261 for LT units and BLN-52359 for GT units. The CVT section cautions that overtightening the input-pulley nut can shear the transaxle input shaft.

Deck, Chassis, and Fuel-System Access

Coverage begins with hood designs and hinge mechanisms, then fender removal and rear assembly access. It distinguishes under-hood and rear-mounted fuel tanks, with illustrated fuel-line routing and fuel shut-off solenoid coverage.

Deck illustrations compare U-bolt and J-bolt front stabilizers. Worn lift shaft bushings are linked to deck-leveling problems, with inspection guidance and lubrication cautions. Component torque references and adjustment specifications appear alongside the relevant procedures.

RMC, PTO, and Starting-Circuit Diagnosis

The RMC eight-pin connector view and input-by-input checks help distinguish a safety-switch or harness fault from a failed module before replacement. Wiring diagrams include the D17 circuit, an RMC schematic, and an RMC version with the starter solenoid built into the starter. The text also identifies the starter-mounted solenoid used on Kohler Command engines.

Ground-side and power-side voltage-drop tests address slow cranking and poor connections. The electrical section warns that an ordinary incandescent test light can damage the RMC module and specifies high-impedance test equipment.

Follow the manual's precautions for raised tractors, fuel handling, and electrical isolation, and check safety-interlock operation after repairs.

Printable PDF and Included Pages

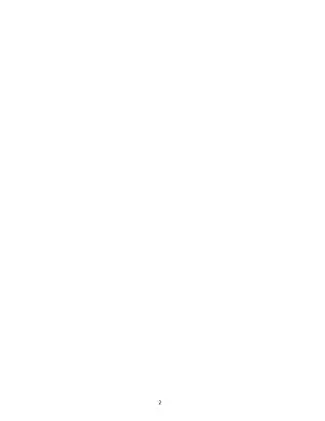

One printable English-language file: a 91-page PDF, comprising 86 numbered technical pages (including three wiring-diagram pages), one cover, one contents page, two blank pages, and one page-number-only separator. All are included in the total.
