Dodge RAM 1500/2500/3500 Workshop Manual – 1994–2001

This workshop manual provides factory service information for Dodge RAM 1500, 2500, and 3500 trucks, including 2WD, 4WD, Club Cab, Quad Cab, Regular Cab, and Cab Chassis configurations. Its introductory applicability note lists 1994–2001; the service information is based on the 2001 North America edition, with model-year cosmetic and electrical differences to consider.

Text Search, Bookmarks and Wiring Detail

Search and circuit navigation: Service text is searchable, but many wiring sheets have no searchable text. Embedded bookmarks provide chapter and subsection navigation. Small wiring labels, connector numbers, and wire codes are best read at higher zoom.

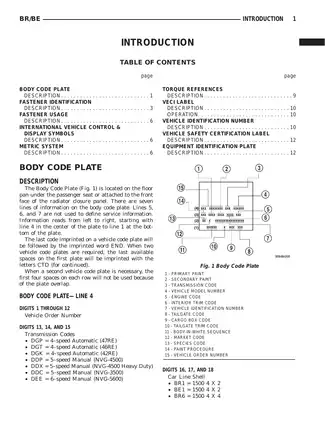

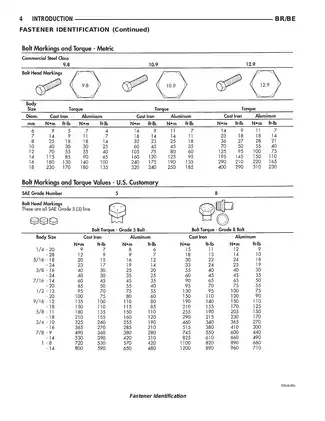

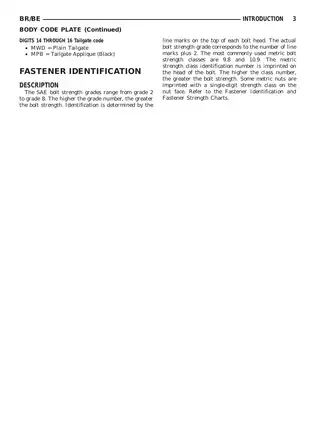

Supplied as one printable, 2,889-page PDF in English, including a one-page introductory index, 20 blank divider pages, and two feedback/mailing pages.

Engine, Drivetrain and Electrical Service

These selected service topics outline part of the manual’s coverage. Further examples include A/C performance testing and body gap-and-flush measurements.

• Engine repair: Step-by-step cylinder-head removal and installation, valvetrain inspection, crankshaft and piston service, and gasoline-engine timing-chain procedures.

• Diesel fuel system: Transfer-pump pressure and volume tests, Bosch VP44 removal and installation, injector testing, and fuel-system air bleeding.

• Transmission and clutch: Manual gearbox overhaul, automatic-transmission hydraulic tests, band adjustment, valve-body service, clutch repair, and transfer-case disassembly.

• Axles and driveline: Differential overhaul, pinion-depth and bearing-preload adjustment, backlash measurement, gear-contact-pattern checks, and propeller-shaft service.

• Brakes and chassis: Hydraulic brake diagnosis and bleeding, caliper and drum-brake service, wheel alignment, hub/bearing replacement, and steering-gear repair.

• Electrical diagnosis: Charging and starting tests, system wiring diagrams, connector pin-outs, splice locations, and diagnostic trouble-code descriptions.

• Maintenance and cooling: Application-specific maintenance schedules, fluid capacities, specified lubricants, cooling-system pressure tests, thermostat checks, and water-pump replacement.

This manual is suited to technicians with drivetrain overhaul experience and access to workshop measuring equipment; its electronic diagnostic procedures also call for a DRB scan tool.

Gasoline Engines and the 24-Valve Cummins

Gasoline-engine chapters provide multistage cylinder-head bolt tightening sequences and internal wear specifications. The diesel procedures address the 24-valve Cummins with Bosch VP44 injection, with additional coverage of valve-lash adjustment, piston grading, and mechanical and exhaust-smoke diagnosis.

VP44 coverage includes pump replacement and timing-error checks. Its integral Fuel Pump Control Module is identified as non-serviceable.

Gearbox Variants and Lubricant Requirements

The NV4500 section distinguishes standard and heavy-duty internals, including input-shaft, output-shaft, and fifth-gear differences. NV5600 overhaul calls for dedicated handling and build fixtures.

Mopar ATF+4 Type 9602 is listed for automatic-transmission and transfer-case service. The NV4500 assembly instructions specify Castrol Syntorq; its diagnosis section links incorrect lubricant to internal binding and gear/synchronizer damage.

Differential Setup and Chassis Work

For the 216FBI front axle, the manual explains pinion-depth and differential-case shim selection alongside bearing-preload and gear-tooth-contact checks. These factory references allow technicians to check axle setup, verify component tolerances, and carry out repair inspections against the documented specifications.

The 216FBI section warns that reused ring-gear bolts can fracture and cause extensive damage.

Major drivetrain and suspension work can involve substantial component weight, stored spring force, and high fastener torque. Use lifting equipment with adequate capacity and properly support and stabilize the vehicle before performing inspections or repair work on these assemblies.

Circuit Tracing and Diagnostic References

Charging System, Starting System, Fuel/Ignition System, Transmission Control System, and Connector Pin-Outs are among the named wiring references. Connector/ground and splice-location drawings connect the circuit information with the vehicle’s wiring layout.

DTC descriptions and DRB scan-tool instructions support fault-code interpretation. Some ECM fault tracing refers to separate Powertrain Diagnostic Procedures information.

Cooling Capacity, Hub Nut Torque and Backlash: A Preview

For the 8.0L V10, the cooling-capacity table lists 24.5 L, including 0.9 L for the coolant reservoir.

The front 2WD hub/bearing installation section specifies hub/bearing nut torque of 251 N·m for LD 1500 models and 380 N·m for HD 2500/3500 models. The nut is designated non-reusable.

The 216FBI axle specification table gives ring-gear backlash of 0.12–0.20 mm, alongside bearing-preload specifications and the related shim-selection procedures.
