Yamaha SRX120 Snowmobile Service Manual 2013 (P/N 8JM-F8197-10/LIT-12618-03–04)

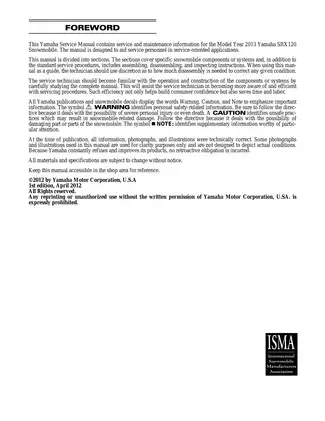

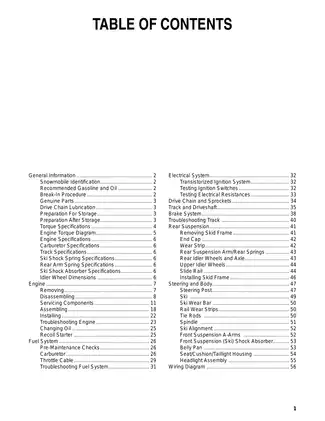

• Official 59-page Yamaha OEM service manual for the Model Year 2013 SRX120 snowmobile, first edition dated April 2012; P/N 8JM-F8197-10 / LIT-12618-03-04.
• Covers engine removal, complete disassembly, inspection, reassembly, and installation, including cylinder-head and valve service, piston and cylinder measurement, crankshaft bearing replacement, valve adjustment, and ignition-coil air-gap setup.
• Details carburetor removal and rebuild work, float-height inspection, idle-mixture and throttle-cable adjustment, speed-control setup, fuel-system checks, and throttle-range-specific rich/lean troubleshooting.
• Provides transistorized-ignition diagnosis, ignition-switch fault isolation, component resistance testing, and an SRX120 main-harness wiring diagram with the lighting and safety-switch circuits.

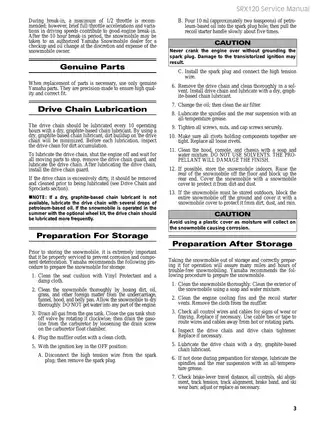

• Documents drive-chain and sprocket service, centrifugal-clutch removal and installation, track and driveshaft removal and inspection, track tension and alignment, mechanical brake-band service, and track troubleshooting.
• Includes skid-frame removal and installation plus repair procedures for the rear arm and springs, idler wheels and axles, wear strips, slide rails, and rear-suspension adjustment.
• Explains steering and body repair for the steering post, skis and wear bars, tie rods, spindles, ski alignment, front A-arms and shocks, belly pan, seat and fuel-tank base, taillight housing, and headlight assembly.

This factory PDF covers the air-cooled, single-cylinder 123 cc engine, model 70CL1-030, along with the fuel, electrical, drive, brake, suspension, steering, and body systems fitted to the 2013 SRX120. Yamaha designed it to aid service personnel, and its internal-engine measurements and required shop equipment make it best suited to technicians or experienced mechanics with established workshop skills.

Component and System Documentation

The engine chapter documents internal repair as well as routine service. It follows the engine through removal and teardown, cylinder-head and valve inspection, valve lapping, piston-ring service, cylinder measurement and honing, connecting-rod checks, crankshaft runout measurement, crankshaft bearing replacement, timing-mark alignment, governor setup, assembly, and installation. The related specifications cover valve train, piston, cylinder, camshaft, crankshaft, connecting rod, spark plug, and ignition-coil clearances. An engine torque diagram adds component-specific tightening, thread-locker, oil, and grease callouts.

Fuel-system coverage begins with pre-maintenance checks and continues through carburetor removal, disassembly, cleaning, inspection, assembly, installation, and adjustment. The troubleshooting charts separate rich and lean faults by throttle range and also address high-rpm fuel starvation. The manual covers the idle fuel adjuster, throttle stop, throttle cable, choke cable, fuel filter, tank vent, float and needle assembly, pilot jet, main jet, and nozzle. The speed-control section documents Yamaha's original 8 mph maximum-speed limit.

The rear-suspension procedures distinguish jobs that require skid-frame removal from those that can be completed with the frame installed. Wear strips and upper idler wheels can be serviced in place, while rear-arm, rear-idler, and slide-rail work calls for skid-frame removal. Track-tension and alignment procedures are paired because the two adjustments affect one another. A notable access detail is also stated: the engine must be removed before the recoil starter can be serviced.

Visual references include the engine torque diagram, carburetor exploded view, transistorized-ignition operation schematic, spark-advance characteristic graph, brake-system exploded view, and SRX120 main-harness wiring diagram. The harness drawing identifies the AC regulator, headlight and taillight, tether, key and stop switches, engine ground, magneto connections, and accessory connector.

Specification Highlights

Factory data is organized into torque tables and engine, carburetor, track, ski-shock spring, rear-arm spring, shock-absorber, and idler-wheel specifications. Inspection limits and adjustment data cover internal engine wear, valve train geometry, track setup, brake-lever travel, ski alignment, suspension settings, and ignition and lighting-circuit resistance tests.

The special-tool list identifies V Blocks YE-23405, Ball Hone 35-9234, Shock Spring Removal Tool 35-8671, and Fluke Model 88 Multimeter YU-A1927; a surface plate is listed as locally sourced. The drive chapter covers the centrifugal clutch as part of chain and sprocket removal and installation, but it does not include an internal clutch overhaul.

The manual specifically warns that incorrect piston-ring installation can damage the engine. It also cautions that cleaning carburetor passages with wire or drill bits can distort the calibrated orifices and cause poor operation.

Track, brake, recoil-starter, and fuel-system repair involve rotating parts, stored spring force, and flammable gasoline. Follow the Yamaha safety procedures, use a shielded stand where specified, and verify track, brake, and steering adjustments before operation.
