DAF LF45/LF55 2004 Truck Service Manual Set (P/N DW23259202)
2,880 Pages • ZIP Download: 13 Printable PDFs • 32.55 MB
DAF Models Covered & Key Technical Specifications
Models & Model Codes: LF45 (FA 4x2), LF55 (FA 4x2, FT 4x2, FAN 6x2)
Model Year: 2004
Additional DAVIE XD diagnostic coverage: CF65, CF75, CF85, XF95
-
Supply voltage: 24 V vehicle electrical system
-
Engine variants (LF45/LF55 workshop coverage): BE four-cylinder (BE 99 C, BE 110 C, BE 123 C) and CE six-cylinder (CE 136 C, CE 162 C, CE 184 C)
-
Gearbox variants (LF45/LF55 workshop coverage): Manual ZF S5-42 (LF45 application), ZF 6S-850 (BE and CE engine applications), and Eaton FS/6309A (CE engine linkage documented). Automatic Allison 1000 Series, 2000 Series, and MD3060 (LF55 wiring variants documented).
-
LF45/LF55 wiring chassis breaks: Circuit diagram 1427090/04 from 0L247507 (LF55 battery ground and starter changes), with LF45 VIC connector and harness changes from 0L248731, CDM circuits from 0L252611, and ECS-DC3/exhaust-brake circuit changes from 0L253643.
-
LF45/LF55 fuel-system chassis breaks: BE layout changes at 0L253643. CE layouts are shown below 0L248550, from 0L248550 to below 0L253643, and from 0L253643.
-
CF85/XF95 heater diagnostic chassis break: Hydronic 10 (ACH-EW) fault-code tables for D901 below 0E621373 and D979 from 0E621373.
-
F55 ECAS tool selection: Separate adjustment blocks are listed up to and from chassis L155144 for versions up to 15 tonnes, and up to and from chassis L156575 for 17/18-tonne versions.
DAF Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|
| LF45/LF55 Workshop Group 0 — Technical Data and General Operations | 74 |
| LF45/LF55 Workshop Group 1 — Cab | 230 |
| LF45/LF55 Workshop Group 2 — BE and CE Engines (P/N DW23259202) | 266 |
| LF45/LF55 Workshop Group 3 — Gearboxes and Clutch (P/N DW23259302) | 254 |
| LF45/LF55 Workshop Group 4 — Fuel System (P/N DW23259402) | 222 |
| LF45/LF55 Workshop Group 5 — Electrical System (P/N DW23259502) | 402 |
| LF45/LF55 Workshop Group 6 — Braking System (P/N DW23259602) | 188 |
| LF45/LF55 Workshop Group 7 — Steering | 328 |
| LF45/LF55 Workshop Group 8 — Rear Axle | 194 |
| LF45/LF55 Workshop Group 9 — Suspension | 84 |
| LF45/LF55 Maintenance Manual (P/N DW13279204) | 128 |

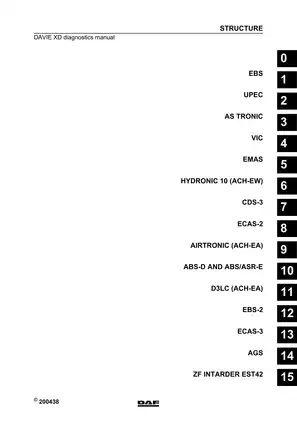

| 2004 DAVIE XD Diagnostics Manual — LF45, LF55, CF65, CF75, CF85, XF95 (P/N DW23262905) | 280 |
| DAF Special Tools — LF45/LF55 and selected F, CF, and XF series (P/N DW232830) | 230 |
Use the maintenance schedules to plan inspections and service, then turn to the workshop groups for component procedures. The electrical group helps match wiring to the truck’s build, while the DAVIE XD manual explains fault codes and scan-tool tests.
The CF and XF applications above are for diagnostics and applicable tool listings. A full BE/CE bottom-end overhaul or internal gearbox rebuild requires separate overhaul literature. AS Tronic coverage is diagnostic.
PDF Search and Navigation
Text search and diagram labels. The text is searchable across the set. The four full-size wiring sheets in Group 5 are image-based, and their small connector, pin, and wire labels are best read zoomed in. Embedded chapter bookmarks are available in Groups 2, 3, 4, and 6 and in the DAVIE XD and maintenance manuals.

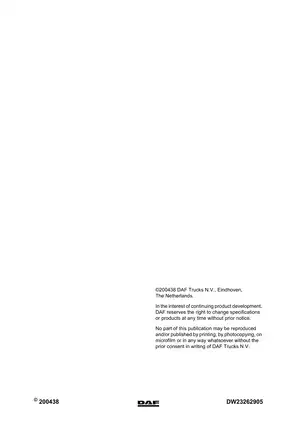

The ZIP contains 13 printable PDFs totaling 2,880 pages, including the original front and back matter, 23 blank pages, and two wiring-diagram notes pages. DAF publication and revision markings span 2002–2005.
Engine Service, Chassis Repair, and Electrical Fault Finding
This selection of workshop and diagnostic topics includes examples from the main groups. The DAVIE XD manual also covers CDS-3 control-unit initialization and ALS-S alarm radar-sensor inspection.
- BE and CE engines: Valve-clearance and timing checks, cylinder-head and complete-engine removal and installation, crankshaft seal and sensor-ring service, and cooling and lubrication tests.
- Fuel, intake, and exhaust: ECS-DC3 fault finding, injector and fuel rail service, high-pressure pump removal and installation, turbocharger inspection, and engine-brake adjustment.
- Gearboxes, clutch, and prop shafts: Mechanical and pneumatic shift controls, manual and Allison automatic gearbox diagnosis and removal, seal and pilot-bearing work, clutch bleeding, and step-by-step universal joint disassembly and assembly.
- Brakes and steering: Fully pneumatic brake schematics, Wabco PAN 17, PAN 19-1+, PAN 19-2 and Knorr SB7000/SN7000 disc-brake procedures, brake dynamometer and equalization checks, steering pressure testing and bleeding, and front-axle alignment.
- Axles and suspension: Wheel bearing and differential service for rear axle types 5.10, 5.12, 5.14, 8.20, 10.20, 10.26, and 11.26. Leaf and air suspension sections cover stabilizer bars, torque rods, and spring assemblies.
- Cab and scheduled maintenance: Day and sleeper cab service, complete cab removal, tilt-pump and lift-cylinder work, and heater, dashboard, door, glass, and seat procedures. The maintenance manual covers inspections, fluid and lubricant specifications, filter changes, bleeding, and chassis lubrication.
- Electrical and DAVIE XD diagnosis: Wiring diagrams, component and connector locations, multimeter and scopemeter tests, CAN fault tracing, and wiring and connector repairs. DAVIE XD sections cover fault codes, customer parameters, and system tests for EBS/EBS-2, UPEC, AS Tronic, VIC, ECAS-2/3, and ECS-DC3.
The set is suited to heavy-truck technicians familiar with circuit testing, shop lifting equipment, and DAVIE XD diagnostics.
Match the Circuit to the Truck
Use the chassis-change table with diagrams 1427090/03 and 1427090/04 to select the correct circuit before testing. The section diagrams and pin assignments help trace an open, short, or ground fault through the correct VIC connector or harness revision. The wiring repair chapter distinguishes test and signal grounds from component grounds and shows how incorrect crimps can damage insulation or loosen a conductor.
The DAVIE XD manual includes UPEC engine-brake and speed-variation tests, AS Tronic transmission and clutch-actuator menus, EMAS and ECAS calibration, and EBS-2 vehicle stability control calibration.
Component Repairs and Special Tools
The steering group separates F36/F48, F60, and 152N front axles and covers the steered trailing axle. The suspension group gives separate rear stabilizer and link procedures for LF55 13–15-tonne and 16–18-tonne GVW air-suspension layouts.
The special-tools index identifies DAF 1240080 and 1240081 for oil sump pressure testing, 1329476 for a Voss fuel-line test connection, 1329464 for mini-ALR adjustment, and 1329495 for Knorr SN-series brake overhaul. Use the index to identify dedicated tools before disassembly.
The fuel chapter explains how dirt can damage ECS-DC3 components and how the wrong injector washer or clamp orientation can lead to internal fuel leakage or engine damage. Follow the pressure-release, cab-support, and electrical isolation instructions for the system being serviced. The cab manual assigns airbag and seat-belt pretensioner work to trained personnel at DAF-approved facilities.
Selected Workshop Specifications
For BE and CE cylinder-head gasket selection, the engine group specifies a 1.15 mm gasket when average piston protrusion is below 0.301 mm and a 1.25 mm gasket at or above that threshold.
For the 5.10 single rear axle, the wheel bearing inspection uses a specified axial play range of 0.05–0.20 mm.
