Polaris Models Covered & Key Technical Specifications

Models: Virage TX, SLX, Pro 1200, Genesis, Genesis FFI

Models & Model Codes:

Virage TX — W005199D (engine W120-TCSP-02B1)

SLX — W004699D (engine W120-TCSP-02B1)

Pro 1200 — W004999D (engine W120-TCSP-02B1)

Genesis — W005099D (engine W120-TCSP-02B2)

Genesis FFI — W005098D (engine W120-DFI-02B)

Sub-models / Variants: Virage TX, SLX, Pro 1200, Genesis, Genesis FFI (Fuel Injection)

Model Year: 2000


  • Engine: 3-cylinder Polaris Marine 1200 series

  • Engine Displacement: 1165 cc

  • Max Horsepower: 135 HP @ 6700 RPM

  • Fuel System: 3-40mm Keihin CDK (Carbureted models) or FICHT Fuel Injectors (FFI models)

  • Compression Ratio: 6.8:1

  • Fuel Tank Capacity: 9.8–17 U.S. Gal. (37.1–64.4 L) depending on model

  • Magneto Output: 8.5A/60W or 12A/160W (FFI model) @ 4500 RPM

  • Impeller Diameter: 5.8 inches (14.73 cm)

  • Spark Plug Gap: .028 inch (0.7 mm) (Non-FFI), .032 inch (0.8 mm) (FFI)

Polaris Manual Features & Selected Content Preview

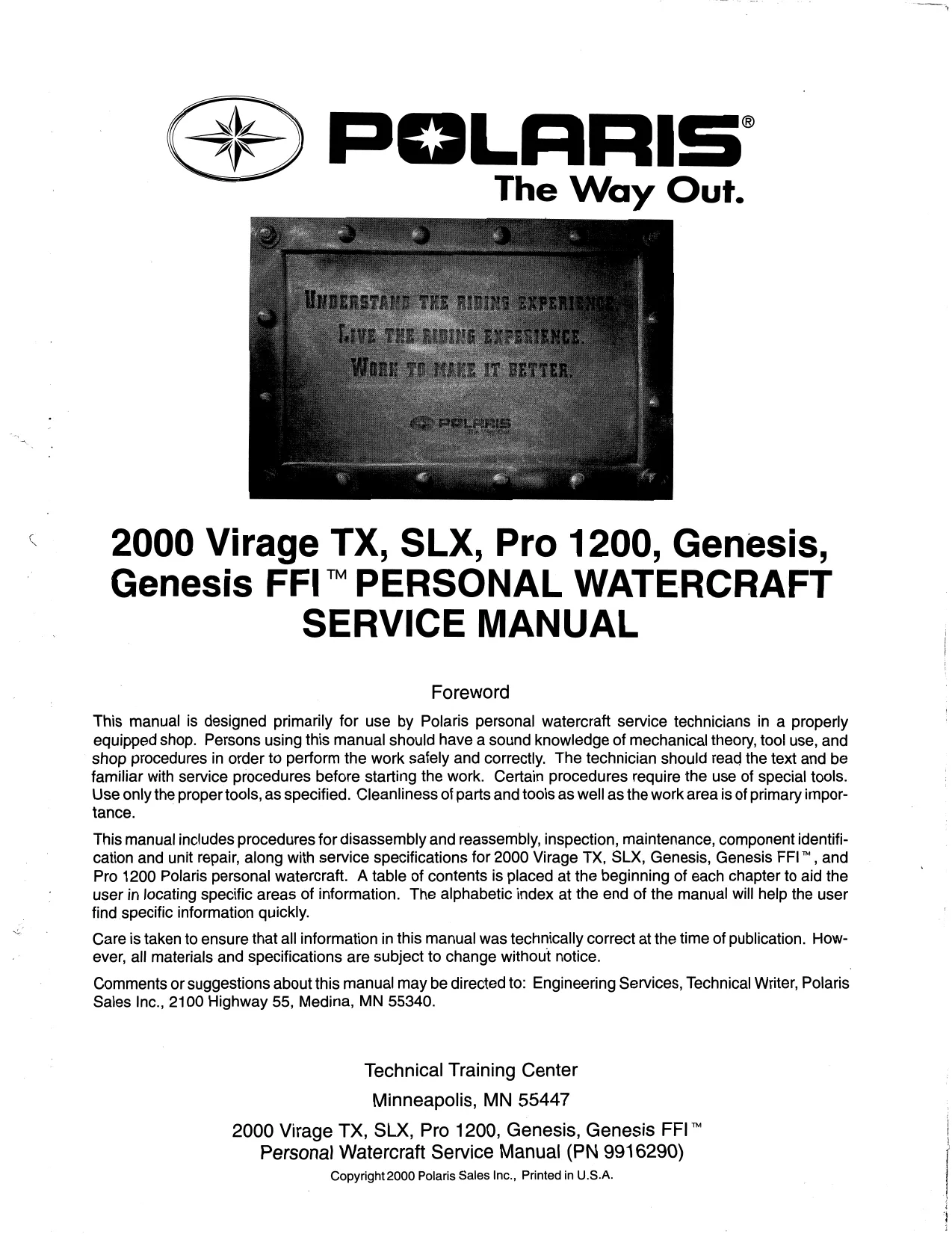

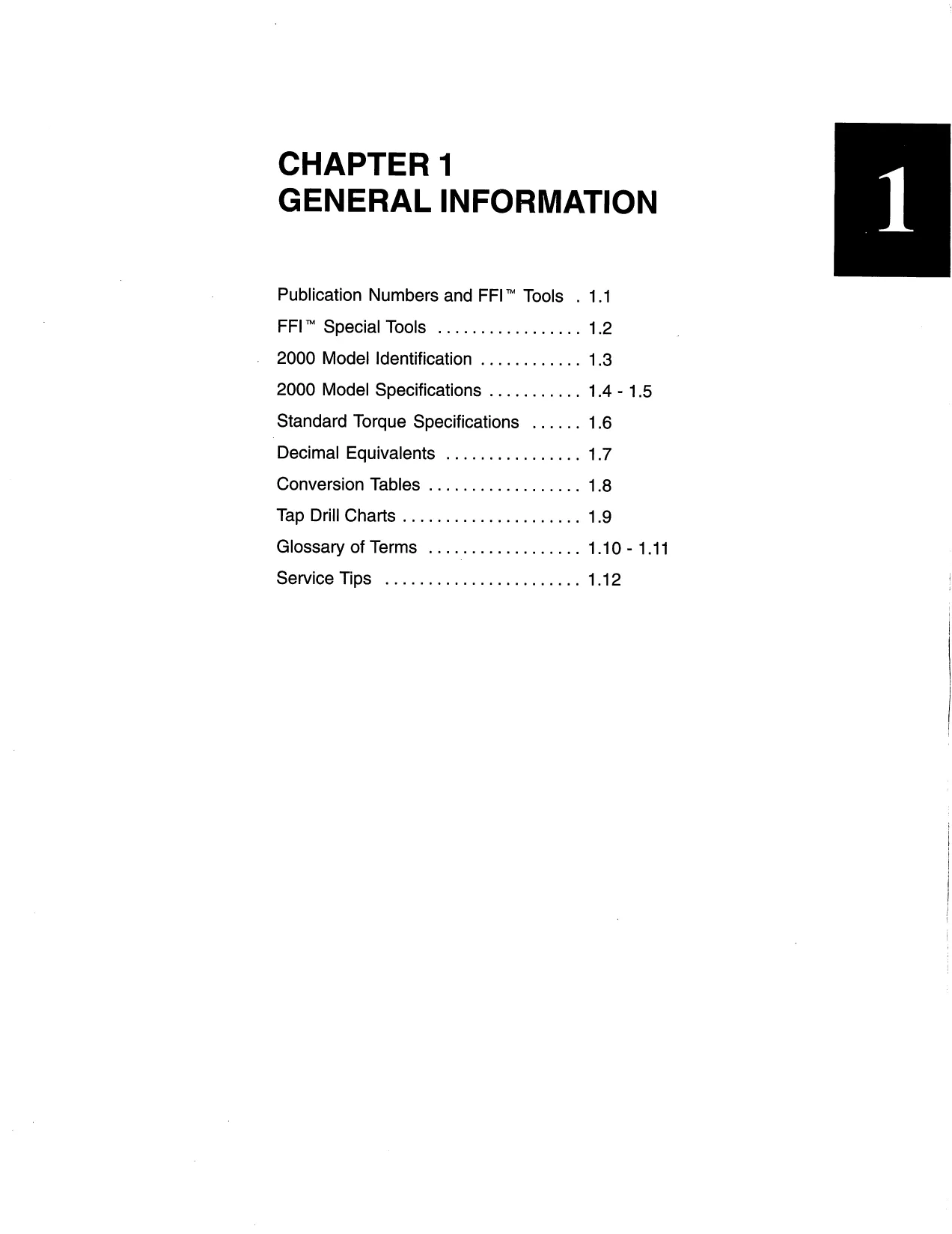

The 2000 Polaris Personal Watercraft Service Manual (P/N 9916290, Rev. 01) covers the Virage TX, SLX, Pro 1200, Genesis, and Genesis FFI.

Search, Bookmarks, and Wiring Detail

Text search and schematic detail: OCR makes chapter text searchable, and bookmarks link to chapters, service topics, and wiring diagrams. Some tables and wiring labels are outside the searchable text. Small wiring labels need magnification, and some labels around the Genesis FFI EMM connector remain hard to read when enlarged. Chapter 9 has separate, clearer EMM pinout tables.

The ZIP contains one printable PDF with 329 pages, including the original front and back covers.


Engine, Jet Pump, and Electrical Service

The selected service topics below are part of the manual, which also covers saltwater flushing and recovery after engine submersion.

  • Maintenance and tune-up: Scheduled inspections, driveshaft lubrication, oil pump adjustment, cooling system care, and off-season storage procedures.

  • Engine overhaul: Engine removal and installation, crankcase disassembly, piston and bearing inspection, cylinder honing, and crankshaft indexing and truing.

  • Keihin carburetors: Diaphragm carburetor disassembly and reassembly, synchronization and mixture settings, plus fuel-line and accelerator-pump tests.

  • Jet pump and driveline: Pump removal and reassembly, impeller and bearing inspection, driveshaft alignment, and diagnosis of pump ventilation and cavitation.

  • Electrical and instrumentation: Charging and starting circuit tests, starter motor overhaul, PVL ignition troubleshooting, and multifunction display and instrument diagnostics.

  • Genesis FFI diagnostics: FICHT fuel injection troubleshooting, Engine Management Module (EMM) service codes, injector and fuel pump tests, and diagnostic software procedures.

  • Hull and steering: Steering post and cable replacement, steering nozzle adjustment, and repair methods for molded composite and fiberglass hulls.

Polaris wrote the manual primarily for personal watercraft service technicians working in a properly equipped shop and assumes familiarity with mechanical principles, tools, and shop procedures.

Engine Assembly and Cooling

Exploded views identify engine mounts, crankcase components, pistons, and the oil pump. Torque tables and tightening patterns support reassembly, and the oil pump section covers bleeding. The manual gives separate crankshaft indexing procedures for the carbureted engines and Genesis FFI, along with model-specific cooling-flow diagrams and thermostat and coolant-filter service.

Fuel Delivery and FICHT Fault Finding

The Keihin jet tables identify main and pilot jets by part number. Fuel-line leak tests help narrow down a lean-running or hard-starting complaint before the carburetor rack is taken apart.

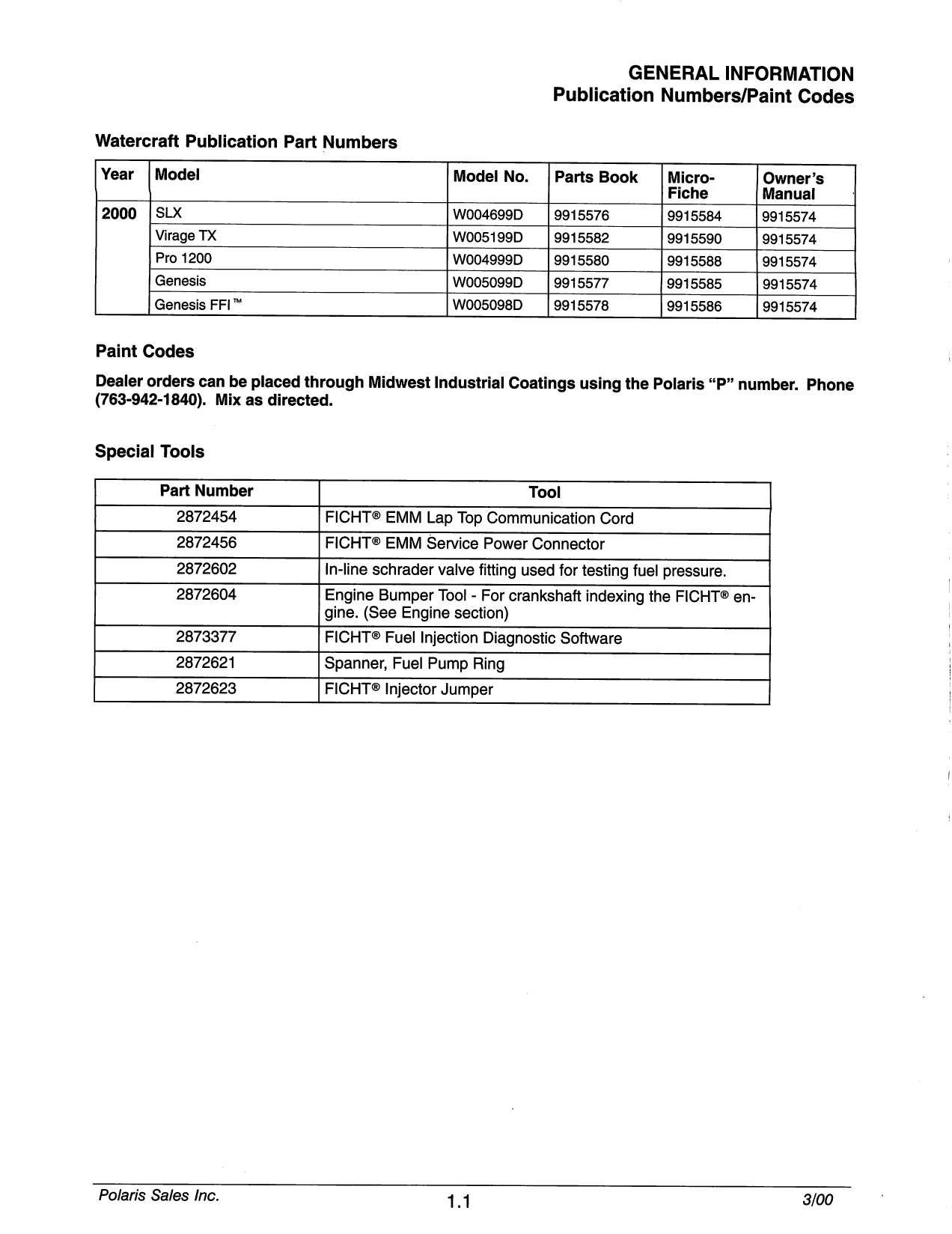

For Genesis FFI, symptom charts guide diagnosis of no-start, rough-running, and low-RPM complaints. The software chapter covers live sensor readings, cylinder drop tests, injector data entry, and data transfer to a replacement EMM. Computer-based tests require separate Polaris FFI diagnostic software (P/N 2873377) and an EMM communication cable (P/N 2872454).

Jet Pump Alignment and Hull Repair

The alignment checks help trace worn splines to the engine coupler or the pump-to-hull fit. When engine speed rises but thrust drops, the pump diagnosis points to air-leak locations such as the intake scoop seal and through-hull fitting. The hull chapter covers structural adhesive repairs for SMC and separate fiberglass and gelcoat repairs.

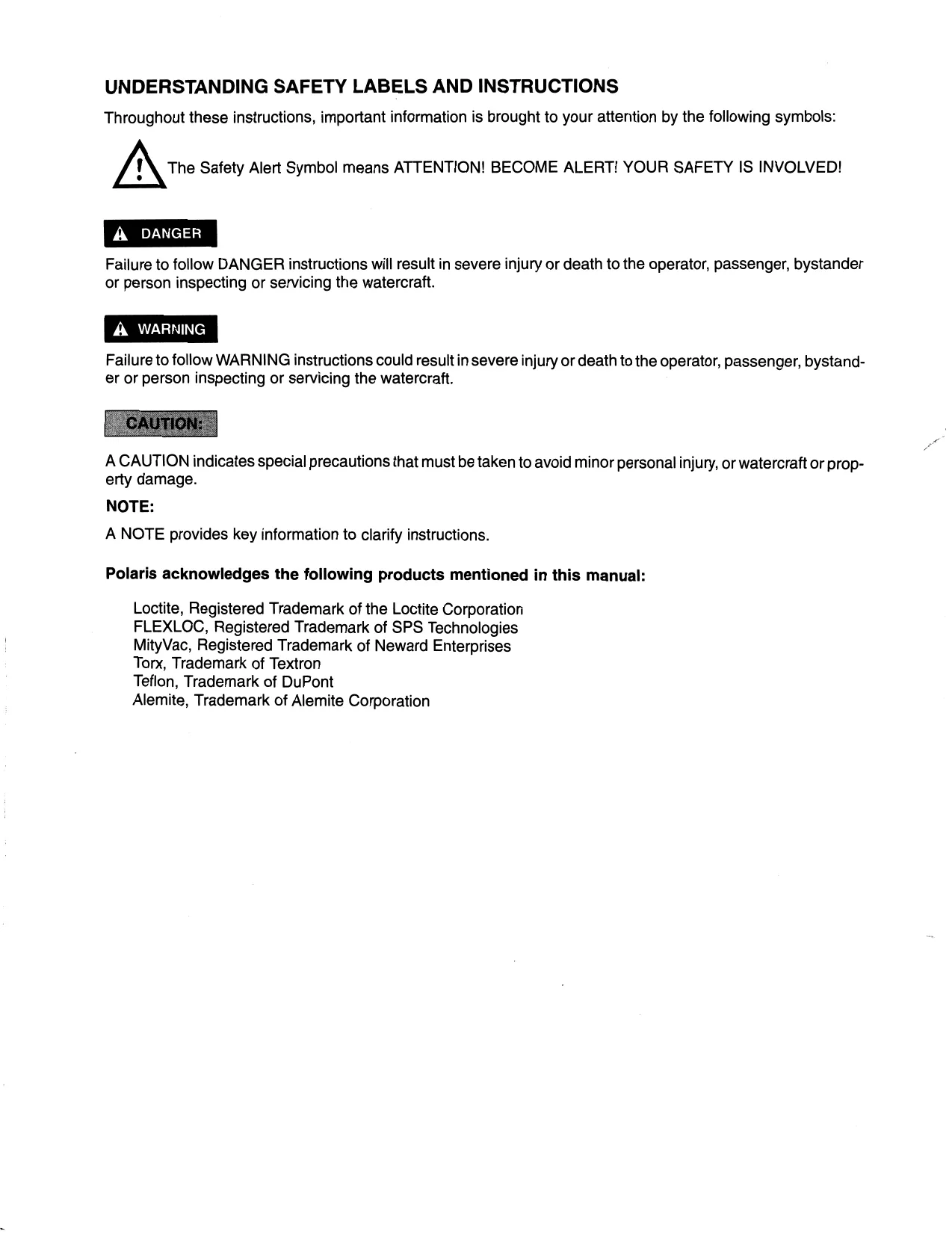

Isolate the ignition and disconnect the battery before working on the jet pump or driveshaft to prevent accidental starting.

Ignition, Wiring, and Reverse Control

The manual covers dynamic timing checks after CDI replacement on the carbureted models. On Genesis FFI, the EMM controls ignition timing. The model-specific wiring diagrams show the CDI power-feed update from Polaris service bulletin PWC-00-05 for the four carbureted models. Genesis and Genesis FFI also have Polaris Electronic Reverse Control (PERC) diagrams and reverse motor and limit-switch tests.

Selected Fuel Pressure and Driveshaft Specifications

For Genesis FFI, the running-engine fuel pressure test specifies 20–30 psi (138–207 kPa).

For the Pro 1200 driveshaft, the manual gives a runout service limit of 0.005 in. (0.13 mm) and fore-and-aft end play of 0.100–0.200 in. (2.5–5 mm) with new bumpers.
