Suzuki DR650SE 1996–2001 Service & Repair Manual
263 Pages • Printable PDF • 82.24 MB • Download
Suzuki Models Covered & Key Technical Specifications
Model: DR650SE
Sub-models / Variants: 96-Model (DR650SET), 97-Model (DR650SEV), 98-Model (DR650SEW), 99-Model (DR650SEX), 00-Model (DR650SEY), 01-Model (DR650SEK1); U-type E-22 (carburetor specifications)
Model Years: 1996–2001 (1996, 1997, 1998, 1999, 2000, 2001)
-
Engine type: Four-stroke, air-cooled, SACS, OHC, single-cylinder
-
Piston displacement: 644 cm³ (39.3 cu in)
-
Bore x Stroke: 100 mm x 82 mm (3.937 in x 3.228 in)
-
Compression ratio: 9.5:1
-
Carburetor: MIKUNI BST40SS, single
-
Transmission: 5-speed constant mesh, wet multi-plate clutch
-
Ignition type: Electronic ignition (CDI)
-
Fuel tank capacity: 13.0 L (3.4 US gal) / 12.0 L (3.2 US gal) for E33 models
-
Engine oil capacity: 2 300 ml (oil change), 2 400 ml (with filter), 2 600 ml (overhaul)
-
Intake valve clearance: 0.08–0.13 mm (0.003–0.005 in) cold
-
Exhaust valve clearance: 0.17–0.22 mm (0.007–0.009 in) cold
Suzuki Manual Features & Selected Content Preview

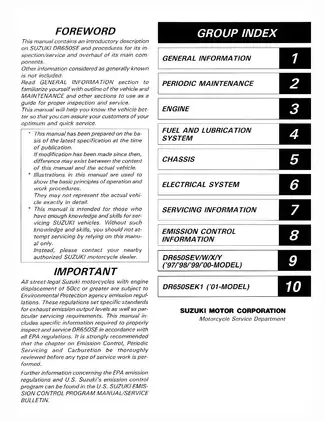

Published by Suzuki Motor Corporation’s Motorcycle Service Department, this DR650SE factory service manual covers the 1996–2001 models. It combines the DR650SET base chapters with integrated DR650SEV/W/X/Y and DR650SEK1 update chapters.
PDF Bookmarks and Wiring Detail

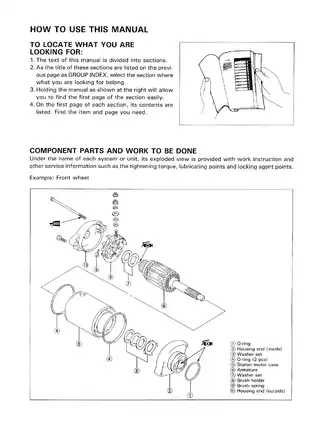

Search, navigation and diagrams: PDF text search is unavailable. Embedded bookmarks link to chapters and individual service topics. Small wiring-diagram labels and wire-color codes require zooming.
One printable English PDF contains 263 pages, including the cover, three introductory pages, an unnumbered engine cutaway and two added notice pages.
Engine Overhaul, Chassis Service and Electrical Diagnosis
The following selected coverage highlights outline the main workshop areas. Other topics include spark-arrester maintenance and California evaporative-emission hose routing.
-
Periodic maintenance: Service schedules, valve-clearance adjustment, oil and filter changes, drive-chain care, brake and suspension checks, and compression- and oil-pressure testing.
-
Engine repair: Step-by-step procedures for engine removal, crankcase separation and reassembly, with cylinder-head, valvetrain, piston, crankshaft, balancer and cam-drive inspection.
-
Clutch and transmission: Clutch inspection, starter-clutch service, torque-limiter testing, gearshift-mechanism repair, transmission disassembly, crankcase bearings, oil jets and oil-pump drive service.
-
Fuel and lubrication: BST40SS carburetor teardown, cleaning, needle-valve inspection and float-height adjustment, plus fuel-valve service, oil-cooler removal and SACS lubrication references.
-
Brakes and wheels: Wheel-bearing replacement, axle and disc inspection, brake-fluid replacement, caliper and master-cylinder overhaul, and hydraulic-system bleeding.
-
Suspension and steering: Fork teardown, steering-bearing service, swingarm and linkage repair, rear-shock inspection and adjustment, and the factory low-seat conversion.
-
Electrical diagnosis: Charging, starting, CDI ignition and side-stand/interlock troubleshooting, supported by circuit diagrams, component tests, wiring diagrams and routing references.
Suzuki wrote this manual for people who already have sufficient knowledge and skill to service its vehicles; general mechanical fundamentals are not taught.
Model-Year Updates and Regional Specifications
The 1997–2000 chapter adds specifications, service data and a wiring diagram specifically labeled for production on and after the 1998 model. The 2001 chapter provides its own specifications, service data and cylinder-head-cover liquid-gasket application view. These updates accompany the base repair chapters.
Regional tables distinguish U.S. E-03, Canada E-28, California E-33 and other-market configurations. Carburetor identification numbers, jetting, final drive and lighting differences help match the reference data to the vehicle before selecting parts or test specifications.
Internal Engine Inspection and Assembly References

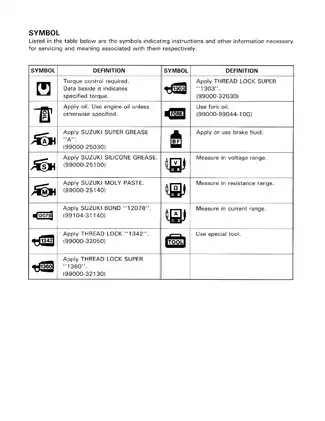

For an engine teardown, exploded views show component order alongside torque, lubrication and thread-lock callouts. Piston clearances, ring end gaps, crankshaft measurements and balancer timing references support decisions about component wear and reassembly.
Cylinder-head work extends to valve-guide replacement, valve-seat servicing, rocker-arm inspection and camshaft-journal measurements. The camshaft/automatic-decompression assembly and starter torque limiter are checked as assemblies rather than internally rebuilt.
The case-splitting cautions explain how leaving the crankshaft and transmission in the left crankcase half instead of the right can damage the gearshift-cam stopper.
Carburetor Circuits and Oil Flow
The fuel chapter explains the slow, main, starter and float circuits before covering inspection and remounting. Throttle-position-switch coverage is a continuity test, excluding E-03, E-18, E-24, E-28 and E-33 models.
Carburetor cautions address diaphragm damage from compressed air and damage to jets or passages from wire cleaning. The emission-control chapter also distinguishes precision mixture-control components from ordinary replacement jets.
The Engine Lubrication/Cylinder Head Cooling System Chart traces oil distribution through the engine and SACS cooling circuit.
Brake Hydraulics and Low-Seat Conversion
Caliper and master-cylinder sections cover seal, piston and bore inspection. Brake repair requires fresh glycol-based DOT 4 fluid and complete bleeding after hydraulic disassembly; mixing silicone- or petroleum-based fluid can seriously damage the system.
The low-seat section identifies optional parts and the corresponding fork, rear-shock, shorter side-stand and warning-label changes. Rear-suspension coverage also includes linkage bearings, shock inspection and replacement, spring preload and damping adjustment.
Follow the manual’s support, lifting, battery-isolation, fuel-handling and hot-engine precautions before starting service.
Electrical Fault Isolation and Workshop Tools
Charging, starter and no-spark diagnostic charts connect symptoms with component checks. Generator, regulator/rectifier, starter-relay, starter-motor, ignition-coil and CDI tests sit alongside battery, switch and lamp service.
Visual references include regional wiring diagrams, wire routing, control-cable routing, carburetor/air-cleaner hose routing and front/rear brake-hose routing. Separate engine, chassis and general-fastener torque tables supplement the illustrated procedures.
Listed tools include crankcase separator/crankshaft remover 09920-13120, generator rotor remover 09930-33720, fork oil-seal installer 09940-52860 and pocket tester 09900-25002.
Selected Piston-Clearance and Fork-Level Specifications
The piston/cylinder service data distinguishes a standard clearance of 0.020–0.030 mm from the 0.120 mm service limit.
Fork oil-level specifications distinguish the standard configuration at 164 mm from the factory low-seat configuration at 150 mm. Both measurements specify a vertical fork, the spring removed and the inner tube fully compressed.
