1987–2006 Suzuki LT-80 ATV Factory Service Manual (P/N 95106-06150-05E)

352 Pages • 39.71 MB • Printable PDFs (ZIP Download)

5.0starstarstarstarstar(1)
visibility Preview Available
$16.30 Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
OR BUY NOW

Cards and eligible digital wallets

verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
Stripe

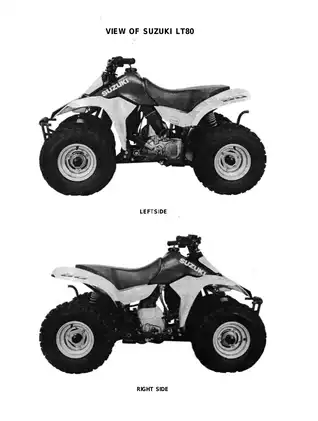

Suzuki Models Covered & Key Technical Specifications

Models: LT80

Sub-models / Variants: LT80J, LT80K, LT80L, LT80M, LT80N, LT80P, LT80R, LT80S, LT80T, LT80V, LT80W, LT80X, LT80Y, LT80K1, LT80K2, LT80K3, LT80K4, LT80K5, LT80K6

Model Years: 1987–2006 (1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006)


  • Engine: 82.5 cc, two-stroke, forced air-cooled

  • Transmission: Automatic V-belt drive, variable ratio 2.341–0.852

  • Ignition: Suzuki PEI (CDI)

  • Fuel System: Mikuni VM16SH carburetor

  • Tire Size: AT 19 x 7.00-8 (Front and Rear)

  • Capacities: 6.0 L Fuel tank, 1.2 L Engine oil tank, 80 ml Final gear oil

Technical Specifications
keyboard_arrow_down
Document Number / Seller:
24538 / William Johnson
File Size:
39.71 MB
File Type:
ZIP
Language:
English
Pages:
352
Printable:
Yes
Category:
ATV
Last updated / verified
Sep 5, 2026

Suzuki Manual Features & Content Preview

  • A 227-page service-manual PDF containing the Suzuki LT80 QuadSport base manual and model-year supplements through K6 (2006).
  • Covers engine removal and remounting, crankcase separation, crankshaft installation, and inspection of the cylinder, piston, rings, and reed valve.
  • Variable-ratio V-belt transmission service addresses drive-face rollers, driven faces, clutch-shoe and limiter-clutch assemblies, and reduction gears, with initial-engagement and lock-up tests.
  • Fuel-system chapters cover Mikuni VM16SH carburetor disassembly and mixture diagnosis, vacuum-operated fuel-cock operation, and Suzuki CCI oil-pump air bleeding and delivery testing.
  • Electrical diagnosis includes generator-output checks, ignition and rectifier testing, starter-motor repair, and parking-brake starter-interlock inspection, supported by wiring diagrams.
  • Chassis procedures cover drum-brake overhaul, wheel and rear-axle bearings and seals, steering-knuckle and suspension-arm service, and toe-in adjustment.

Two-Stroke Engine and Maintenance Coverage

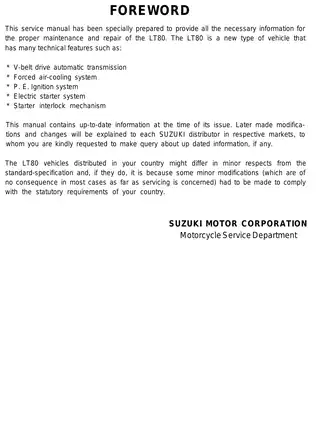

The publication is structured into seven primary groups: General Information, Periodic Maintenance and Tune-Up Procedures, Engine Servicing, Fuel and Lubrication Systems, Electrical Systems, Chassis, and Servicing Information.

For the forced-air-cooled two-stroke engine, the manual distinguishes components serviceable in the frame from work requiring removal of the engine/rear-axle assembly. Crankshaft rebuilding dimensions and oversize-piston information support internal engine repair decisions.

Routine maintenance extends to cylinder-head and muffler decarbonizing, foam air-cleaner service, and front-brake cable equalizer adjustment. The air-cleaner section links a torn or poorly seated element to rapid piston-ring and cylinder-bore wear. A separate warning in the clutch lock-up test explains that prolonged full-power loading can damage the clutch or engine.

Model-Year Supplements and Electrical Differences

The dated supplements cover J (1988), K (1989), L (1990), M/N/P/R/S/T/V/W/X/Y/K1 (1991–2001), K2–K5 (2002–2005), and K6 (2006). These sections update the base procedures and service data rather than repeat every repair chapter.

The 1989 supplement documents the change from 428-series to 520-series chain and revised engine and rear sprockets. It also identifies the carburetor throttle-valve limiter and exhaust power-reduction plate. The 1990 supplement adds YTX5L-BS battery servicing.

Electrical coverage distinguishes the earlier combined CDI/ignition-coil unit from the separate components used from the Y model onward. The later material adds individual coil checks, a CDI diode-test table, and separate wiring diagrams for T–X and Y/K1 models. The K6 supplement provides its own regulator/rectifier test table and wiring diagram, keeping later fault tracing separate from the early electrical checks.

Diagrams, Service Data, and Special Tools

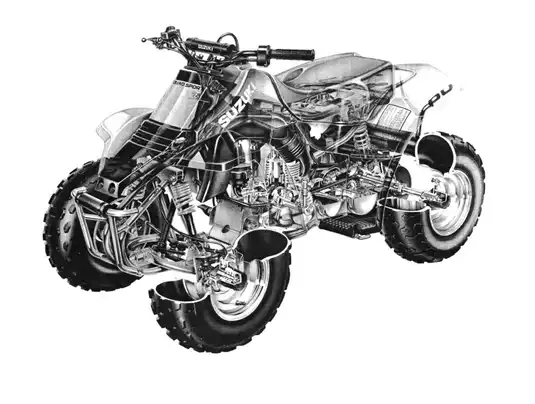

“LT80 Power Transmission” and “Forced Air-Cooling System” drawings explain the drive and cooling arrangements. “Carburetor Construction” and “Rear Axle Housing Reassembly Information” provide component-level references for fuel-system and final-drive work. Cable and hose routing drawings supplement the electrical schematics.

Troubleshooting charts connect symptoms such as hard starting, poor running, clutch slip, charging faults, and steering pull with possible causes and remedies. Service data separates standard dimensions from wear limits and provides component-specific tightening torques. Fluid capacities, lubricant requirements, adjustment data, and electrical test specifications are also included.

Special-tool references identify the crankcase separating tool 09920-13120 and CCI oil gauge 09900-21602 by part number.

Included Files and Parts References

The five-PDF set totals 352 pages. Alongside the 227-page service manual are three illustrated parts catalogs: LT80S (P3), 41 pages; LT80K1 (P3/P28), 39 pages; and LT80K2 (P1), 42 pages.

The parts catalogs add exploded views and component part numbers, including model-specific fuel-tank and fender listings and an optional recoil-starter breakdown. The LT80K2 catalog includes K2–K6 bodywork listings. A separate three-page Kawasaki KFX80 sheet contains 2006 model information, not Kawasaki repair procedures.

The service PDF carries cover reference 95106-06150-05E, and its group index is marked “Revised 05/06.”

This page describes the publication’s repair content rather than providing diagnostic or repair instructions. Workshop work should follow the manual’s safety precautions, particularly around fuel, batteries, brakes, and running-engine tests.
