Suzuki Ozark LT-F250 ATV Service Manual Set, 2002–2009

The supplements are cumulative: each refers back to the earlier chapters for procedures and data it does not replace. Use the applicable supplement alongside the base manual to account for changes in components, service specifications, and market equipment.

PDF Search and Wiring Detail

Search, bookmarks and diagram detail: Text search is available across the base manual and supplements, although some text on the K9 introduction page cannot be found reliably because of its text encoding. Embedded bookmarks cover the main sections and supplements. Small wire-color codes and component labels on the checked wiring diagrams are readable when enlarged.

One printable English PDF contains 366 pages, including 84 supplement pages and four front-matter pages within the base manual.

Engine, Bevel-Drive and Electrical Repair

The following selected coverage highlights summarize the major workshop content. Other included topics range from break-in recommendations to spark-arrester cleaning.

• Engine repair: Step-by-step engine removal and installation, top- and bottom-end disassembly, cylinder-head and valve service, cam timing, piston and crankshaft inspection, oil-pump work, and reassembly.

• Clutch and transmission: Clutch service, internal transmission disassembly and reassembly, shift-fork inspection, clutch-release adjustment, and recoil-starter repair.

• Shaft-drive service: Secondary bevel gears, rear gear-case overhaul, propeller shaft and universal joint, with tooth-contact, backlash, and shim-selection procedures.

• Chassis and brakes: Wheel and hub service, tire replacement, front caliper and master-cylinder overhaul, brake bleeding, rear drum brake, suspension, steering, toe-in, swingarm, rear axle, and reverse-lock cable.

• Fuel and scheduled service: Carburetor removal, disassembly, cleaning, needle-valve inspection, float-height setup and pilot-screw service, plus fuel-valve work, scheduled maintenance, compression, oil-pressure, and clutch engagement/lock-up tests.

• Electrical diagnosis: Charging, starter, CDI ignition, lamps, switches, relays, diodes, and battery tests, supported by fault-isolation charts and model-specific wiring diagrams.

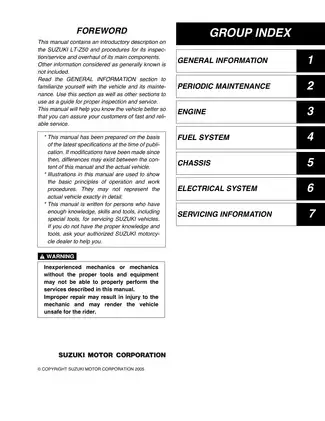

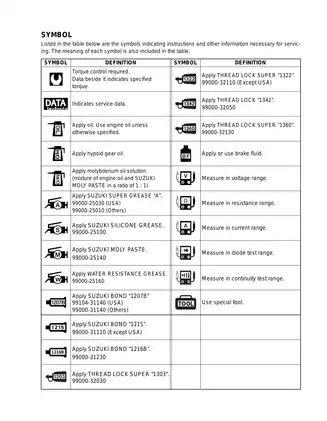

Suzuki states that this manual is written for people who already have the knowledge, skills, equipment, and special tools needed to service its vehicles. It assumes general workshop knowledge rather than teaching basic repair practice.

Model-Year and Market Differences

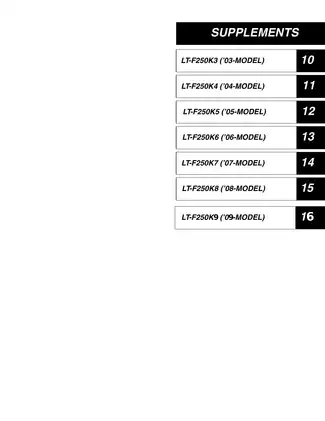

K3–K5 changes: K3 adds its revised clutch layout and model-specific service data. K4 documents the changed clutch sleeve-hub nut procedure, universal-joint grease points, and gearshift linkage. K5 adds a front caliper mounting update and its own wiring diagrams.

K6 market equipment: The largest supplement separates the E-04 configuration from E-17, E-24, E-28, and E-33 applications. Its dedicated material covers the speedometer/odometer drive, exterior and steering parts, lighting, switch tests, cable routing, regulator/rectifier installation, and wiring diagram.

K7–K9 updates: K7 adds revised front brake-hose routing. K8 records the change from a roller-type camshaft drive chain to a silent type. K9 adds revised fuel-tank construction and E-28/E-33 carburetor pilot-screw service, alongside updated specifications and service data.

Electrical Fault Tracing and Assembly References

The charging-system troubleshooting chart connects a battery-discharge complaint with current-leakage, generator-output, and regulator/rectifier checks. This provides a basis for narrowing the fault before selecting replacement charging components.

Starter-system charts address neutral and parking-brake interlocks. The ignition-system schematic and fault charts support coil, pickup, resistance, and peak-voltage diagnosis.

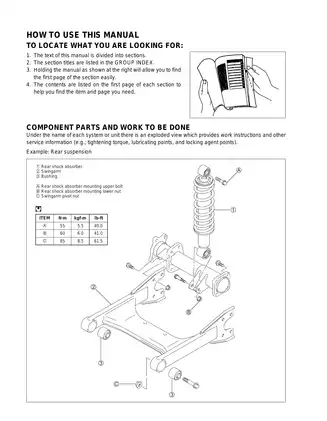

The engine lubrication circuit and flow chart trace oil supply through the engine. Rear-driving-system and chassis exploded views identify assembly relationships, torque points, lubrication, sealant, and thread-lock locations. Wiring-harness, cable, fuel-hose, and brake-hose routing drawings support reassembly.

Service Data and Special Tools

The tables provide component-specific torque specifications, fluid data, inspection and wear limits, carburetor settings by area code, clutch test data, bevel-gear shim information, and electrical voltage, resistance, current, continuity, and peak-voltage specifications.

The special-tool index identifies the 09920-13120 crankcase separating tool, 09920-53730 clutch sleeve hub holder, and 09900-25008 multi-circuit tester set.

Test equipment references include the 09915-64510 compression gauge set and 09915-74511 oil-pressure gauge with 09915-74532 adaptor.

Repair-Critical Notes

The manual warns that incorrect oil-filter orientation can cause serious engine damage. It also specifies glycol-based brake fluid and cautions that mixing silicone- or petroleum-based fluid can seriously damage the brake system.

Assembly illustrations show service relationships and procedures, but Suzuki notes that they may not reproduce every vehicle detail exactly.

Fuel-system work, running-engine tests, raised-vehicle service, and brake repair require the proper tools, ventilation, stable support, and the safety precautions stated in the manual.

Preview: Valve Clearances and Compression Data

For the K2 base model, the valve-clearance section specifies 0.03–0.08 mm intake clearance and 0.08–0.13 mm exhaust clearance with the engine cold and the piston at compression-stroke top dead center.

The compression-test section lists 1,400 kPa as the standard reading and 1,200 kPa as the service limit. Its test conditions include a warm engine, fully open throttle, and fully charged battery; the accompanying notes relate low readings to cylinder, piston-ring, valve-seating, and head-gasket condition.
