Suzuki DF90, DF100, DF115, DF140 Outboard Motor 2001–2009 Factory Service Manual (P/N 99500-90J07-03E)

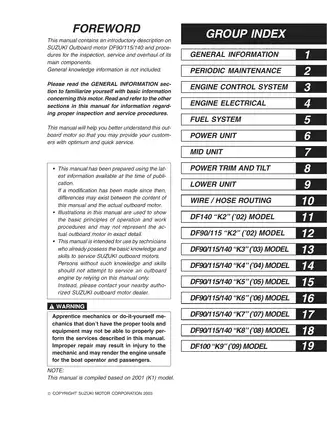

• Official Suzuki publication: a 616-page PDF, Manual No. 99500-90J07-03E, organized into 19 groups that combine the base service material with model-year updates.
• Exact coverage structure: the 2001 K1 DF90T/DF115T base; 2002 K2 revisions for DF90T/DF115T plus DF140T/DF140Z; K3-K8 DF90/115/140 updates; and the 2009 K9 DF100T/DF100WT supplement.
• Engine-management diagnosis covers multi-point sequential EFI, ignition and fuel-pump control, idle-air control, caution systems, self-diagnostic fault patterns, fail-safe operation, and O2 feedback.
• Major repair procedures include powerhead removal, timing-chain service, cylinder-head overhaul, and inspection and reassembly of the crankshaft, connecting rods, pistons, and cylinder block.
• Midsection, power trim and tilt, and gearcase work includes driveshaft-housing and bracket service, PTT bleeding and overhaul, lower-unit disassembly, bearing inspection, gear shimming, and counter-rotation service.
• Diagnostic drawings include the engine-control wiring diagram and ECM terminal layout, charging and starter circuits, PTT wiring and operation diagrams, lower-unit exploded and shimming views, and year-specific wire and hose routing.

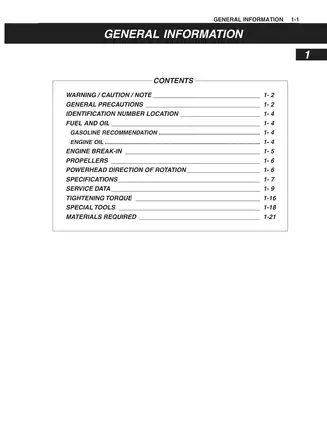

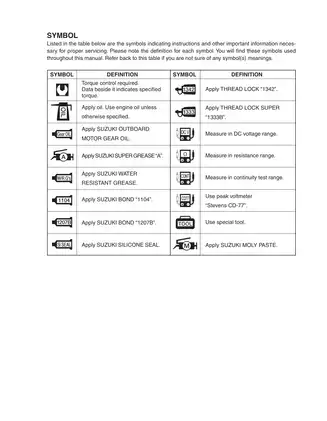

• Factory reference data provides component torque tables, fluid and lubrication specifications, wear limits, clearances, electrical test values, service data, and Suzuki special-tool listings.

Suzuki expressly states that this manual is intended for technicians who already have the basic knowledge and skills needed to service Suzuki outboards. General mechanical instruction is not included, and the manual cautions that apprentice or do-it-yourself mechanics without the proper tools and equipment may not be able to perform the work correctly.

Model and Year-Specific Coverage

Fitment references include prefixes 09001F, 10001F, 11501F, 14001F, and 14001Z. Depending on model year, the specification sections distinguish T and WT models as well as the DF140Z/DF140WZ counter-rotation configurations. The K2 DF140 material contains separate normal- and counter-rotation lower-unit disassembly, assembly, and gear-shimming procedures.

The later groups document changes that matter when selecting parts or a repair procedure: the K4 tilt-limit switch system, K5 safety-relay and remote-control changes, K6 bracket and lower-unit revisions, K7 pinion/gear-set information, and K8 digital-gauge connections and tachometer setup. The K9 section describes DF100-specific service differences from the DF115 K9 and states that no major changes were made to the DF115 or DF140 for 2009.

EFI, Electrical, and Fault Diagnosis

The engine-control section traces ECM inputs and outputs rather than stopping at a component overview. Its self-diagnostic tables identify fault priority, check-engine lamp and buzzer patterns, activation conditions, and fail-safe status for MAP, CKP, CMP, IAT, temperature-sensor, CTP-switch, rectifier/regulator, and injector circuits. Separate troubleshooting charts address sensor codes, cranks-but-will-not-start complaints, and unstable idle or trolling.

ECM checks use the 44-pin test cord 09930-89950 and include connector views, circuit-voltage tables, resistance checks, and component inspections. The manual also explains operating-hour display logic and oil-change reminder indication and cancellation; reminder operation is covered through 2,100 engine hours. For the actual O2-feedback operation procedure, Suzuki directs the technician to the separate Suzuki Diagnostic System Operation Manual.

Powerhead, PTT, and Gearcase Repair

Fuel-system procedures cover pressure relief and testing, leak checks, the vapor separator and high-pressure pump, injector service, the low-pressure pump, and fuel-tank inspection. The electrical chapter adds charging-system tests, starter troubleshooting, starter-motor disassembly and performance testing, and monitor-tachometer checks.

Powerhead repair covers intake-manifold and complete power-unit removal, oil-pump inspection, timing-chain and tensioner service, cylinder-head disassembly, valve and guide work, and bottom-end measurement and reassembly. Additional chapters address the driveshaft housing and oil pan, swivel/steering/clamp brackets, PTT motor and hydraulic-unit repair, and lower-unit setup with the related gear-contact and thrust-play checks.

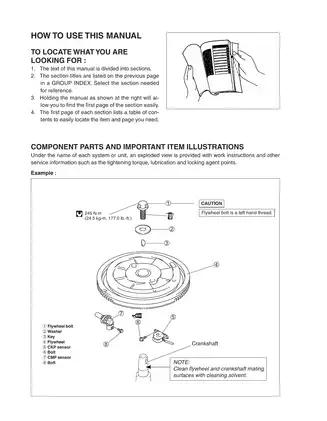

The special-tool list identifies equipment by part number, including fuel-pressure gauge set 09912-58413, gear-adjusting gauge 09951-09530, and shimming gauge 09951-09010. Manual-specific cautions flag the left-hand-thread flywheel bolt and crankshaft protection during puller use; the gearcase leak-test section also warns that excessive test pressure can damage the oil seals.

Fuel-system, cranking, and trim work involves pressurized fuel, unexpected-start risk, high-current electrical circuits, and hydraulic components. Follow the manual’s fuel-pressure relief, injector and pump disconnection, battery-isolation, and component-securing precautions before beginning inspection or repair.
