Suzuki KingQuad 450 LT-A450X ATV Service Manual (2007–2010)
528 Pages • 1 Printable PDF (English) • Download
Suzuki Models Covered & Key Technical Specifications
Model: LT-A450X KingQuad 450
Sub-models / Variants: LT-A450XK7, LT-A450XK8, LT-A450XK9
Model Years: 2007–2010 (2007, 2008, 2009, 2010)
Serial Numbers: 5SAAL42A 77100001–; LT-A450XK9 rear suspension update from 5SAAL42AX97103961; LT-A450XK9 rear stabilizer bushing update from 5SAAL42A897104381
-
Engine displacement: 454 cm³ (27.7 cu.in)
-
Engine configuration: 4-stroke, liquid-cooled, single cylinder, OHC
-
Bore and stroke: 84.0 mm x 82.0 mm
-
Compression ratio: 10.0:1
-
Idle speed: 1 500 ± 100 r/min
-
Fuel system: Electronic fuel injection
-
Spark plug: NGK CR6E or DENSO U20ESR-N
-
Transmission: Automatic variable ratio (V-belt) with 2-speed transfer (L-H-N-R)
-
Drive system: Shaft drive
-
Engine oil capacity: 2 500 ml (oil change), 2 700 ml (with filter change), 3 200 ml (overhaul)
-
Coolant capacity: 2.45 L (LT-A450XK7/XK8, total); 2.5 L (LT-A450XK9 specification)
-
Tire pressure: Front 35 kPa (5.1 psi), Rear 30 kPa (4.4 psi)
Suzuki Manual Features & Selected Content Preview
This Suzuki factory service manual for the 2007–2010 KingQuad 450 LT-A450X combines the LT-A450XK7 base manual with the XK8 and XK9 model supplements. The supplements document changes to the base procedures and specifications.
Searchable Chapters and Regional Wiring Diagrams
Text search and diagram detail: Embedded text supports searches across the service chapters, supplements, and regional wiring diagrams. Callouts that are part of an image fall outside text search. Fifteen PDF bookmarks lead to the group index and the 14 sections. Small wire-color codes and connector labels are easier to read when zoomed in.

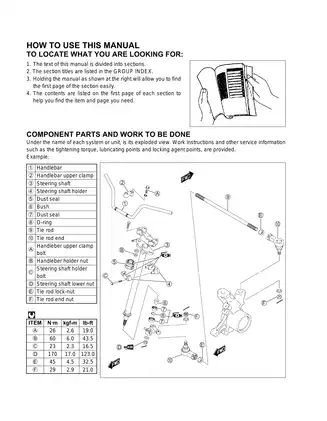

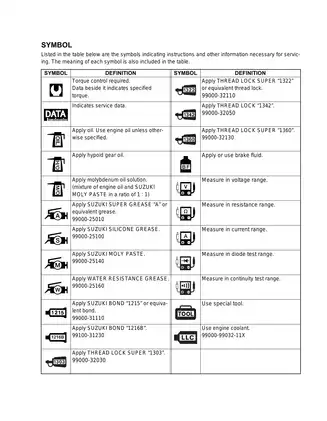

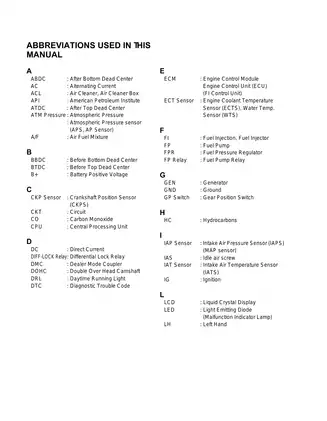

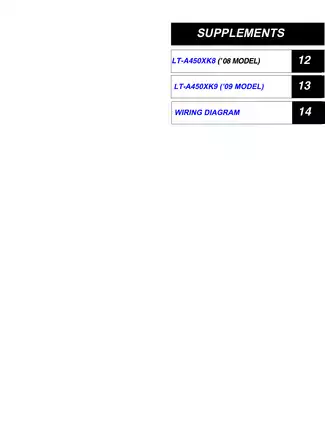

The download is one printable 528-page English PDF. The total includes 514 base-manual pages, including eight introductory pages and five blank pages, plus seven XK8 supplement pages, three XK9 supplement pages, and four wiring-section pages. The wiring section contains a wire-color legend and separate diagrams for Sweden, Australia, and Canada/USA.
Engine Overhaul, Drivetrain Service, and Fault Diagnosis
These selected workshop topics are part of the manual. Other examples include recoil starter service and wiring-harness, cable, and hose routing.
-
Engine repair: Engine removal and installation, cylinder-head overhaul, valve-clearance adjustment, camshaft timing, crankshaft and balancer inspection, and compression and oil-pressure tests.
-
CVT and transfer: Step-by-step drive belt replacement, clutch shoe and housing inspection, movable drive and driven face service, and L-H-N-R transfer disassembly.
-
Final drives: Front differential and rear final-drive repair, propeller shaft service, bevel-gear backlash checks, tooth-contact inspection, and shim selection.
-
Fuel injection and delivery: Diagnostic trouble code (DTC) charts, Suzuki Diagnosis System (SDS) procedures, sensor circuit tests, fuel-pressure and pump-delivery checks, and throttle body inspection.
-
Cooling system: Water pump overhaul, radiator and cap checks, thermostat testing, coolant replacement, and cooling fan thermo-switch testing.
-
Brakes and chassis: Front hydraulic disc brake service and bleeding, sealed oil-bathed multi-disc rear brake repair, steering service, toe adjustment, and suspension spring preload adjustment.
-
Electrical troubleshooting: Charging and ignition tests, starter motor disassembly, combination meter diagnostics, and 4WD/differential-lock checks.
Suzuki wrote this manual for people with the knowledge, skills, and tools to service its vehicles, including the special tools specified for individual jobs.
Engine, CVT, and Final-Drive Work
The engine chapter identifies components that can be removed with the engine still in the frame, including the cylinder head, camshaft, and piston. Exploded views, inspection limits, and component torque tables accompany teardown and reassembly. The crankshaft installation section warns that striking the crankshaft into the case can disturb its alignment.
The periodic maintenance chart gives mileage and time intervals for jobs such as engine oil and filter changes and front differential and rear final-drive oil service. The CVT procedures cover rollers, dampers, seals, clutch engagement, and lock-up testing. The driven face contains a heavily loaded spring and requires the specified spring compressor, 09922-31430.
The front propeller shaft procedure calls for replacing a universal joint with excessive play as an assembly. The rear propeller shaft section provides separate universal-joint disassembly and reassembly procedures.
Fuel Injection and Electrical Fault Tracing
Dealer-mode diagnosis uses mode select switch 09930-82720. The SDS procedures reference tool set 09904-41010, software CD-ROM 99565-01010-009, and a separate SDS operation manual for detailed software operation.
SDS examples show the conditions recorded when a fault occurred and compare live readings with saved inspection data. Together with the FI wiring diagram, ECM terminal layout, and starter and charging circuit diagrams, these references help trace intermittent faults to the relevant circuit. The electrical chapter also gives generator specifications, ignition timing data, and combination meter indicator checks.
The fuel-system chapter covers the injector, pump mesh filter, and fuel tank pressure control valve. The factory-set throttle position sensor is part of the combined TP/IAP/IAT unit and must stay in place during service. The throttle body removal procedure also warns that letting the throttle valve snap shut after cable disconnection can damage the valve and body.
Cooling, Steering, and Suspension Updates
The water pump section distinguishes oil leakage at the oil seal or O-ring from coolant leakage at the mechanical seal or seal ring. A cooling circuit diagram and an engine lubrication chart trace the two systems.
The chassis chapter gives caster specifications and a separate toe adjustment procedure. It covers wishbone bushings and wheel bearings and specifies replacement of damaged or leaking shock absorbers as assemblies.
The XK8 supplement updates front and rear suspension assembly information and covers fuel-level gauge inspection. The XK9 supplement gives separate frame-number cutoffs for the rear suspension change and revised stabilizer bushing lubrication guidance. Those cutoffs help match the procedure to the ATV before rear suspension work.
Valve Clearance, Compression, and Cover Torque Examples
The base manual specifies cold valve clearances of 0.05–0.10 mm on the intake side and 0.17–0.22 mm on the exhaust side. Its standard cylinder compression test figure is 1,000 kPa with automatic decompression active.
The engine reassembly section specifies 10 N·m for the cylinder head cover bolts and shows their tightening sequence.
