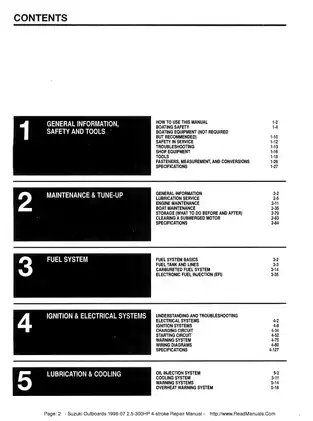

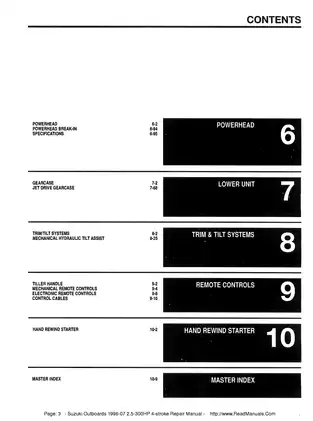

1996–2007 Suzuki DF2.5-DF300 HP 4-Stroke Outboard Service Manual

• Model and configuration coverage: Covers Suzuki 2.5-300 hp four-stroke outboards within the 1996-2007 range, including one-, two-, three-, and four-cylinder engines, V6 models, carbureted and EFI systems, rope/tiller/remote-start versions, standard- and counter-rotation lower units, Jet Drive applications, and the 2007 300 hp electronic-control system.
• Powerhead repair: Details flywheel service, powerhead removal and installation, cylinder-head and cylinder-block overhaul, valve-train inspection, timing-belt and timing-chain work, oil-pump service, compression and leakage testing, final adjustment, and break-in.
• Fuel and EFI diagnosis: Includes carburetor removal, overhaul, installation, and synchronization; low- and high-pressure fuel-pump testing; vapor-separator-tank and injector service; self-diagnostic codes; ECM pinouts; sensor tests; and model-specific fault charts.
• Ignition and electrical work: Provides DVOM-based tests for CDI/ECU ignition, coils, stators, rectifiers/regulators, starting and charging circuits, warning systems, relays, switches, wiring, and connector repair, backed by configuration-specific wiring diagrams.
• Lower-unit and Jet Drive service: Covers gearcase removal, disassembly, inspection, pressure testing, shimming, reassembly, clutch and shift adjustment, propeller-shaft and driveshaft work, standard/counter-rotation builds, water pumps, jet-pump overhaul, and reverse-gate linkage adjustment.
• Trim, tilt, and controls: Explains power-trim/tilt electrical diagnosis, hydraulic-unit removal and overhaul, filling and bleeding, mechanical tilt assist, tiller and mechanical remote controls, control-cable rigging, and 300 hp fly-by-wire throttle-lever sensor checks. The gas-charged tilt-assist cylinder is covered as a replacement assembly rather than an internal rebuild.

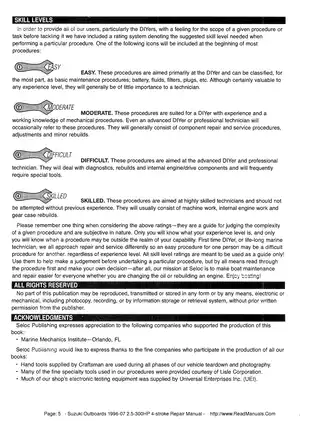

This 673-page PDF is a Seloc multi-model repair manual, not a Suzuki factory service publication dedicated to one engine serial range. Its built-in skill ratings separate routine owner maintenance from advanced diagnostics, internal powerhead repair, machine work, and gearcase rebuilding. The latter work is best suited to experienced marine technicians or advanced DIY mechanics equipped with the required test equipment, precision gauges, and specialty tools.

Coverage That Matches the Engine Build

The model tables do not apply the full 1996-2007 span to every horsepower rating. They carry the 9.9/15 hp family throughout that period, then identify later additions: 60/70 hp from 1998; 40/50 hp from 1999; the 25 hp three-cylinder engine from 2000-2006 and 30 hp from 2000-2007; 90/115 hp from 2001; 4, 5, and 140 hp from 2002; 6 hp from 2003; and 200-250 hp V6 engines from 2004. The 2.5 hp, 25 hp V2, 150 hp, and 175 hp families enter the tables in 2006, with the 300 hp added for 2007. The manual also distinguishes Mikuni and Keihin carburetor applications, inline and V-engine layouts, early and late power-trim/tilt assemblies, and a mid-2005 40/50 hp gearcase redesign at serial numbers 04001F-510210 and 05001F-510466.

Engine-identification guidance explains the transom-bracket model code and serial tag, along with Suzuki's year-code system. It also directs the reader to use the engine's emissions-control label when production changes make its calibration data more specific than printed reference information.

Diagnostics, Diagrams, and Specifications

The electrical section organizes wiring by engine and control configuration. Representative diagrams include the 2.5 hp one-cylinder circuit; 9.9/15 hp rope-, tiller-, and remote-start layouts; 40/50 hp EFI circuits; 90/115/140 hp remote-electric wiring; 200/225/250 hp V6 diagrams; and 300 hp fly-by-wire helm wiring for single or multiple engines with single or dual stations. ECM connector views and circuit operating values sit alongside trouble-code charts for fuel, air, temperature, crank/cam, VVT, electronic-throttle, electronic-shift, and boat-control faults. Cooling-system water-flow diagrams, trim/tilt hydraulic flow diagrams, and exploded powerhead, gearcase, fuel-system, and control views add mechanical context.

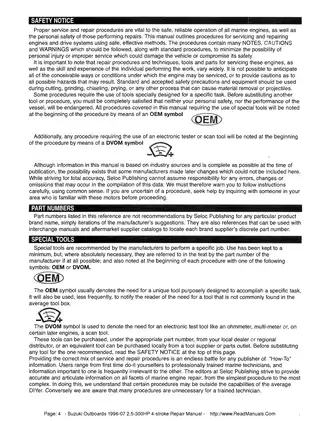

Reference tables cover maintenance intervals, lubricant and fluid requirements, capacities, tune-up data, valve clearances, component-specific torque specifications, electrical resistance and output tests, fuel-pressure checks, wear and service limits, and gearcase shimming data. OEM-tool icons and DVOM symbols identify procedures that need more than standard hand tools. Examples include Suzuki ECM test cords 09930-89950 and 09930-89340, driveshaft holders 09921-29510/09921-29511, and propeller-shaft removal tool 09930-30161.

Repair Cautions and Safe Service

The gearcase chapters warn that replacing a shaft, bearing, gear, shim, or thrust washer requires the assembly to be checked and re-shimmed; skipping that work can cause harsh shifting and accelerated gear, bearing, or shaft wear. The powerhead section also identifies the 90-140 hp flywheel retaining bolt as left-hand thread and warns against striking the flywheel, which can crack or dislodge its magnets.

Before electrical or fuel-system repair, disconnect the negative battery cable and observe the manual's EFI fuel-pressure precautions. Support a raised outboard with the specified lock or a suitable hoist before trim/tilt work; hydraulic pressure or a released assembly can let the engine drop without warning.
