Suzuki DF40/DF50 2000–2001 Outboard Service & Repair Manual (P/N 99500-87J03-01E)

The Suzuki DF40/DF50 Four Stroke Service Manual, P/N 99500-87J03-01E, 4th Edition, March 2002, covers inspection, service, and overhaul for 2000–2001 outboards. It includes T remote-control and QH tiller-handle configurations, with dedicated Y and K1 model sections and coverage of the DF50(W)T and DF50(W)QH versions.

PDF Search, Wiring Detail and Page Count

Search and diagram access: The main text is searchable, but labels within some wiring and control diagrams are not. The file has no usable chapter bookmarks. Small wiring labels on the checked pages are legible when enlarged.

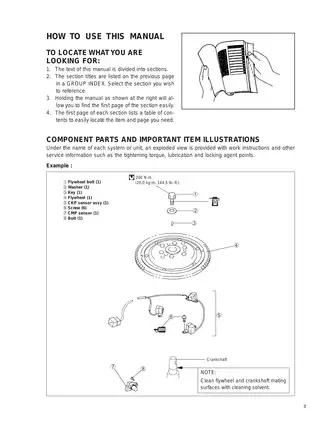

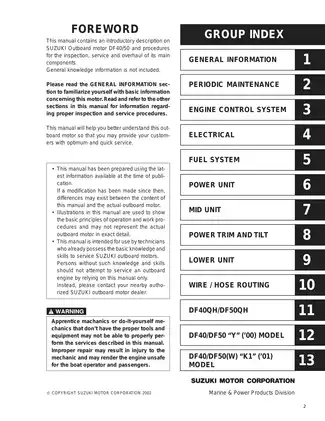

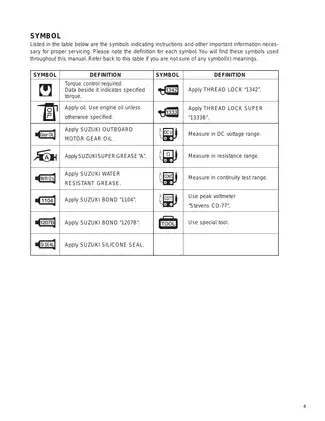

Supplied as one printable English PDF with 412 pages, including four opening pages comprising the front cover, foreword, usage instructions, and symbol guide, plus two closing publication and back-cover pages.

Powerhead, EFI and Outboard Drive Systems

These selected service topics outline the repair coverage rather than reproduce the complete contents. Other subjects include engine break-in guidance and fuel-tank inspection.

• Power-unit repair: Powerhead removal and installation, timing-chain and tensioner service, camshaft inspection, and internal engine overhaul.

• ECM and EFI diagnosis: Sensor tests, circuit voltage and resistance tables, self-diagnostic codes, fail-safe modes, and troubleshooting charts for no-start and unstable-idle complaints.

• Fuel-system service: Pressure relief, pressure testing, leak checks, vapor-separator and high-pressure-pump disassembly, injector replacement, and low-pressure-pump repair.

• Electrical repair: Charging-system tests, starter-motor overhaul, relay and neutral-switch checks, and monitor-tachometer inspection.

• Mid-unit, steering and trim: Driveshaft-housing and oil-pan service, swivel/steering/clamp-bracket repair, PTT bleeding and overhaul, and QH tiller-handle and gas-assisted tilt service.

• Lower-unit work: Forward-neutral-reverse gearcase disassembly, water-pump service, clutch adjustment, gear shimming, backlash measurement, and driveshaft and propeller-shaft thrust-play checks.

• Factory diagrams and views: T and QH wiring diagrams, water-cooling and lubrication schematics, PTT hydraulic circuit views, and lower-unit shimming drawings.

Suzuki states that this manual is intended for technicians who already possess the basic knowledge and skills to service its outboard motors.

Powerhead Overhaul and Maintenance

Step-by-step procedures cover intake-manifold removal, oil-pump inspection, cylinder-head and valve overhaul, and piston, connecting-rod, crankshaft, and main-bearing service. Main-bearing selection relates stamped crankshaft and cylinder-block codes to color-coded bearing shells.

The maintenance chapter includes oil and filter changes, tappet-shim selection, compression testing, and oil-pressure checks. Its valve-service cautions explain how incorrect crankshaft rotation can damage the water-pump impeller.

Exploded views identify component-specific torque, lubrication, thread-lock, and sealant requirements. Wire and hose routing drawings show harness placement and fuel/water connections during reassembly.

EFI Fault Tracing and K1 Changes

The speed-density injection, ignition, and idle-air control sections connect system operation with component tests. MAP, CKP, CMP, IAT, cylinder-temperature and exhaust-manifold-temperature sensor checks accompany CTP-switch tests and ECM terminal and internal-structure views.

Circuit checks and symptom charts help narrow no-start or unstable-idle complaints to fuel-delivery, sensor, wiring, or control faults. Separate warning-system explanations address over-rev, low oil pressure, overheating, and low battery voltage.

K1 differences: The later section revises the ECM, CKP sensor and flywheel arrangement, ignition and fuel-injection timing charts, and fail-safe behavior. It also adds injector open-circuit diagnosis and oil-change reminder operation.

O₂ feedback equipment: K1 fuel-mixture testing requires SDS software and a computer; the diagnostic harness alone is insufficient. The manual identifies the 44-pin test cord 09930-89950 and SDS adapter 09932-89910, and refers to the separate SDS Operation Manual for software-use instructions.

T/QH Tilt Systems and Gearcase Setup

QH models use audio warning signals and gas-assisted manual tilt; T models use power trim and tilt. QH coverage includes tiller-handle repair, throttle/shift-cable adjustment, and tilt-cylinder removal and replacement. The sealed high-pressure gas cylinder must not be disassembled.

PTT instructions cover pump, valve, and motor work, with a separate K1 bleeding procedure. Lower-unit tooth-contact illustrations and gear-adjusting gauge 09951-09511 support shim selection; incorrect tooth contact can chip the forward or pinion gear.

The Y-model section also distinguishes thermostat and piston/oil-ring revisions by serial number, helping match the service data to the engine’s build.

Examples of Valve-Clearance and Fuel-Pressure Data

For the covered DF40/DF50 engines, the valve-service section specifies cold intake and exhaust tappet clearance of 0.18–0.24 mm. The accompanying shim-selection chart relates measured clearance to replacement shim thickness.

Fuel-pressure inspection specifies approximately 255 kPa during cranking or idling, with residual pressure of at least 200 kPa five minutes after shutdown. These figures accompany the pressure-test equipment and inspection instructions.
