2007 Suzuki DF 300 4-stroke V6 Outboard Motor Service Manual (P/N 99501-98J00-01E)

• Model matching is explicit: covers the 2007 K7 DF300T / 30001F standard-rotation and DF300Z / 30001Z counter-rotation versions, the 2008 K8 changes, later DF300T/Z builds from 30002F-110001 and 30002Z-110001, and DF300AP / 30002P-210001 and later.
• Major engine repair is documented: power-unit removal and installation, oil-pump service, timing-chain and VVT work, cylinder-head and valve service, and cylinder, crankshaft, piston, connecting-rod, and bearing inspection and reassembly.
• Control and fuel diagnosis goes well beyond basic maintenance: Suzuki Precision Control, ECM/BCM circuits, electronic throttle and shift, ignition and sequential EFI, fuel-pressure testing, sensor checks, self-diagnostic codes, fail-safe operation, and SDS-supported setup are covered.
• Mid-unit and trim work includes factory procedures: driveshaft housing and oil-pan service, swivel/steering/clamp bracket repair, water-pressure valve work, and power trim-and-tilt removal, disassembly, inspection, reassembly, air bleeding, motor, relay, and switch testing.
• Lower-unit coverage is configuration-specific: separate standard- and counter-rotation chapters address removal, disassembly, inspection, oil-seal and water-pump service, reassembly, leakage testing, and gear shimming, backlash, tooth-contact, and thrust-play checks; the DF300AP section adds its selective-rotation lower unit.
• Technical references support fault finding and assembly: ECM/BCM connector and internal-structure views, ignition- and fuel-injection timing charts, the PTT wiring and hydraulic-operation views, engine lubrication and cooling schematics, and single-engine, dual-station, twin-engine, and triple-engine wiring diagrams are included, along with torque, capacity, clearance, wear-limit, pressure-test, and electrical-test data.

The 629-page PDF is arranged as a 464-page K7-based service manual, a 20-page K8 supplement (P/N 99501-98J00-01E), a 71-page supplement for the later 30002F/Z serial range (P/N 99501-98J30-01E), and a 74-page DF300AP supplement (P/N 99501-98J40-01E). The DF300AP cover directs the reader to use it with main service manual P/N 99500-98J01-01E and the 98J30 supplement. Suzuki states that the main manual is intended for technicians who already have basic knowledge and skills for servicing Suzuki outboards; apprentices or DIY mechanics without the specified tools and equipment should not rely on it alone.

Factory Changes by Build

The K8 supplement records changes to shift learning, the shift-actuator holder, crankcase and collector cover, fuel and water hoses, and the lower-unit forward thrust washer and clutch-dog identification. Those details help keep early and late parts and assembly references from being mixed during repair.

For 30002F/Z engines at the stated serial break, the supplement adds the oxygen sensor and water-in-fuel sensor, updated gauge displays, revised caution and fail-safe logic, circuit inspection, oxygen-sensor service, fuel-filter changes, trim-down limit setting, and revised wiring. The DF300AP section then adds the selective-rotation system, troll-mode control, oil-pressure and oil-temperature sensing, additional diagnostic codes, and a substantially revised lower-unit overhaul section. Selective rotation lets the AP lower unit be configured for standard or counter rotation through a rotation-select connector and ECM control rather than by substituting a different gearcase.

Workshop Detail and Repair Cautions

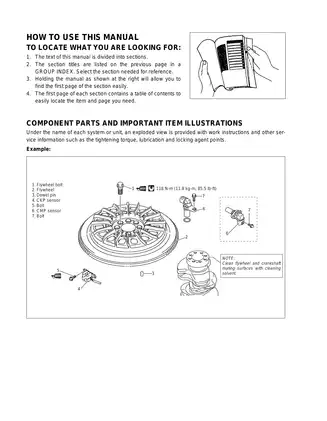

The manual names the factory equipment behind many procedures, including the Suzuki Diagnostic System set 09933-19811, 26/34-pin test cord 09930-89340, BCM simulator harness 09930-89860, fuel-pressure gauge set 09912-58413, and oxygen-sensor socket 09933-39810. Exploded assembly views place fastener torque, lubricant, sealant, and thread-lock information at the relevant repair operation instead of leaving it only in a general table. This is factory-level repair information, not instruction in general mechanical fundamentals, and Suzuki reserves SPC electronic calibration for personnel specifically trained on that system.

The manual warns that tightening the flywheel with its dowel locations misaligned can cause severe damage, and that operating the DF300AP shift actuator with the clutch link rod detached can damage the actuator. Fuel-system service and work around the propeller or rotating driveline also require the pressure-relief, battery-isolation, ventilation, and safety practices described in the manual.
