Suzuki LT230GE ATV Service Manual, 1986–1987 (P/N 99500-42022-01E)

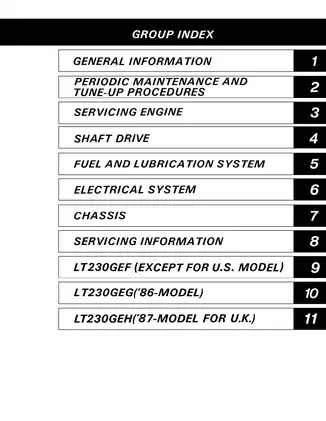

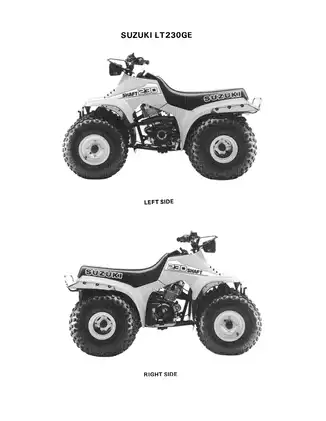

Suzuki Motor Corporation’s factory service manual (P/N 99500-42022-01E) covers the 1986–1987 LT230GE across eleven service groups. Integrated model sections cover the LT230GEF outside the U.S., LT230GEG, and U.K. LT230GEH.

PDF Bookmarks and Wiring Diagram Detail

Search, navigation, and readability: PDF text search is not available. Embedded bookmarks open the service groups and model supplements. Small wire-color codes and densely arranged wiring labels require enlargement for comfortable reading.

One printable English PDF contains 300 pages: 223 pages of core service sections, 71 pages of model supplements, and six cover, introductory, and publication pages, all included in the total.

Engine Overhaul, Shaft Drive, and Electrical Diagnosis

The following selected coverage highlights outline the main repair areas rather than reproduce the complete contents.

• Routine maintenance: Periodic maintenance and oil-viscosity charts, valve-clearance checks, cam-chain tensioning, pilot-screw adjustment, and spark-plug heat-range selection.

• Engine repair: Step-by-step instructions for engine removal, cylinder-head disassembly, crankcase separation, internal component inspection, reassembly, and recoil-starter service.

• Clutch and transmission: Initial-engagement and lock-up tests, clutch-plate inspection, gearshift-fork checks, reverse mechanism assembly, and transmission installation references.

• Shaft drive: Secondary and final bevel-gear disassembly, bearing inspection, shim selection, backlash measurement, and tooth-contact adjustment.

• Fuel system: Mikuni VM24SS carburetor disassembly, needle-valve inspection, float-height adjustment, and vacuum-operated fuel-pump fault checks.

• Electrical systems: PEI ignition diagnosis, charging-system tests, starter-motor disassembly and inspection, relay checks, and wiring diagrams.

• Brakes and chassis: Hydraulic front drum-brake and master-cylinder service, brake bleeding, rear drum-brake adjustment, steering, front suspension, and rear axle-housing repair.

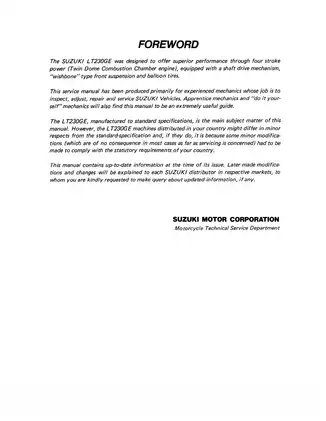

Written primarily for experienced mechanics, the manual also supports apprentice and DIY mechanics; internal engine and drivetrain work calls for the specified measuring equipment and special tools.

Model Supplements and Production Changes

The supplements are used with the earlier service groups for work that remains unchanged. They distinguish early and late engine mounts, clutch test speeds, and piston-ring layouts, while the U.K. section documents a revised gearshift cam.

The non-U.S. F-model section also illustrates carrier and trailer fittings. Model-specific maintenance schedules, wiring diagrams, and routing drawings keep these differences separate from the base specifications.

Engine Inspection and Assembly Limits

The top-end sections document valve-guide replacement and valve-seat cutting, with inspection limits for cylinder-head distortion, valve-seat width, cylinder wear, and piston-ring gaps. A valve-timing diagram supports camshaft installation; the transmission cross-sectional view identifies gear, washer, and circlip positions.

Crankshaft servicing specifies dedicated tooling, including crankshaft installer 09910-32812. The crankcase-separation caution identifies a risk of gearshift-cam-stopper damage if the internal components remain in the wrong case half.

The centrifugal clutch-shoe nut has a left-hand thread. The shoe assembly is nonserviceable, and the oil pump is replaced as a complete unit rather than internally overhauled.

Bevel-Gear Setup and Chassis Service

Tooth-contact illustrations distinguish contact at the tooth top and root, while shim tables support secondary and final gear setup. Together with the backlash checks, these references provide the adjustment information needed after gear or bearing replacement.

Chassis procedures extend to wheel-hub bearings, rear axle-housing bearings and seals, tie-rod orientation, and toe-in adjustment. Component-specific torque data accompany reassembly.

Brake-system work requires proper bleeding and an operational check before riding; consult a qualified technician if you are uncertain of the procedure.

Fuel Delivery and Electrical Fault Isolation

Fuel-system diagrams explain the vacuum-operated pump and the carburetor’s slow, main, and starter-with-limiter circuits. Troubleshooting tables connect starting, idling, overflow, and fuel-delivery complaints with the relevant inspections.

The charging section compares regulated output with generator no-load performance to distinguish generator faults from regulator/rectifier problems. Switch-continuity charts and wire, cable, and hose-routing drawings support circuit tracing and reassembly.

Oil-Fill and Battery Specification Preview

Engine-oil data distinguish service conditions: approximately 1,500 ml for an oil change, 1,700 ml when the filter is replaced, and 1,900 ml after an engine overhaul. The filter-installation warning identifies incorrect assembly as a cause of serious engine damage.

The battery section specifies the YB10A-A2 battery at 12 V, 39.6 kC (11 Ah), rated over 10 hours, alongside electrolyte checks and charging guidance.
