Suzuki LT230 & LT250 ATV Clymer Repair Manual, 1985–1990

This Clymer repair manual covers the 1985–1990 Suzuki LT230GE, LT-F230G, LT230S and LT250S ATVs, combining the main service chapters with an integrated 1987-and-later supplement.

Searchable Text, Chapter Bookmarks and Wiring Detail

Text search and diagram access: OCR text search is available throughout the main chapters, with embedded bookmarks for the chapters, supplement, index and wiring diagrams. Wiring-diagram text is not consistently searchable, and small wire-color labels require zooming.

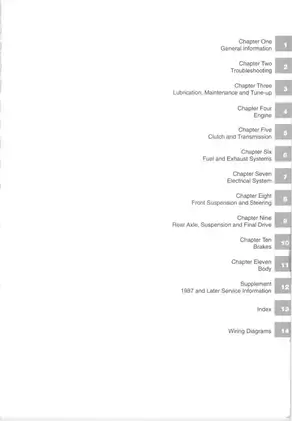

One printable English-language PDF contains 274 pages: 10 opening pages, 238 pages of main chapters, a 17-page supplement, a 4-page index and 5 wiring-diagram pages. The opening pages include the cover and one blank page, both already included in the total.

Engine, Drivetrain and Chassis Repair

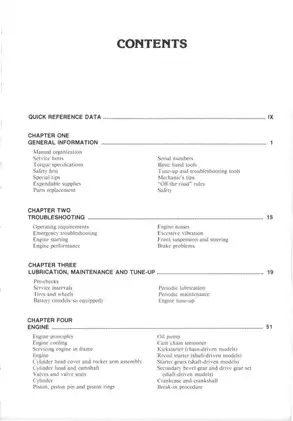

The following selected topics outline the repair coverage rather than reproduce the full contents. Other subjects include air-filter servicing and body-panel removal.

• Maintenance and tune-up: Lubrication schedules, compression testing, valve-clearance and cam-chain adjustment, control-cable checks, and carburetor idle adjustment.

• Engine repair: Step-by-step engine removal, crankcase separation and reassembly, with cylinder-head, camshaft, piston and crankshaft inspection.

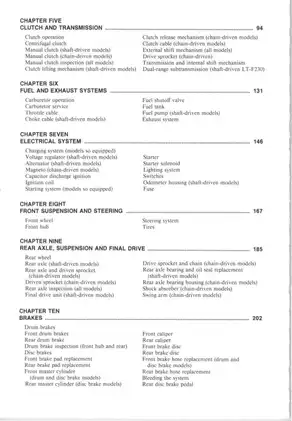

• Clutch and transmission: Centrifugal and manual-clutch service, internal shift-mechanism repair, and LT-F230G dual-range subtransmission disassembly and assembly.

• Fuel and exhaust: Carburetor disassembly and cleaning, float-level adjustment, shaft-drive fuel-pump replacement, and exhaust removal and leak checks.

• Electrical troubleshooting: Charging-system, stator, pickup-coil and ignition-coil tests, CDI diagnosis, starter-circuit checks, and model-specific wiring diagrams.

• Steering and suspension: Wheel-bearing replacement, tie-rod and steering-knuckle inspection, rear-axle service, and chain-drive swing-arm procedures.

• Brakes: Drum-shoe and disc-pad replacement, master-cylinder service, brake-hose replacement, parking-brake adjustment, and hydraulic bleeding.

This manual suits owners familiar with hand tools and experienced mechanics; major engine disassembly, precision measurements and press work require additional skills and equipment.

Engine Inspection and LT250S Updates

Component clearances, wear limits and torque tables accompany the illustrated repair procedures, giving mechanics a reference for evaluating removed parts and checking reassembly.

Repair limits: Valve and valve-seat service is referred to a machine shop. The oil pump is replaced as a unit, while specialized crankshaft work requires press equipment and fixtures.

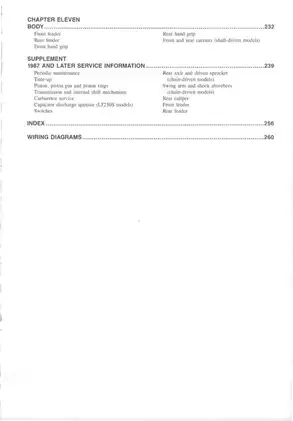

LT250S supplement: Unchanged operations use the LT230S procedures in the main chapters. Additional instructions address piston-ring installation differences, reverse-idler gear shaft components and the carburetor throttle-valve assembly.

Clutch Layouts and Final-Drive Service

Shaft-drive models combine a centrifugal clutch with a gearshift-operated wet multiplate clutch. Chain-drive models use a hand-operated wet multiplate clutch. Exploded views of the Manual and Centrifugal Clutch and Dual-Range Subtransmission identify the different assemblies.

Final-drive limits: The rear-drive chapter covers unit removal and external inspection, while internal final-drive repairs and shaft-drive axle bearing/seal work are referred to a dealer. Chain-drive shock-absorber coverage is limited to inspection and replacement rather than internal rebuilding.

The rear-axle procedures warn that heating the locknut and inner-nut area can destroy the axle’s heat-treated hardness.

Carburetor Setup and Fuel Delivery

Jetting and adjustment tables distinguish the shaft- and chain-drive carburetors, with a separate LT250S table in the supplement. The shaft-drive fuel-pump section describes the vacuum-operated arrangement and pump replacement; the pump is not treated as a rebuildable component.

Ignition Diagnosis and Wiring References

Separate shaft- and chain-drive ignition schematics accompany the electrical tests. The LT250S CDI terminal-resistance chart specifies Suzuki Pocket Tester P/N 09900-25002; an ordinary ohmmeter does not reproduce the chart’s readings.

Starting-system coverage includes motor removal, basic inspection and solenoid testing. Internal starter-motor repair is referred to an electrical shop.

The wiring diagrams distinguish early and later LT230S circuits, LT250S circuits, and LT230GE/LT-F230 wiring, including lighting and neutral/reverse switching where fitted.

Steering, Suspension and Hydraulic Brakes

Toe-in and tire-pressure tables support chassis checks. The supplement adds revised chain-drive rear-axle and swing-arm layouts, along with changes to the parking-brake arm.

Front Master Cylinder and Brake Lines illustrations distinguish the hydraulic front-drum layout from the disc-brake arrangement. Master-cylinder disassembly and inspection are covered; caliper rebuilding is referred to a dealer or brake specialist.

Brake work requires contamination control and the operating checks described in the manual before the ATV is ridden.

Head-Nut Torque and Subtransmission Oil Examples

The torque tables distinguish 6 mm cylinder-head nuts at 7–11 N·m from 8 mm nuts at 21–25 N·m. These figures apply to the head nuts, rather than the head-cover bolts.

The LT-F230G lubrication section specifies 240–270 cc of oil for refilling the dual-range subtransmission.
