Suzuki LT230E QuadRunner 230 ATV Service Manual, 1988–1992 (P/N 99500-42075-01E)

Suzuki Service Manual P/N 99500-42075-01E covers the LT230E QuadRunner 230 with cumulative updates for LT230EJ ('88), LT230EK ('89), LT230EL ('90), LT230EM ('91), and LT230EN ('92). This is the 6th edition, September 1991 (first edition April 1986; ©1990 Suzuki Motor Corporation).

Printable PDF, Chapter Bookmarks and Wiring Detail

Text search and diagram detail: PDF text search is not available. Embedded bookmarks provide access to the main chapters and model-year updates. Small wiring-diagram labels require zooming to read comfortably.

One printable, English-language 281-page PDF, including four opening pages, the publication-details page, the rear cover, and all cumulative model-year update chapters.

Engine Overhaul, Electrical Diagnosis and Chassis Service

The following selected service topics are examples from the manual, not a complete table of contents. Additional topics include fuel-cock and fuel-strainer servicing.

• Engine repair: Step-by-step engine removal, disassembly and reassembly, cylinder-head and valve service, crankshaft installation, cam timing, and recoil-starter repair.

• Clutch and transmission: Automatic-clutch engagement and lock-up tests, clutch inspection, gear and shift-fork servicing, reverse-mechanism assembly, and starter-clutch repair.

• Fuel and lubrication: Mikuni carburetor removal, disassembly, inspection and reassembly, float-height adjustment, oil-pressure testing, and oil-pump removal and installation.

• Electrical diagnosis: Charging-output checks, CDI ignition testing, starter-motor overhaul, starter and neutral relay inspection, switch checks, and battery service.

• Hydraulic brakes: Front and rear pad replacement, caliper repair, master-cylinder rebuilding, brake-system bleeding, and parking-brake adjustment.

• Chassis and suspension: Wheel and tire service, steering and double-wishbone front-suspension repair, toe-in adjustment, swingarm work, and rear axle-housing removal and reassembly.

• Troubleshooting and shop data: Symptom/cause/remedy charts for the engine, carburetor, electrical system, steering, suspension and brakes, plus torque tables, wear limits and adjustment specifications.

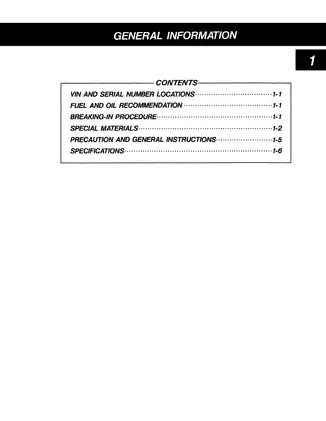

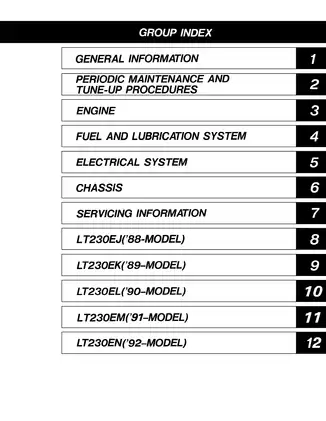

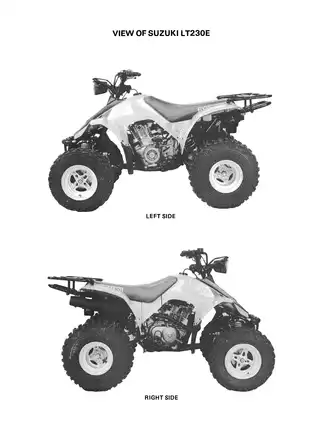

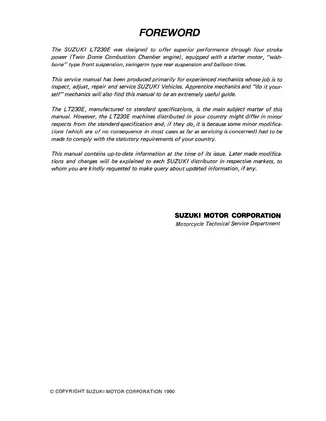

Suzuki wrote this manual primarily for experienced mechanics; the foreword also identifies apprentice and do-it-yourself mechanics as users, while internal-engine and electrical work calls for workshop knowledge and the specified measuring equipment and pullers.

Internal Engine and Driveline Work

Inspection depth: Engine servicing covers rocker arms, valves and guides, valve seats, camshaft and chain, cylinder, piston and rings, connecting rod, crankshaft, clutch assemblies, and crankcase bearings. The transmission cross-sectional view supports identification of gear, washer and circlip positions during assembly.

Clutch limits: The centrifugal clutch shoe assembly is identified as nonserviceable. The surrounding procedures cover its removal and inspection, along with clutch plates, springs, release components and the reverse mechanism.

Periodic-service procedures cover valve clearance, manual cam-chain tensioner adjustment, clutch adjustment, drive-chain care, brake inspection and bleeding, steering checks, fastener torque checks, and general lubrication.

Carburetor, Lubrication and Electrical Tests

The Mikuni VM24SS section explains the slow, main, starter-limiter and float circuits alongside the servicing procedures. The lubrication-system chart traces oil delivery through the engine; the pressure-test section relates abnormal readings to possible lubrication faults.

Oil-pump scope: Removal and installation are covered, but Suzuki specifies replacement of the complete pump unit rather than internal pump overhaul.

Charging and ignition circuits, the starter-system diagram, and base-model and LT230EJ wiring diagrams support electrical fault tracing. Component checks address the AC generator, regulator/rectifier, magneto coils, ignition coil, CDI unit, starter motor, starter and neutral relays, switches, lamps, and battery.

Cumulative J-to-N Model-Year Updates

The year sections are cumulative supplements within this manual. The LT230EJ section directs readers to Sections 1–7 for LT230EH ('87-model) baseline procedures, then supersedes them where the 1988 machine changed.

Its updates address the starter clutch, drive-chain adjustment, battery setup and charging, tire replacement and bead seating, rear shock absorber, rear axle housing, wiring, cable and hose routing, and revised torque data.

The 1989 LT230EK section adds revised one-way and starter-clutch procedures plus cable, harness and magneto-lead routing. LT230EL and LT230EN mainly provide specifications and service-data tables. LT230EM adds revised drive-chain adjustment and rear axle-housing reassembly information.

Use the base procedure together with each applicable model-year change. This keeps earlier instructions from being applied where a later section specifies different components or assembly details.

Special Tools and Assembly Cautions

The tool lists identify crankshaft installer 09910-32812, crankcase separating tool/crankshaft remover 09920-13120, clutch sleeve hub holder 09920-53730, rotor remover 09930-31940, rear axle nut wrench 09940-92420, and steering-knuckle arm remover 09942-72410.

Service-data tables distinguish standard dimensions from wear limits and provide carburetor settings, electrical test values, brake and wheel measurements, suspension settings, and component-specific tightening torques.

Assembly traps: Striking the crankshaft into the crankcase, even with a plastic hammer, can disturb crankshaft alignment. During camshaft installation, an unsupported cam chain can become trapped between the crankcase and drive sprocket, and the cam-sprocket locating pin can fall into the crankcase.

Fuel handling, tire bead seating, and hydraulic brake work carry explicit fire, inflation, and fluid-handling warnings. Follow the factory cautions and use qualified shop help when safety-critical repair work exceeds your training or equipment.

A Preview of Valve and Carburetor Adjustment Data

Cold valve clearances: The LT230EJ–LT230EN service tables specify 0.03–0.08 mm for the intake and 0.08–0.13 mm for the exhaust. These values accompany the rocker-arm clearance adjustment procedures.

Carburetor float height: The Mikuni VM24SS specification is 24.5 ± 1.0 mm, measured with the gasket removed and the float arm just contacting the needle valve. The fuel-system section explains the measurement and adjustment.
