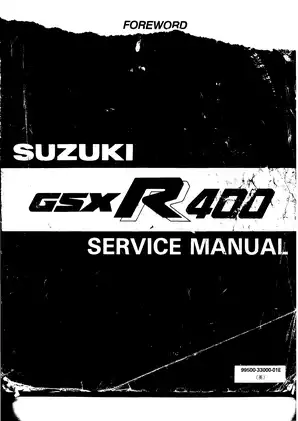

1984–1986 Suzuki GSX-R400 Service & Repair Manual (P/N 99500-33000-01E)

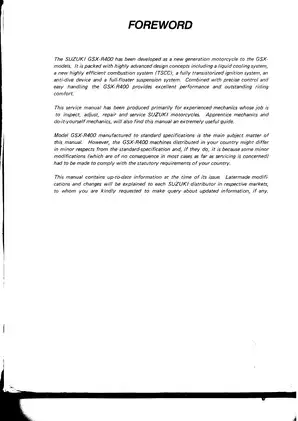

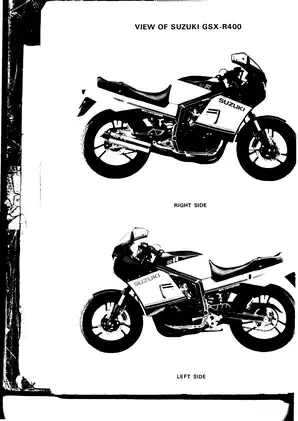

Suzuki's factory service manual, P/N 99500-33000-01E, covers the standard-specification GSX-R400. The foreword notes that machines supplied to individual markets may differ in minor details.

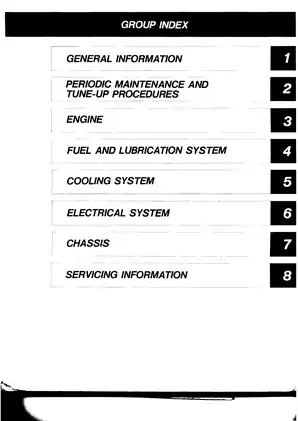

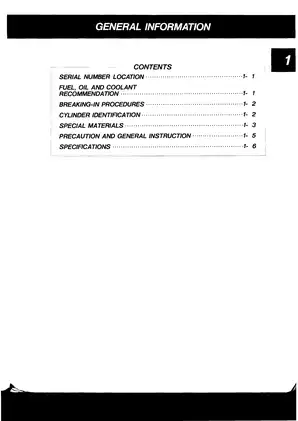

The 245-page PDF contains all eight factory groups, including Chassis and Servicing Information, and continues through Service Data page 8-29.

• Engine repair: Compression testing, engine removal and reinstallation, internal disassembly and reassembly, cylinder-head servicing, and camshaft and cam-chain inspection.

• Clutch and transmission: Wet multi-plate clutch and starter-clutch repair, six-speed constant-mesh transmission disassembly, gear inspection, and shift-fork checks.

• Carburetors and lubrication: Twin AISAN AS27VW carburetor overhaul and synchronization, fuel-level checks, oil-pressure testing, and oil-level switch diagnosis.

• Cooling system: Radiator and cap pressure tests, thermostat inspection, water-pump overhaul, and cooling-fan circuit diagnosis.

• Electrical diagnosis: Charging, transistorized ignition, starter, instrument, lamp, switch, and battery testing, with system circuits and the wiring diagram.

• Brakes and chassis: Caliper and master-cylinder repair, brake bleeding, ANTI-DIVE fork service, steering bearings, wheels, and Full-Floater rear suspension.

• Periodic service and reference data: Maintenance schedules, troubleshooting tables, tightening torques, fluid capacities, wear limits, and illustrated special-tool listings.

Suzuki wrote this manual primarily for experienced mechanics and also identifies apprentice and do-it-yourself mechanics as readers; internal engine work calls for precision measuring equipment and the specified service tools.

Engine, Clutch, and Transmission Repair

Internal inspection: The four-stroke, water-cooled DOHC four-cylinder engine coverage includes cylinder-head and cylinder distortion, valve stem and guide wear, valve-seat width, and cam height and runout. Piston and cylinder measurements address running clearance, piston-ring grooves and end gaps; cam-chain elongation is also checked.

Compression specifications include cylinder-to-cylinder comparison limits. Camshaft installation procedures cover valve timing.

Crankshaft and bearings: Connecting-rod clearances, crankshaft journal oil clearance, and thrust clearance accompany bearing-selection tables. Crankcase and crankshaft identification codes help match replacement bearings to the engine.

Transmission assembly: Countershaft and driveshaft procedures cover gear inspection, shift-fork clearance, circlips, thrust washers, bushings, and reassembly orientation. The Transmission Gears and Related Parts view shows the gear-stack arrangement. Clutch inspection distinguishes drive-plate thickness from driven-plate distortion and includes spring and bearing checks.

Factory cautions address valve-guide installation damage to the guide or cylinder head, plus uneven camshaft-holder tightening that can damage the head or holder thrust surfaces.

AISAN Carburetors and Engine Lubrication

The carburetor chapter explains diaphragm/piston operation and the slow, main, starter, and float circuits. Procedures cover carburetor separation, disassembly and reassembly, needle-valve inspection, float-height adjustment, fuel-level checking, and idle adjustment.

Carburetor balancing includes gauge calibration before synchronization. Lubrication coverage adds oil-sump filter servicing and the Lubrication System Chart for tracing oil flow. Suzuki specifies oil-pump assembly replacement rather than internal overhaul.

Periodic Maintenance and Adjustment

The maintenance schedule separates initial service from recurring mileage and time requirements. It addresses the air cleaner, engine oil and filter, coolant, radiator hoses, brake fluid and hoses, fuel lines, drive chain, steering, front fork, brakes, and chassis fasteners.

Intake and exhaust valve-clearance procedures, cylinder-head nut torques, engine and fork oil capacities, and fluid specifications are included. Chain-care cautions explain the risk of solvent damage to the O-rings.

Cooling-System Testing and Water-Pump Repair

Water-pump procedures include bearing and seal replacement. Radiator and cap tests provide acceptance criteria, while thermostat checks cover opening temperature and valve lift. Separate tests address the thermo-switch, fan-motor relay, fan motor, and temperature gauge.

The Cooling System flow diagram relates the pump, engine, thermostat bypass, and radiator, supporting coolant-circulation diagnosis.

Electrical Testing, Wiring, and Troubleshooting

Charging diagnosis separates AC-generator no-load output testing from regulator/rectifier checks. Ignition tests address the signal generator, ignition coils, and ignitor. Starter coverage adds motor brush, commutator, armature, and relay inspection.

Combination-meter and water-temperature-meter checks sit alongside lamp replacement, switch-continuity tables, and battery servicing. Charging System, Ignition System, and Starter System circuits support fault tracing. The overall Wiring Diagram adds wire-color codes, with separate wire, cable, and hose routing views.

Troubleshooting tables connect starting, running, charging, cooling, and chassis complaints with possible causes and remedies, helping narrow the fault before dismantling.

Brakes, ANTI-DIVE Forks, and Full-Floater Suspension

Chassis procedures cover fairing removal, wheel bearings, axle and rim runout, tubeless-tire removal and mounting, and steering-stem adjustment. Front and rear brake sections detail caliper and master-cylinder disassembly, inspection, and reassembly.

Fork service includes ANTI-DIVE modulator plunger and valve inspection. Front-brake bleeding specifically addresses air trapped in that system.

Rear swingarm, cushion rod, lever, and linkage-bearing work accompanies hydraulic spring-preload adjustment. The rear shock absorber itself is non-serviceable.

Suzuki Service Tools

Specified tools include compression gauge 09915-64510, clutch sleeve hub holder 09920-53710, and carburetor balancer gauge 09913-13121. Diagnostic procedures also reference oil-pressure gauge 09915-74510, Pocket Tester 09900-25002, and Electro Tester 09900-28106.

Safety Notice: Consult a qualified technician for major engine, brake-system, or electrical repair that exceeds your tools or experience.

PDF Navigation and Diagram Readability

The page total includes two cover pages, three introductory pages, eight section contents pages, one publication page, and one extra copy of cooling-system page 5-3. The extra copy is distorted near the top; a clearer version follows immediately. PDF text search and embedded bookmarks are unavailable; small labels in the main wiring diagram require zooming.
