Polaris Ranger RZR 170 UTV Service Manual – 2009 (P/N 9922134)

187 Pages • 1 Printable PDF (English) • Download

4.7starstarstarstarstar_half(3)
$17.40 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

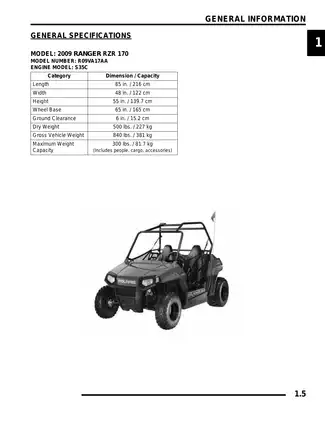

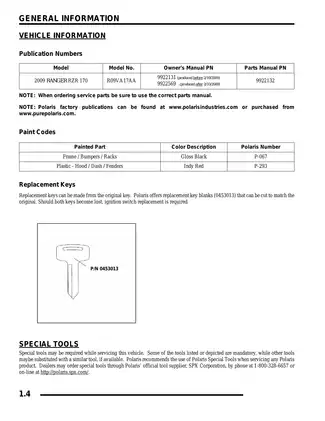

Polaris Models Covered & Key Technical Specifications

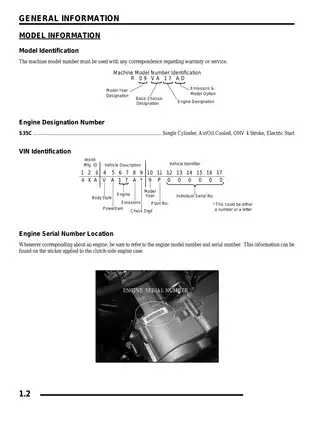

Models & Model Codes: Ranger RZR 170 (R09VA17AA)

Sub-models / Variants: 169cc engine (S35C; ES35C in engine service data)

Model Year: 2009


  • Engine: Single Cylinder, Air/Oil Cooled, OHV 4-Stroke

  • Displacement: 169cc

  • Transmission: Polaris Automatic CVT

  • Drive System: Chain Drive

  • Fuel System: Keihin Carburetor, Fuel Pump

  • Ignition: CDI, Non-Adjustable Timing

  • Starting System: Electric Start

  • Brakes: Foot Actuated 4-Wheel Hydraulic Disc

  • Tire Pressure: 3 psi (20.7 kPa) front and rear

  • Idle Speed: 1700 ± 100 RPM

Polaris Manual Features & Selected Content Preview

This Polaris service manual, P/N 9922134, covers the 2009 Ranger RZR 170 (R09VA17AA), with maintenance, mechanical repair, and electrical diagnosis for the carbureted youth UTV.

Search, Bookmarks, and Wiring Diagram

Finding service information: Search the service text by keyword or use the embedded bookmarks to open the included chapters and the wiring sheet. The wiring sheet has faint lines, and small connector labels and wire codes are readable when zoomed in. Text search finds the sheet title only.

The download contains one printable, 187-page English PDF. The total includes one maintenance log page, one notes page, and the final landscape wiring diagram.


Engine, Drivetrain, and Electrical Service

These selected highlights give a look at the repair coverage. The manual also includes a Periodic Maintenance Chart and daytime running light tests.

  • Engine repair: Engine removal, top-end and bottom-end disassembly, valve-seat reconditioning, cylinder inspection, camshaft timing, and crankcase reassembly.
  • CVT and transmission: Step-by-step procedures for drive-belt replacement, plus drive and driven clutch service, internal gear inspection, output-shaft housing service, and pinion-depth adjustment.
  • Brakes: Hydraulic bleeding, front and rear pad and disc replacement, parking-brake cable service, and replacement of calipers and the master cylinder.
  • Chassis and steering: Front A-arm replacement, hub bearing and seal service, rear swing-arm and axle work, steering-shaft removal, and steering gearbox replacement.
  • Fuel and air intake: Air-filter service, choke and throttle cable adjustment, carburetor idle and pilot-air-screw adjustment, fuel-filter replacement, and fuel-line inspection.
  • Electrical troubleshooting: Electronic Throttle Control (ETC) switch adjustment, ignition and charging tests, starter-system diagnosis, and component test specifications.

This manual suits technicians equipped for precision engine measurement and electrical testing. Polaris specifies that CVT maintenance and repair should be performed by a certified Polaris Master Service Dealer technician.

Engine Inspection and Reassembly

The S35C engine is identified as ES35C in the engine service tables. Cylinder-head work includes rocker and camshaft inspection, valve-guide measurement, and valve sealing checks. The maintenance chapter also covers compression and leakdown checks and intake and exhaust valve clearance adjustment.

Bottom-end coverage includes bearing inspection and balance-shaft installation. The crankshaft and oil pump are treated as replacement assemblies. The Oil Flow Diagram and breather/oil-separator section show how lubrication and crankcase ventilation are routed.

Separate camshaft timing illustrations cover service with the stator housing installed or removed. An overlong compression-test adapter can damage the cylinder head, and forcing the left-hand-threaded crankshaft slotted nut in the wrong direction can damage its threads.

Clutch, Gearcase, and Chassis

Clutch inspection covers roller tracks, sheave faces, the driven spring, and centrifugal friction shoes. The CVT Air Duct System diagram shows where to check for blockage or poor sealing when investigating overheating or water ingress.

Gearcase inspection covers the shift fork, shift drum, and gear engagement surfaces. The output-gear shimming procedure sets pinion depth only. The Cab Frame Exploded View helps identify assembly hardware, and the rear axle section shows bearing and seal replacement in the axle housing.

Support the vehicle on jack stands when working underneath it, and disconnect the battery for component removal as directed in the manual.

Brake Diagnosis and Replacement

Troubleshooting covers brake squeal, pedal vibration, dragging calipers, and brake lockup. The chapter also explains pad burnishing and specifies complete-assembly replacement for the calipers and master cylinder.

Carburetor Maintenance and Electrical Tests

The Keihin carburetor coverage includes float-bowl draining. The Jetting Chart compares settings by altitude and temperature, and the Clutch Chart lists shift weights by altitude. Fuel-system scope: The separate Chapter 4 referenced in the maintenance section is outside this download, so carburetor coverage is limited to the included maintenance procedures.

The electrical chapter covers battery care, stator testing, and CDI output testing with the PV-39991 peak-reading adapter. The Transmission Switch – Circuit Breakout and ignition-limiter notes help distinguish gear-position or ETC inputs from ignition-component faults. The starter section covers disassembly, testing, and cleaning, with assembly replacement where required.

Selected Cylinder-Head and Piston-Ring Limits

For ES35C cylinder-head inspection, the mating-surface warpage limit is 0.002 in. (0.05 mm). The engine chapter pairs that limit with a flatness check.

For the top piston ring, the standard installed end gap is 0.0059–0.013 in. (0.15–0.35 mm), with a service limit of 0.0196 in. (0.5 mm). The inspection procedure explains where to measure the gap and provides separate data for the other rings.
