Polaris 2013 Ranger RZR, RZR S & RZR 4 UTV Service Manual (P/N 9924125)

430 Pages • 1 Printable PDF (English) • Download

4.6starstarstarstarstar_half(5)
$17.98 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Polaris Models Covered & Key Technical Specifications

RANGER RZR — R13VH76AC, R13VH76AD, R13VH76AN, R13VH76AS (engine: 1204670 RZR800-13)

RANGER RZR EPS — R13VH7EAI (engine: 1204670 RZR800-13, PVT with EBS)

RANGER RZR S — R13VE76AD, R13VE76AI, R13VE76AS, R13VE76AW (engine: 1204670 RZR800-13)

RANGER RZR S INT'L — R13VE76FI, R13VE76FX (engine: 1204670 RZR800-13)

RANGER RZR 4 — R13XE76AD (engine: 1204671 RZR800-13)

RANGER RZR 4 EPS — R13XE7EAI (engine: 1204671 RZR800-13)

Sub-models / Variants: EPS (Electronic Power Steering), INT'L (International), L.E. (Limited Edition)

VIN Identifiers: Position 4 (chassis): V = RZR and RZR S families, X = RZR 4 family. Position 7 (engine modifier): E = EPS on RANGER RZR EPS and RANGER RZR 4 EPS. Position 8 (category): F = RANGER RZR S INT'L.

Model Year: 2013


  • Engine: 760cc H.O. Twin Cylinder, Liquid Cooled, 4-Stroke

  • Fuel System: Bosch M17 EFI

  • Compression Ratio: 11:1

  • Compression Pressure: 165–185 PSI

  • Engine Idle Speed: 1250 ± 100 RPM

  • Transmission Type: Polaris Automatic PVT (Standard PVT on the other listed models)

  • Engine Oil Capacity: 2 US Quarts (1.9 L)

  • Coolant Capacity: 4.8–5.5 quarts (4.5–5.2 L)

  • Spark Plug Gap: 0.035 in (0.9 mm)

  • Drive System: 4x4, 3.82:1 Front Gearcase ratio

Polaris Manual Features & Selected Content Preview

This Polaris service manual covers the 2013 RANGER RZR, RZR S, and RZR 4 800-series UTVs, including EPS and International versions and the RZR 4 Limited Edition suspension. This is the preliminary version of P/N 9924125 (copyright 2012 Polaris Sales Inc.).

PDF Search, Bookmarks, and Wiring Detail

Finding information: Text search covers the main service text and the wiring-sheet titles. Embedded bookmarks open chapters, subsections, and wiring sheets. Some graphic tables and diagram labels fall outside text search. Small wiring labels are readable when zoomed in, and some linework is faint.

The download is one printable English PDF with 430 pages, including 410 service and reference pages, six notes pages, and 14 wiring-diagram sheets.


Engine Overhaul, Drivetrain Service, and Electrical Testing

This selection of workshop procedures includes major repairs and diagnostic tests. The manual also covers spark arrestor maintenance and throttle release switch testing.

  • Engine repair: Engine removal, cylinder-head and crankcase disassembly, piston and crankshaft inspection, valve seat reconditioning, and cylinder honing.
  • Cooling and lubrication: Cooling-system pressure testing and bleeding, radiator and water-pump service, oil-pressure checks, and oil-pump priming.
  • EFI diagnosis: Bosch M17 fuel pump and injector testing, Idle Air Control (IAC) checks, Throttle Position Sensor (TPS) adjustment, and T-MAP sensor replacement.
  • PVT and transmission: Drive and driven clutch service, step-by-step instructions for drive belt replacement, clutch offset and shift cable adjustment, and transfer-case and shift-housing repair.
  • Final drive: Centralized Hilliard AWD diagnosis and overhaul, armature plate inspection, CV joint and boot replacement, and standard and International rear gearcase service.
  • Steering, suspension, and brakes: EPS and non-EPS steering removal, FOX Podium shock rebuilds, wheel toe alignment, brake bleeding, and caliper overhaul.
  • Electrical troubleshooting: Model-specific wiring diagrams, instrument-cluster pinouts, stator testing, starting and charging flowcharts, and EPS fault diagnosis.

The manual suits experienced repair technicians equipped for precision measurements and EFI diagnostics. Polaris specifies trained, certified Master Service Dealer technicians for PVT service.

Maintenance and Internal Engine Inspection

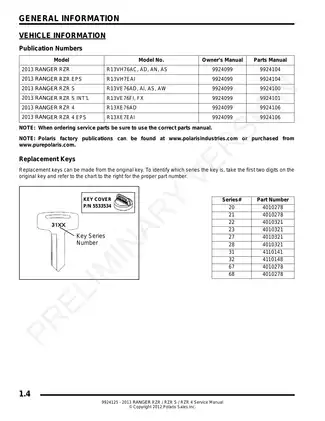

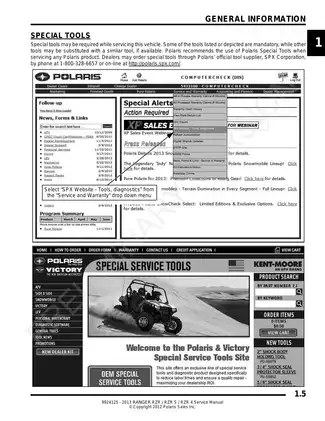

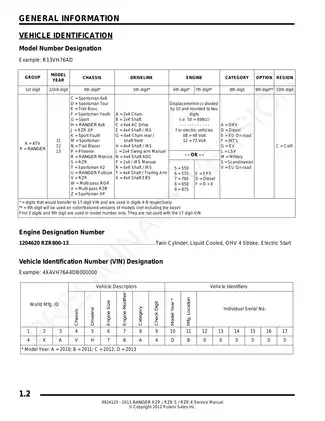

Identification pages show VIN and engine serial-number locations alongside model-specific chassis specifications. Maintenance charts combine pre-ride checks with hour, mileage, and calendar intervals, with shorter intervals for severe use.

Compression and leakdown tests accompany inspection limits for pistons, rings, crankshaft components, and camshaft journals. Cylinder-head assembly uses a staged bolt-tightening sequence. Honing is covered for deglazing, and Polaris specifies cylinder replacement when the plated bore is excessively worn.

The crankcase and oil-pump exploded views show how components fit together. The coolant flow diagram helps trace circulation through the engine and radiator.

Bosch M17 Fault Codes and ECU Reflashing

The diagnostic trouble code table and component tests help distinguish wiring, sensor, and fuel-delivery faults before parts are replaced. Digital Wrench coverage includes live data, guided diagnostics, and ECU reflashing. The documented reflash requires separate diagnostic equipment, software, and dealer-site authorization.

The Bosch connector is bonded to the injector. The manual shows the disconnect point on the vehicle harness to protect the injector and connector during service. EFI illustrations also identify the sensors and their connections.

PVT Clutch Setup and Gearcase Repair Limits

The high-altitude clutch charts distinguish the RANGER RZR EPS EBS setup from the standard setup. Separate belt and driven-clutch procedures cover EBS and non-EBS configurations.

Transmission procedures cover gears, bearings, and shift components. Shift-housing repairs require transfer-case disassembly. The maintenance section also covers routine fluid service for the front and rear gearcases.

The RZR S International section covers the unlockable rear differential and differential-solenoid service. Polaris specifies assembly replacement for damaged factory-matched rear gearcase components or housings. Ring-and-pinion shimming data are excluded from the service coverage. The CV procedures cover inner-joint and boot replacement and caution against fully dismantling the precision-fitted plunging joints.

FOX Shock Variants, EPS, and Brakes

Shock procedures distinguish RZR S Piggyback units, RZR 4 Limited Edition Piggyback units, and RZR 4 base-model Top Fill units. Spring-preload settings and the compression adjustment table accompany reservoir, seal, and internal floating-piston work. Use proper lifting equipment and protective gear, and follow the manual’s high-pressure nitrogen precautions for FOX shock service.

The EPS system breakout and fault charts help trace steering-assist faults with the warning lamp on or off. Polaris cautions that striking the installed steering wheel or shaft can permanently damage the EPS unit.

Brake procedures distinguish the RZR 4 front calipers and cover piston inspection, seal replacement, and disc checks.

Examples of TPS Settings, Bolt Torque, and Gearcase Capacity

For throttle position sensor adjustment, the manual specifies 0.46 ± 0.03 V DC when using Digital Wrench and 0.700 ± 0.050 V DC when using TPS Tester PN 2201519-A.

The standard metric bolt table lists 25 N·m for dry M8 grade 8.8 threads. The transmission main gearcase takes 24 fl oz (710 mL) of Polaris AGL Plus.
