Porsche 911 Turbo (930) 1975–1989 Workshop Manual Set (P/N WKD 481 321)
973 Pages • ZIP Download: 6 Printable PDFs • 139.12 MB
Porsche Models Covered & Key Technical Specifications
Model & Model Code: 911 Turbo (Typ 930)
Sub-models / Variants: Turbo 3.0 (engine types 930/50, 930/51, 930/52, 930/53, 930/54); Turbo 3.3 (engine types 930/60, 930/61, 930/62, 930/63, 930/64, 930/65, 930/66, 930/68)
Model Years: 1975–1989 (1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989)
-
Engine displacement: 2993 cc or 3299 cc depending on year/model
-
Engine configuration: 4-stroke, air-cooled, dry sump, light alloy block
-
Max engine output: 180 kW to 221 kW (245–300 HP, DIN; standard engine specifications)
-
Compression ratio: 6.5:1 (Turbo 3.0), 7.0:1 (Turbo 3.3)
-
Fuel system: Continuous fuel injection with twin electrical roller cell pumps
-
Transmission: Turbo 3.0 — 4-speed manual 930/30, 930/32 (not for USA) or 930/33; Turbo 3.3 — 4-speed manual 930/34 or G50/50 5-speed manual
-
Battery voltage: 12 V
-
Brake system: Dual-circuit hydraulic discs with pneumatic booster; early Turbo 3.0 specifications limit the booster to LHD versions
-
Clutch serial break: Nine DIN 931 clutch bolts from transmission No. 776 0013 or 776 1011
-
Front wheel hub serial break: Grease caps with welded threaded adapters from chassis No. 93 Z BS 000094
Porsche Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|
| 930 Turbo workshop material — Engine, turbocharger, fuel injection and ignition | 177 |
| 930 Turbo workshop material — Transmission, clutch and final drive | 99 |
| 930 Turbo workshop material — Chassis, brakes and steering | 74 |
| 930 Turbo workshop material — Body, heating and instruments | 31 |
| 930 Turbo electrical material — Turbo current-flow and wiring diagrams, plus selected Carrera circuit sheets | 185 |
| Turbo Carrera Workshop Manual — US Edition 1976, P/N WKD 481 321 (US Order No.), Print No. 48 13.21; later replacement pages included | 407 |

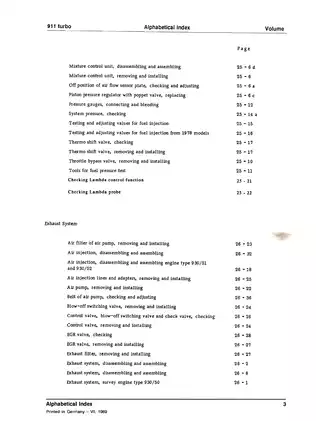

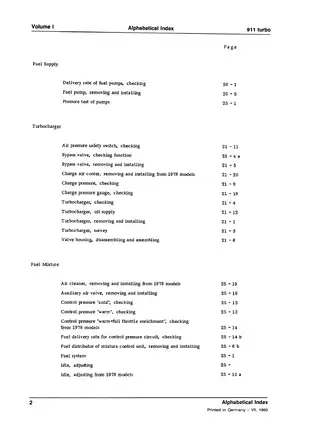

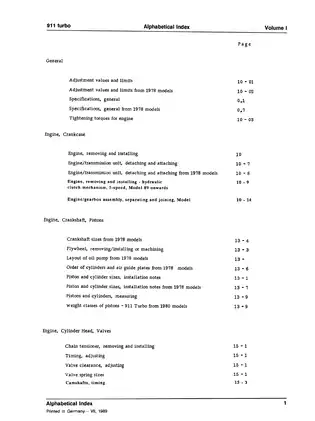

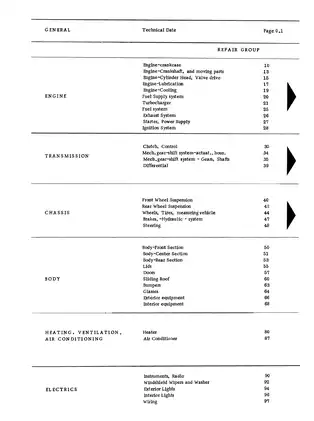

The US base publication is provided with later, system-organized replacement and supplement pages printed through July 1989. The files overlap substantially and use Porsche's repair-group numbering, which corresponds to labor and warranty operations.
Repair scope: This material describes Turbo-specific differences; Porsche refers to the separate 911 Repair Manual for other work and to service-training literature for general design and function. The Model 89 pages identify the reinforced G50/50 five-speed and hydraulic clutch changes, while referring to the separate Carrera workshop manual for gearbox maintenance information.
Text Search, Wiring Detail and PDF Contents
Search and diagram detail: The Engine, Transmission, Chassis and Body/Heating files are partially searchable; the Electrics and US base files have no PDF text search. None has embedded bookmarks. Small wiring labels require zooming, and some in the Electrics file remain faint or difficult to read.
The ZIP contains six printable PDFs totaling 973 pages, including three covers, 21 other introductory and index pages, 20 section dividers and eight blank pages. The total includes overlapping material across the files.
Turbo Engine, Drivetrain and Electrical Work
Selected coverage: These highlights are a selection rather than a complete contents list. Other topics include intermittent-wiper circuits and Turbo decal placement.
-
Engine service: Step-by-step engine removal, piston and cylinder inspection, flywheel machining, camshaft timing, valve adjustment and chain-tensioner replacement notes.
-
Turbocharging and CIS: Turbocharger and wastegate service, charge-pressure checks, intercooler removal, fuel-pressure diagnosis, mixture-control work and Lambda checks.
-
Ignition diagnosis: Bosch CDI troubleshooting, distributor checks, ignition-timing adjustment, advance-control tests and delayed ignition cut-off information.
-
Transmission and final drive: Four-speed gearbox disassembly, selector-fork adjustment, synchronization checks, differential assembly and drive-pinion/ring-gear setup.
-
Chassis and brakes: Axle removal, wheel-bearing adjustment, alignment, brake-pad and caliper repair, parking-brake work and steering assembly inspection.
-
Body and heating: Turbo body reference dimensions, straightening-bench attachments, engine-lid work, center-console removal and automatic-heater diagnosis.
-
Electrical reference: Year-specific current-flow and wiring diagrams with system legends, fuse assignments, component and plug locations, ground points and accessory circuits.
Porsche describes this repair material as information for shop foremen and mechanics; gearbox setup, CIS pressure testing and body-dimension work assume mechanical experience and workshop measuring equipment.
Engine Variants and Fuel Diagnosis
The engine data distinguishes Turbo 3.0 and Turbo 3.3 configurations for Europe, the USA, California and Japan. Reference pages address the light-alloy crankcase, crankshaft and flywheel, Nikasil cylinders, piston grading, cylinder heads and valve gear, cooling fan, dry-sump oil circuit and oil coolers. Turbocharger scavenge-pump removal and installation are also documented.
CIS/K-Jetronic diagnosis separates pump delivery, cold and warm control pressure, full-throttle enrichment, system pressure and residual-pressure checks. It also covers gauge connection and bleeding, air-flow sensor-plate position, fuel-distributor replacement, idle/CO adjustment and Lambda testing. Internal fuel-distributor disassembly is expressly prohibited.
Temperature-dependent pressure charts and regional hose plans help match the diagnostic information to the engine configuration. Fuel-testing equipment includes the P 378 a pressure gauge and P 377/P 229 c mixture-adjustment tools.
Exhaust sections distinguish engine-type layouts, air injection, reactors, EGR and exhaust-temperature control. The idle-adjustment section warns that leaving the adjustment wrench in the mixture-control unit during acceleration can severely damage the unit.
Gearbox Setup and Clutch Handling
Four-speed repair information explains shim selection, matched pinion/ring-gear pairs and limited-slip differential disc arrangements. The tool pages identify the 9102 clutch mandrel, P 254 bearing tools, P 375 mandrel, 9145 measuring sleeve and 9196 gauge plunger.
The clutch instructions warn that loading the pull-type release bearing toward the driven plate, or resting the removed pressure plate on the bearing, can damage it.
Chassis Measurements, Body and Heating
Chassis pages distinguish front brake-disc/hub versions and revised caliper bridges and spring plates, alongside wheel-load and alignment data. Factory tables supply component torques, wear limits, machining dimensions and adjustment specifications.
Body information includes floor/frame checkpoints, repair reference dimensions, P 863/P 863a checking gauges and ENS 77.303 straightening-bench attachments. Automatic-heater diagnosis checks sensors and control-unit power supply; relay locations and electronic-speedometer sensor tests are also included.
Wiring Sheets and Diagnostic References
The Turbocharger drawing and engine-type Exhaust System Layouts identify charging and exhaust components. Regional Hose Connection Plans and ignition advance curves complement the pressure and timing tests.
Model 76–78 Turbo USA current-flow diagrams and Model 86–89 Turbo wiring sheets distinguish K-Jetronic/oxygen-sensor circuits, heating and air conditioning, central locking and instruments. Accessory sheets cover power windows, headlight washers, automatic heating, the M 559 air conditioner and the alarm system.
Fuel-pressure testing, engine removal, brake repair, and air-conditioning work involve pressurized systems or heavy assemblies; use the specified equipment and normal shop safety practices.
Sample Turbocharger Limits and CIS Test Values
Turbocharger inspection data lists maximum shaft end play of 0.35 mm and turbine-end radial play of 0.65 mm. The checking section distinguishes the two measurements and illustrates the inspection points.
For engine 930/68, the K-Jetronic table lists warm control pressure of 3.75 ± 0.20 bar and 2.90 ± 0.20 bar with full-throttle enrichment. These entries accompany the warm-regulator tests and a separate temperature-dependent cold-pressure chart.
