Porsche 986 Boxster & Boxster S Workshop Manual Set, 1996–2004 (P/N WKD 483 521)

The workshop volumes pair repair procedures with system diagnosis and circuit diagrams. The owner's manual covers controls, care, and emergency operation; the service brochure explains selected model changes rather than replacing workshop repair instructions.

Wiring coverage: The circuit-diagram volumes contain 1997–1999 and 2000–2001 diagrams.

PDF Search, Bookmarks, and Diagram Detail

Search and navigation: Most workshop volumes have searchable OCR text, with some illustrations excluded. Engine Part 2 has no searchable body text, and the owner's manual has unreliable text search, including its embedded copy. Diagnosis Part 2 contains cross-file bookmarks that rely on the original filenames and folder layout; an additional engine-disassembly link is broken. The owner's manual has section bookmarks; the other PDFs have none. Small wiring labels generally require zooming. Some lettering is soft, and the ABS overview in Running Gear has faint lines.

The ZIP download contains 16 printable English PDFs totaling 3,331 pages, including original front matter and the duplicated owner's manual. The total without the second 255-page copy is 3,076 pages.

Mechanical Repairs, Roof Service, and Electronic Diagnosis

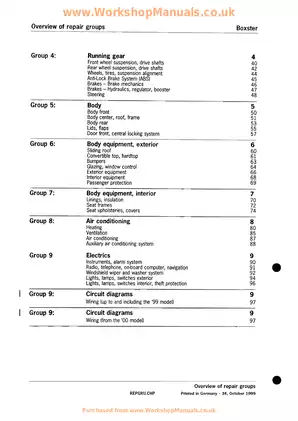

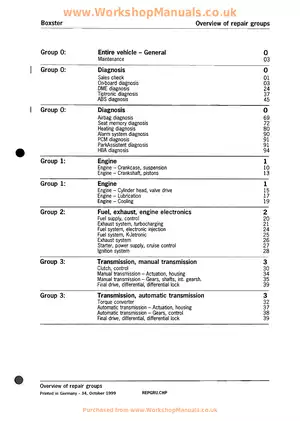

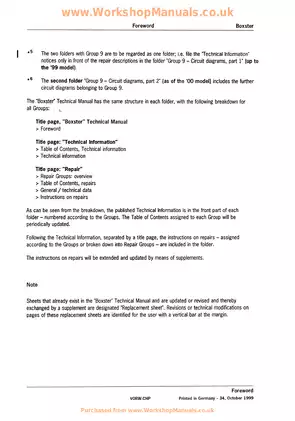

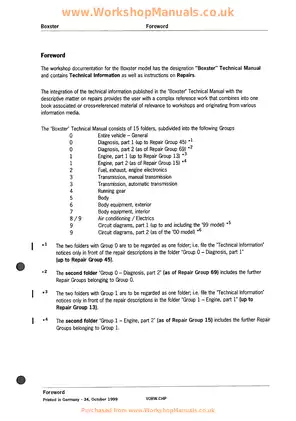

These are selected contents from the publications, rather than a complete table of contents. Other topics include cruise-control cable adjustment and windshield-wiper repairs.

• Engine repair: Step-by-step engine removal and installation, crankcase and piston work, cylinder-head service, camshaft timing, lubrication, and cooling-system procedures.

• Fuel and engine electronics: Fuel-pressure and delivery checks, injector and intake work, DME programming, exhaust replacement, and starter and alternator service.

• Transmission and clutch: Clutch hydraulics, G86 internal repair and differential adjustment, plus Tiptronic torque-converter, hydraulic-control-unit, sensor, and ATF service.

• Suspension, steering, and brakes: Strut and wheel-bearing replacement, alignment data, brake inspection, hydraulic bleeding, and ABS/TC diagnosis.

• Body, roof, and interior: Structural panel repairs, convertible-top mechanism and covering replacement, hardtop adjustment, glazing, seat frames, and upholstery.

• Control-system diagnosis: Airbag, seat memory, heating, alarm, instrument cluster, PCM, ParkAssistent, and automatic headlight-beam adjustment fault finding.

• Wiring and HVAC: Model-specific circuit diagrams, connector assignments and ground-point views, with heating/air-conditioning unit, compressor, and actuator service.

The workshop volumes were written for Porsche workshops and assume a vocationally trained technician with sound product knowledge.

Engine Work and Fuel-System Changes

Engine instructions identify assembly fixture 9607 and dedicated camshaft holding and timing tools. Lubrication coverage extends to the air/oil separator, oil extraction pumps, oil-water heat exchanger, and oil-pressure testing. Cooling procedures cover pump and thermostat replacement, filling, bleeding, and leak testing.

The 2002 brochure explains the returnless fuel system, ME 7.2 changes, EV-6 injectors, LSF oxygen sensors, and HFM 5 air-mass meter. Its system descriptions help distinguish that configuration from the earlier fuel-system procedures.

Gearbox Repair Depth and Brake Hydraulics

The G86 material includes shaft disassembly, bearing adjustment, and final-drive setup. Boxster S G86/20 coverage provides removal, installation, selector-force cap work, and input-shaft and flange-seal replacement; it does not provide the same internal overhaul coverage.

Tiptronic instructions distinguish converter installation from hydraulic-control and final-drive work. The converter section warns that incorrect installed position can destroy the ATF pump when the transmission is mounted to the engine.

Brake documentation distinguishes standard ABS from ABS/TC and includes the additional ABD-circuit bleeding procedure. Its bleeding notes flag possible master-cylinder primary-seal damage from excessive full-stroke pumping on older, high-mileage vehicles.

Convertible-Top Repairs and Hardtop Fixture Drawings

Roof coverage extends to drive adjustment, operational troubleshooting, frame and fabric replacement, seals, and the roof liner. Dimensioned drawings and a materials list support construction of a hardtop assembly fixture using fitting set 9620 for work on the hardtop's inner and outer surfaces.

Body sections include floor dimensions, welding and sectional replacement instructions, corrosion protection, and door/window adjustment.

Airbag and Comfort-Electronics Fault Isolation

Airbag Systems B04 and B05 are covered, including crash recognition, triggering-unit functions, coding, locking, and fault-memory clearing with Porsche System Tester 2. Seat-memory System S01 connects electric motors, lumbar support, and Hall-effect position feedback with connector pinouts and circuit checks, helping distinguish wiring faults from component faults.

Diagram examples include ABS 5.3 and ABS/TC 5.3 layouts, MFI-DI engine-electronics wiring, convertible-top circuitry, heating/air-conditioning circuits, and ground-point overviews. PCM and headlight-beam adjustment sections add calibration procedures.

Keep in mind that diagnosing SRS and airbag modules carries inherent physical risks; proper training and strict adherence to factory safety protocols are necessary before initiating any active testing.

Examples of Diagnostic Timing and Test Values

For airbag System B04, the warning light goes out after approximately 3 seconds if no fault is stored. A/C activation criteria include outside temperature at least 5°C, intake air above 3°C, coolant below 115°C, and ignition on; compressor engagement begins no earlier than 7 seconds after engine start.

The earlier Boxster fuel-pressure test specifies 3.8 ± 0.2 bar with the engine stopped and fuel pump operating, compared with 3.3 ± 0.2 bar at idle.
