Porsche 911 Carrera & Carrera 4 (993) 1994–1998 Repair Manual Set

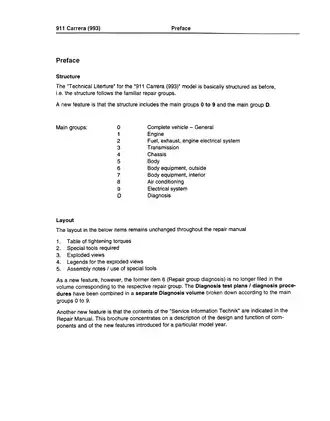

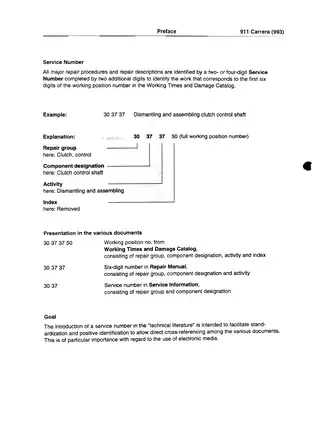

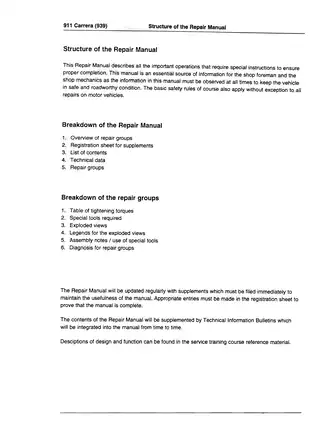

The volumes follow repair groups 0–9 plus Diagnosis group D. Carrera 4 and RS instructions supplement the base Carrera procedures where the work differs, while Volume VIII collects diagnostic test plans separately from mechanical repair instructions.

Coverage limits: Carrera S/4S material includes brake and wheel/tire specifications. Turbo references cover selected shared components and systems; Targa entries include rear-wiper and wiring-harness procedures. Dedicated Turbo engine/turbocharger and Targa glass-roof repair chapters are not included.

PDF Search, Bookmarks, and Wiring Detail

Search and diagram readability: OCR text supports searches through much of the manual, but some illustrated pages have no searchable text and recognition errors affect individual terms and numbers. Embedded bookmarks link the volumes and repair groups. Small wiring labels require magnification; some labels and linework remain faint or incomplete, including portions of the alarm/central-locking diagram.

One printable, English-language, 1,481-page PDF contains all eight volumes. The total includes 84 cover and introductory pages, with filed supplements included in the respective volume totals.

Engine, Drivetrain, Body, and System Diagnosis

The following are selected repair and diagnostic topics, rather than a complete contents list. Other entries include cruise-control fault tracing and gas-discharge headlight service.

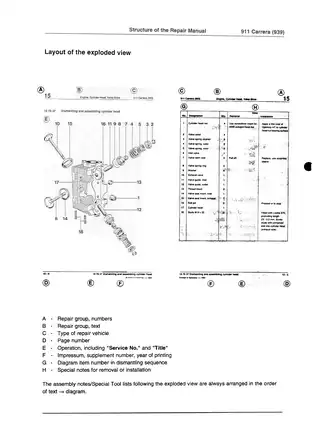

• Engine repair: Step-by-step procedures cover engine removal, crankcase and cylinder-head repair, camshaft timing, and Varioram vacuum-system testing.

• Fuel, ignition, and maintenance: Fuel-pressure and pump-delivery tests, DME dual-ignition checks, oil and filter changes, belt inspection, and spark-plug replacement.

• Manual and Tiptronic transmissions: G50/G64 overhaul and A50 service address clutch controls, gear assemblies, torque converters, hydraulic controls, and final drives.

• Suspension and brakes: Wheel-bearing replacement, rear-axle kinematic toe-in adjustment, RS alignment, ABS/ABD service, and brake-booster testing.

• Body and glass: Structural panel replacement, Cabriolet top fabric and flexible rear-window work, bonded glass installation, and rear-spoiler adjustment.

• Heating and air conditioning: R134a pressure testing, heater/A/C component replacement, blower checks, flap adjustment, and temperature-control diagnosis.

• Electrical diagnosis: System Tester 9288 fault-memory, actual-value, and actuator tests, supported by Model 95/2 wiring diagrams and connector information.

Porsche identifies shop foremen and mechanics as the manual’s readers; diagnostic work assumes familiarity with Porsche wiring diagrams and the use of oscilloscopes and electrical test equipment.

Crankcase, Cylinder Heads, and Camshaft Timing

The engine sections distinguish M64/05–08, M64/20 RS, and M64/21–24 Varioram applications. The fan-driven, air-cooled flat-six uses dry-sump lubrication and a thermostatically controlled front-fender oil cooler.

Crankcase work includes main-bearing bore measurement and oversize reaming. Cylinder-head procedures extend to valve-guide replacement and hydraulic lash-adjuster travel checks after valve or seat machining.

Timing instructions separate earlier camshaft drives from the one-piece, four-hole sprocket design. Camshaft locks 9551 (000.721.955.10) and 9552 (000.721.955.20) are identified by tool and order number.

The engine oil circuit diagram and Varioram hose connection schematics support lubrication and intake-system diagnosis. Crankcase assembly notes warn that through-bolts rotating during tightening can damage their O-rings.

G50/G64 Drivetrain and A50 Tiptronic

Transmission-number breaks distinguish early and revised first- and second-gear synchronizers and their compatible parts. Carrera 4 coverage adds the Z64/20 front final drive, central shaft, and viscous-clutch testing.

A50/04 and A50/05 material covers ATF-pump inspection, selector and parking-lock mechanisms, and cooler-line flushing after contamination. Final-drive procedures include bearing adjustment and ring-and-pinion setup.

The torque-converter installation warning explains that incorrect seating can damage both the converter and the ATF pump when the engine and transmission are joined.

RS Alignment, Brake Boosters, and Steering

RS sections distinguish M002 and M003 Clubsport configurations, with separate road and racing alignment information. Brake procedures distinguish vacuum and hydraulic boosters and include pressure-accumulator testing and ABD secondary-circuit bleeding.

Steering coverage addresses replacement, leakage checks, and bleeding. Internal steering-rack and power-steering-pump rebuilding is excluded; these assemblies are treated as replacement units.

Cabriolet Repairs and Cabin Systems

Cabriolet body repairs account for the May 1995 change from narrow to wide joints between the rear side sections and rear center panel. Other procedures cover rear-spoiler microswitch adjustment and seat-heater calibration after control-unit or heating-element replacement.

R134a service includes removal of the heater/A/C unit, compressor, and expansion valve. The high-pressure versus ambient-temperature chart supports evaluation of A/C pressure-test results.

Diagnostic Test Plans and Wiring Coverage

DME test plans trace fault paths through the control unit, connectors, wiring, and component, helping distinguish a circuit fault from a failed part. Tiptronic diagnosis separates G03 and G10 systems; G10 material includes country coding from model year 1996.

ABS/ABD, airbag, heater, and alarm sections provide system-specific fault-isolation checks. Named wiring sheets include ABS/ABD and Tiptronic Transmission, alongside connector and ground-point information.

Harness repair instructions address model-year and left-/right-hand-drive differences. The included Model 95/2 drawings are not separate complete wiring sets for every 1994–1998 model year.

For engine/transmission lifting, hydraulic brake-booster work, and airbag service, follow the manual’s support, pressure-release, and electrical-isolation precautions.

Crankcase and Oil-Capacity Examples

The Carrera crankcase measuring procedure specifies standard main-bearing bores of 65.000–65.019 mm and an oversize checking range of 65.25–65.269 mm. These dimensions accompany the crankcase measurement and reaming instructions.

The Carrera capacity table distinguishes approximately 11.5 L total engine oil capacity from approximately 9 L for an oil change. It refers to dipstick measurement under the Owner’s Manual procedure for determining the final level.
