1994–1999 New Holland L465, Lx465 & Lx485 Skid-Steer Loader Service Manual PDF (P/N 19992596)

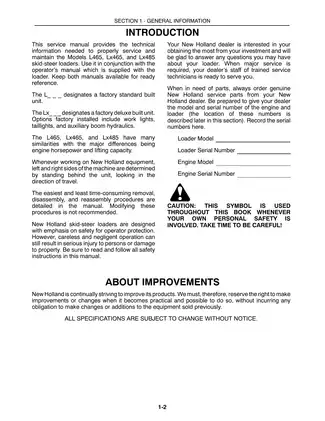

This New Holland service manual covers the 1994–1999 L465, Lx465 and Lx485 skid-steer loaders in standard and deluxe configurations. It documents mechanical repair, electrical troubleshooting and hydraulic testing. The introduction calls for using it alongside the loader’s operator’s manual.

Searchable Text and Diagram Limitations

Search, bookmarks and drawing detail: Main text is searchable, but lettering within some diagrams is not. Embedded bookmarks cover the seven service sections and their subsections; the top bookmark is incorrectly labeled LS140/LS150. Small wire-color codes and connector labels require zooming.

The download contains one printable, English-language, 704-page PDF, including section contents, indexes and numbered blank pages.

Engine, Drive and Loader-System Service

These selected topics cover the main repair areas. Other material includes attachment hydraulic-system compatibility and EIC loader-security settings.

• Engine overhaul: Step-by-step removal, teardown and reassembly procedures, with cylinder-block, crankshaft, piston and valve-train inspection data.

• Fuel and cooling systems: Fuel-supply troubleshooting, injector testing, injection-timing procedures, radiator service, water-pump inspection and thermostat checks.

• Electrical diagnosis: Early silver-frame and later gold-frame Electronic Instrument Cluster testing, interlock checks, charging-system diagnosis and starter repair.

• Hydrostatic drive and steering: Pump and motor overhaul, charge-pressure checks, case-drain and efficiency tests, plus neutralizer and control-linkage adjustment.

• Loader hydraulics: Control-valve service, gear-pump overhaul, boom and bucket cylinder repair, pressure testing and spool-lock solenoid diagnosis.

• Final drive and structure: Drive-chain replacement, axle and parking-brake service, cab/ROPS removal, boom inspection and attachment mounting plate repair.

The overhaul and diagnostic sections suit technicians familiar with diesel and hydraulic systems and equipped for pressure, flow and precision-measurement work.

Workshop Access and Repair Planning

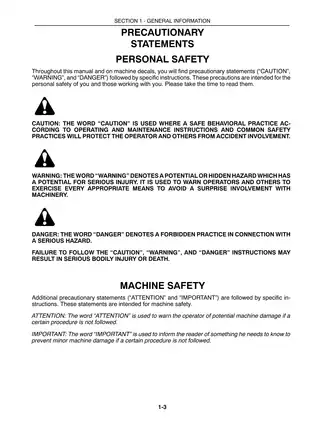

Section 1 covers crane lifting procedures, cab-and-boom tilting and fastener torque charts for inch and metric hardware. Machine and engine identification information supports replacement-parts ordering.

The labor guides provide operation-specific estimates for planning workshop work, with the stated qualification that machine condition and working conditions affect actual repair time.

Engine Inspection, Fuel Diagnosis and Cooling

Section 2 details internal inspection limits, timing-gear work and head-gasket selection based on piston protrusion. It describes engine removal both with and without tilting the cab.

For a hard-start condition, the troubleshooting charts connect fuel-supply and electrical checks to possible causes. Dedicated test charts cover the electric fuel pump, shutoff solenoid and fuel-level sender.

Fuel-injection pump removal and timing are covered, but internal pump disassembly, inspection and testing are assigned to fuel-equipment specialists.

The special-tool list identifies compression-test adapter FNH 00120 and oil-pump port-block installer FNH 00117, showing the equipment required for those jobs.

EIC Troubleshooting and Electrical Diagrams

Separate diagnostic material addresses the early silver-frame and later gold-frame EIC. Circuit descriptions and connector references support checks of power supplies, grounds, seat switches and starting interlocks.

Component drawings include the Starting System Electrical Diagram, Fuel System Electrical Diagram and circuit diagram of the reduction-type starter. However, the general Wiring Diagram section on PDF pp. 198–201 contains no overall loader schematic drawings.

Incorrect accessory grounding through the cab interliner can route current through the EIC and damage the board; the manual distinguishes the approved grounding arrangements.

Hydrostatic Testing and Component Overhaul

Step-by-step pump and motor overhaul procedures are supported by charge-pressure, case-drain and efficiency tests. These checks help distinguish internal leakage from other causes of weak ground drive before components are selected for repair.

The manual also covers system cleaning after a hydraulic or transmission overhaul and startup after pump or motor replacement.

Early and later pump bearing plates and back plates are not interchangeable: mixing the designs can interrupt cooling-oil circulation and cause overheating and premature failure.

Control Valves and Loader Hydraulics

The hydraulic section separates control valves with bolt-on solenoid blocks from valves with threaded solenoid ports. It also distinguishes Eaton 25000-series gear pumps from 26000-series Quiet Pumps, which use different service parts and seal kits.

Boom-lift and drift-down test charts relate symptoms to cylinder leakage, valve faults and circuit-relief components. Cylinder service includes separate Type 1 and Type 2 boom-cylinder procedures.

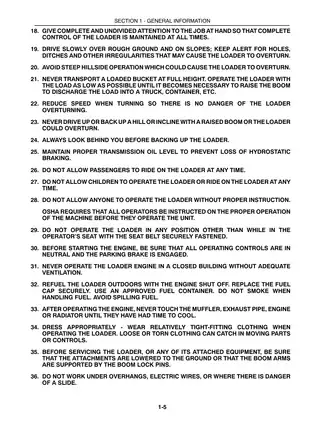

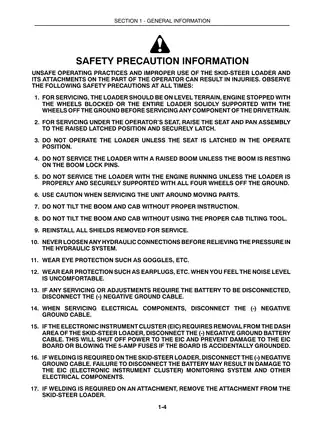

Working on loader hydraulics involves high-pressure fluid. The manual emphasizes pressure relief before line disconnection to prevent fluid-injection injuries.

Final Drive, ROPS and Boom Repairs

Final-drive coverage extends through chain, sprocket and bearing inspection, with axle reassembly and parking-brake checks. Structural sections cover ROPS inspection, boom reinforcement and mounting plate rebuilding.

The Boom Stop Shim Chart and Boom and Cylinder Pivot Pin Location and Machine Usage chart support configuration-specific reassembly. Complete lower-main-frame inspection and reinforcement instructions are referenced to separate Service Bulletin 12/97-I1.

A Preview of Engine Torque and Fluid Data

The cylinder-head procedure specifies staged tightening with lubricated threads and a final torque of 98–103 N·m (72–76 ft. lbs.).

For the early and later engine-lubrication configurations identified in the serial-number box, crankcase capacity with filter is 4.7 L (5 qt.) and 5.7 L (6 qt.), respectively. Cooling-system capacity is 9.2 L (9.8 qt.).
