New Holland LM840, LM850 & LM860 Telehandler Service Manual (2000)

204 Pages • 1 Printable PDF (English) • Download

4.5starstarstarstarstar_half(2)
$29.70 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

New Holland Models Covered & Key Technical Specifications

Models: LM840, LM850, LM860

Sub-models / Variants: Turbo (LM840, LM850, LM860), N/A (LM840, naturally aspirated)

Model Year: 2000


  • Transmission type: 4-speed synchromesh power shuttle (Dana Spicer / Turner Compact Phase 1, T4-2012)

  • Gear ratios (Forward): 6.285 (1st), 3.325 (2nd), 1.710 (3rd), 1.086 (4th)

  • Gear ratios (Reverse): 6.251 (1st), 3.307 (2nd), 1.701 (3rd), 1.080 (4th)

  • Main system pressure: 14.5–15.5 bar (210–225 psi)

  • Torque converter pressure: 6.5–7.5 bar (94–109 psi)

  • Transmission lubricant capacity: 9.4 liters (2.5 US gallons)

  • Solenoid coil resistance: 5 ohms

  • Brake disc diameter: 203.2 mm (8 inches)

New Holland Manual Features & Selected Content Preview

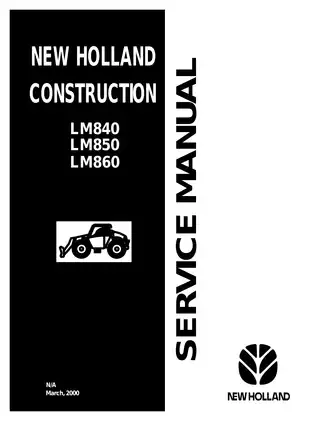

This New Holland Construction service manual covers the 2000 LM840, LM850, and LM860 telehandlers. It contains six service sections dated March 2000.

PDF Search, Bookmarks, and Page Count

Text search and diagram detail: The manual text is searchable, and bookmarks open all six section covers. Zooming helps with small hydraulic port and line labels, some of which are part of the drawings.

One printable English-language PDF contains 204 pages, including 196 service-section pages, seven pages of manufacturer front matter, and one additional opening page. The service sections include their six covers and one numbered blank rear-axle page.


Power Shuttle, Axle, and Boom Service

Alongside this selection of repair and diagnostic topics, the manual covers transmission disconnect switch operation and front-wheel toe-in adjustment.

  • Transmission and bevel gearbox: Step-by-step disassembly and reassembly, removal and installation, clutch-pack repair, synchromesh gear-train service, shaft shimming, and hydraulic and solenoid checks.

  • Front and rear axles: Planetary hub and differential overhaul, bevel pinion depth and swivel-pin preload calculations, crown gear backlash adjustment, and troubleshooting.

  • Wet multi-disc brakes: Brake servo overhaul, axle brake repair, circuit bleeding, accumulator circuit pressure testing, brake-disc wear checks, and parking brake adjustment.

  • Hydrostatic steering: Steering control valve, motor, and cylinder overhaul, load-sensing flow divider operation, steering-mode schematics, and pressure testing.

  • Telescopic boom: Wear pad replacement and shimming, removal of the inner, intermediate, and base sections, boom installation, and model-specific wear pad access.

The manual is suited to mechanics experienced in drivetrain and hydraulic repair who have access to a shop press, bearing tools, dial indicators, and pressure gauges.

Transmission and Bevel Gearbox Repair

Section 21, with cover reference 86609405, details the Dana Spicer/Turner Compact Phase 1, T4-2012 transmission, its directional control valve, and the rear-axle drive transfer box. The stall-test table gives the naturally aspirated LM840 its own speed range.

The Diagnosis Guide pairs symptoms with probable causes and corrective actions. Used with the pressure-port layout, it helps distinguish clutch-circuit, converter, and mechanical faults before teardown.

Service for the sealed, welded torque converter covers stall testing, cleaning, visual inspection, and replacement. The reference tables give clutch and lubrication pressures, solenoid resistance, endplay limits, fluid capacities, and component torques.

The Transmission Oil Flow and Directional Control Valve Operation schematic supports circuit tracing. The 90° Bevel Gearbox Component Detail and exploded views of the transmission, torque converter, and transfer box identify internal parts. The tool list includes clutch spring compressor NH01251 and yoke holding tool NH01259.

Axle Identification and Overhaul

The Clark-Hurth front axle is 277/160 on the LM840 and LM850 and 277/161 on the LM860. All three use the 279/306 rear axle. Its section refers to the front-axle procedures for component overhaul.

The axle chapters distinguish hub and swivel repairs with the axle in place from differential and pinion work with the axle removed. Pinion depth and preload procedures call out tools NH01397 and NH01396. European units use an oval rear pivot bushing for the axle load sensor.

Brake Servo and Parking Brake

The Brake System Schematic and Brake Pipe and Component Layout support servo service and brake bleeding. The troubleshooting chart addresses damage to axle seals and hoses from incorrect brake fluid.

The mechanical parking brake acts on the front axle. The manual shows adjustment at the lever and at the axle. Overtightening the lever adjustment can stretch the cable.

Steering Motor and Priority Flow

The steering specifications identify the Danfoss OSPC LS motor. They list an Ultra 1PX285 pump for the LM840 and LM850 and an Ultra 2PRO41 for the LM860.

The Steering Valve Schematic shows oil routing for front-wheel, all-wheel, and crab steering. The Flow Divider Valve Operation drawing shows how steering and brakes get priority flow over the boom and auxiliary circuits.

Boom Configurations and Cylinder Access

The LM840 and LM850 use a three-section boom and a lower-mounted outer telescoping cylinder. The LM860 has four sections and an upper-mounted outer cylinder. Boom weights are listed by model and section for lift planning.

On the LM860, reaching the third section’s rear lower pads and the fourth section’s rear lower, side, and top pads requires removing the inner cylinder and hoses. The cylinder removal procedure requires a separate copy of Section 35.

Engine repair and full-machine wiring require separate service documentation.

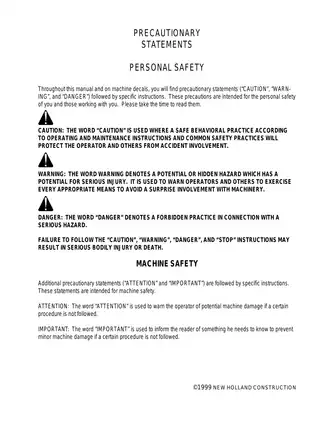

Safety Notice: Follow the manual's complete specifications and safety precautions for hydraulic testing, supported boom work, and heavy-component handling.

Oil Cooler Flow and Boom Wear Pad Clearance Examples

The transmission oil cooler test table lists a flow of 6.3 gpm at 2,000 engine rpm with the transmission oil at 176–185°F.

The boom shimming procedure specifies 0.8–1 mm of clearance at each side wear pad and 1–2 mm at the top wear pads. Both ranges apply at the tightest point of boom travel.
