Alfa Romeo 155 Repair Manual Set, 1992–98 (P/N PA49780016V002)
1,082 Pages • ZIP Download: 10 Printable PDFs • 61.28 MB
Alfa Romeo Models Covered & Key Technical Specifications
Models: 155 1.7 TS, 155 1.8 TS, 155 2.0 TS, 155 2.0 TS Super, 155 1.6 TS 16V, 155 1.8 TS 16V, 155 2.0 TS 16V
Models & Model Codes:
155 1.7 TS — 167A4G (engine AR67103); 167A4H, 167A4L (engine AR67105)
155 1.8 TS — 167A4B (engine AR67103); 167A4A, 167A4C, 167A4E (engine AR67102); 167A4M
155 2.0 TS — 167A2A (engine AR67202)
155 2.0 TS Super — 167A2G (16V; engine AR67204)
155 1.6 TS 16V — 167A6, 167A6A (engine AR67601)
155 1.8 TS 16V — 167A4N, 167A4P (engine AR67106)
155 2.0 TS 16V — 167A2G (engine AR67204)
Sub-models / Variants: 4-door Saloon; vehicle type 167000
Model Years: 1992–1998 (1992, 1993, 1994, 1995, 1996, 1997, 1998)
Serial Numbers: Engines AR67103, AR67102 and AR67202: from 000001. 2.0 TS 16V: chassis numbers 121000 and 1022000 on two assembly lines; engine AR67204 from 3259.
Serial Breaks: 1.8 TS (167A4B, 167A4C) and 2.0 TS (167A2A): revised second-gear ratio from chassis 9700. Earlier Twin Spark cooling-fan relay locations: up to chassis 30.732 / from chassis 30.733. Twin Spark air-conditioning specifications: R134a application from chassis 105779 and 1003349 on two assembly lines.
Transmission: 5-speed manual; TS 16V gearbox family C.510.5.XX.YY.
-
Engine cycle: 4-stroke Otto cycle
-
Engine displacement: TS 16V — 1598 cc (1.6), 1747 cc (1.8), 1970 cc (2.0)
-
Max power: TS 16V — 120 CV (88 kW) / 140 CV (103 kW) / 150 CV (110 kW), respectively
-
Compression ratio: 10.3:1 (1.6 and 1.8 TS 16V); 10:1 (2.0 TS 16V)
-
Cylinder bore: 82 mm (1.6 and 1.8 TS 16V); 83 mm (2.0 TS 16V)
-
Piston stroke: 75.65 mm / 82.7 mm / 91 mm (1.6 / 1.8 / 2.0 TS 16V)
-
Fuel system: Bosch Motronic M1.7 in the earlier Twin Spark material; Bosch Motronic M 2.10.3 / M 2.10.4 in the TS 16V material
Alfa Romeo Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|
| Twin Spark 16V repair supplement, V000 base material with V001 and V002 updates — P/N PA49780016V000, PA49780016V001 and PA49780016V002; V002 cover reference 60494598. Files 01–03. | 330 |
| Vehicle Characteristics and Maintenance — Twin Spark and 16V material, plus separate V6, Q4, TD and TD 2.5 maintenance sections. File 04. | 140 |
| Engine repair volume — P/N PA4655B0000000. File 05 contains the earlier Twin Spark repair material; continuation file 06 is damaged. | 116 readable |
| Electrical and electronic diagnosis, covering starting and charging, engine cooling, Motronic M1.7, Alfa Romeo CODE, ABS and controlled damping suspension. File 10. | 66 |
| Mechanical Units and Body — P/N PA4655CD000000. Files 11–12. | 214 |
| Bodywork, doors, interior and exterior trim, heating and ventilation material. Files 13–14. | 216 |

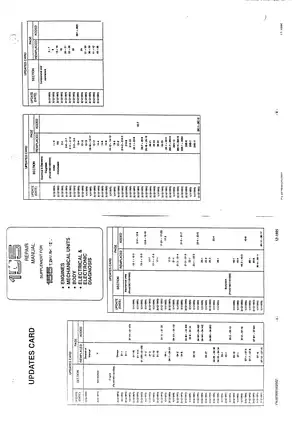

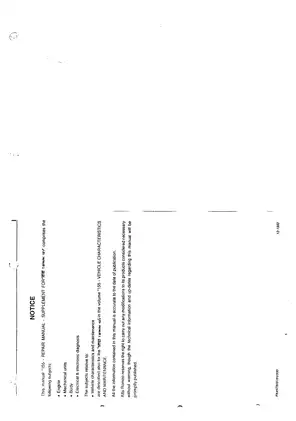

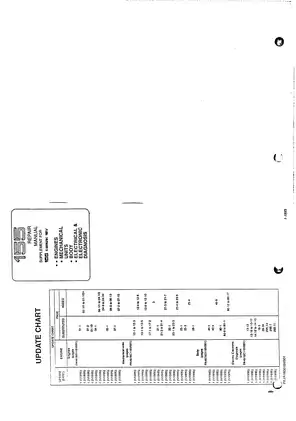

The update cards identify replacement pages and additions. Use the base volumes with the engine-specific supplement to select the appropriate procedures, specifications and electrical diagrams.
16V overhaul scope: The supplement refers bench engine overhaul to the PA493600000000-series instructions and C.510.5.XX.YY gearbox overhaul to PA494200000000. Those separate overhaul publications are not included.
Printable PDFs, Page Layout and Wiring Detail
Search, navigation and small labels: The ten readable PDFs have no embedded text search or PDF bookmarks. Many pages contain two manual pages side by side and need rotation for comfortable viewing. Dense wiring diagrams require enlargement; some small labels remain faint or broken.
The ZIP contains 11 PDF files, including the damaged engine continuation, 06_alfa155-engines2.pdf, which does not open normally. The ten readable files contain 1,082 PDF pages in total, including their title, update, index and publication-information pages.
Twin Spark Engine Repair, Chassis Service and Electrical Diagnosis
These selected coverage highlights are part of the available material. Further topics include sunroof-glass adjustment and paint-defect diagnosis.
-
Engine repair: Earlier Twin Spark bench overhaul, cylinder-head inspection, crankshaft and cylinder-liner checks, plus engine removal and on-vehicle 16V repair procedures.
-
Ignition and cooling: Ignition-coil checks, starter disassembly, alternator removal, water-pump replacement, thermostat inspection and cooling-system pressure tests.
-
Motronic diagnosis: M1.7, M2.10.3 and M2.10.4 system descriptions, sensor specifications, wiring diagrams and symptom-based fault-isolation charts.
-
Clutch and drivetrain: Hydraulic clutch service, gearbox removal, base-volume gearbox and differential overhaul, axle-shaft work and variant-specific transmission data.
-
Brakes and chassis: Suspension inspection, wheel alignment, steering service, conventional brake repair, Bosch 2E ABS and Bosch 5.3 ABS diagnosis.
-
Electrical systems and HVAC: Connector views, component locations, Alfa Romeo CODE procedures, power-accessory tests and automatic climate-control self-diagnosis.
-
Structural body repair: Panel replacement, mating-surface preparation, spot and MIG welding, body-squaring diagrams, painting and corrosion protection.
Written for Alfa Romeo service staff, this material assumes workshop experience and access to the specified special tools and test equipment.
Engine Overhaul and Variant-Specific Repair
The earlier Twin Spark engine volume contains step-by-step bench-overhaul procedures. Coverage extends to cylinder-head disassembly, valve guides and seats, cylinder-liner protrusion, piston and connecting-rod inspection, crankshaft checks, bearing selection and reassembly.
The 16V material uses AR67204 as its main reference and provides the differences for AR67601 and AR67106. On-vehicle work includes cylinder-head and oil-sump removal, crankshaft and camshaft sealing, countershaft seals and the engine stay-rod bushing.
Timing coverage distinguishes the earlier chain-driven arrangement from the 16V timing-belt and counter-rotating-shaft belt work. Cylinder-head installation includes the fastening sequence and staged angle-tightening requirements, alongside component-specific torque tables, lubricants, sealants and special-tool references.
The maintenance volume also contains separate procedures for V6, Q4 and diesel configurations. These sections provide maintenance coverage and do not replace the corresponding complete engine and drivetrain repair publications.
Fuel Management and Fault Isolation
The earlier Twin Spark material covers Bosch Motronic M1.7; the 16V supplement adds M2.10.3 and M2.10.4. Ignition arrangements, cooling-fan control, sensors and service procedures differ between builds.
Diagnostic charts address cold and hot starting, unstable idle, irregular running, fuel consumption and exhaust emissions. Tests cover injectors, fuel pressure, intake leaks, lambda feedback, EGR control and the timing variator.
Component locations and connector information connect those tests to the air-flow meter, phase and speed sensors, coolant-temperature input and related circuits. This lets a technician follow a reported symptom through the appropriate wiring and component checks.
Transmission, Brakes and Suspension
The base mechanical-unit volume contains internal gearbox and differential disassembly, inspection and reassembly procedures, with separate information for the documented Twin Spark and V6 arrangements.
Brake coverage includes caliper work, hydraulic bleeding, parking-brake adjustment and wheel-speed sensor checks. The ABS material distinguishes the earlier Bosch 2E system from Bosch 5.3, with hydraulic layouts, electrohydraulic-unit information and electrical fault tracing.
Where fitted, controlled damping suspension diagnosis includes accelerometer, steering-sensor and damper-solenoid checks.
Electrical Systems and Climate Control
Representative diagram groups include the Check Panel, starting and charging, Motronic engine control, Bosch 5.3 ABS, automatic heating and ventilation, and controlled damping suspension.
Windshield and headlight washers, power windows, central locking, heated mirrors and the sunroof have system-specific electrical information. Alfa Romeo CODE coverage includes key programming, transponder transfer and fault diagnosis.
HVAC sections distinguish manual heating from automatic systems. They include self-diagnosis, temperature-sensor and air-distribution motor checks, component removal, and air-conditioning evacuation and recharging information.
Body Repair and Workshop Precautions
Bodywork coverage includes the hood, trunk lid, doors, fenders, pillars, structural supports and underbody sections. Body-squaring tables and diagrams accompany panel preparation, welding, paint restoration and corrosion-protection procedures.
The 16V Twin Spark uses different center and side spark-plug types; incorrect type or size can damage the engine. During starter repair, burrs at the retaining-ring groove can damage the inverter shaft.
Pressurized fuel lines, ABS hydraulics, air-conditioning refrigerant, electrical isolation, and under-vehicle work all require appropriate workshop precautions. Use each diagram or specification in the context of the complete factory procedure before disconnecting lines, lifting assemblies, or applying final torque.
A Preview of Lubrication and Ignition Test Data
For the AR67204 engine, the lubrication specifications list minimum oil pressures of 1.5 bar at idle and 4.5 bar at 4,000 rpm.
The 16V ignition-coil table specifies primary winding resistance of 0.3 Ω ±12% and secondary winding resistance of 7 kΩ ±12%. These electrical reference values accompany the ignition-system inspection material.
