1981–1983 Ford 3610 Tractor Illustrated Parts Catalog

This illustrated parts catalog covers the 1981–1983 3-cylinder Ford/New Holland 3610 agricultural tractor. It details both 2WD and FWD configurations, including cab and open-station variants.

The 728-page PDF combines searchable parts tables with scanned assembly illustrations.

• Engine and fuel: Illustrated component listings for gasoline and diesel engines, injection pumps, injectors, carburetors, lubrication, and cooling equipment.

• Transmission and PTO: Separate parts sections for manual-reversing, nonsynchronized, and synchronized transmissions, plus clutch assemblies, live PTO, and creeper gearing.

• Axles and wheels: Front and rear axle components, FWD driveline assemblies, differential parts, and standard or power-adjustable wheel configurations.

• Hydraulics and hitch: Pump assemblies, lift covers and cylinders, remote-control valves, couplers, stabilizers, and drawbar equipment with corresponding parts tables.

• Brakes and steering: Illustrated controls and component listings for tractor brakes, hydraulic trailer brakes, and manual or power steering.

• Electrical and cab: Harness and component layouts, starting and charging equipment, instruments, lighting, cab glass, heaters, seats, and body panels.

The catalog is suited to mechanics and experienced owners who can identify their tractor's installed equipment and interpret model-specific parts notes.

Parts Identification and Variant Coverage

Drawing reference numbers connect components to part numbers, quantities, kit contents, and replacement notes. North American and European applications are distinguished within shared tables, helping you check which version to order before a repair.

Some figures also list other Ford models. Cab, transmission, and model qualifications apply to individual entries; a shared drawing does not make every listed part suitable for the 3610.

Engine, Fuel, and Cooling Components

Separate gasoline and diesel sections cover cylinder blocks and heads, crankshafts, pistons, connecting rods, valve gear, and gasket kits. Replacement-block notes identify the FP115 stepped-stud kit and associated stepped head bolts for applicable engine substitutions.

The hardware appendix excludes threaded holes and mating nuts and bolts from its metric/inch substitution guidance. Mixing incompatible threads during an engine repair can damage fasteners or the block.

Fuel Injection Pump (Rotor) details internal pump components and repair-kit contents. Other figures distinguish single and dual fuel filters, carburetors, cold-start equipment, and air cleaners, alongside radiator and water-pump assemblies.

Transmission, PTO, and FWD Assemblies

The drivetrain sections separate 6 x 4 manual-reversing, 8-speed non-syncromesh, and 8-speed synchronized transmissions. Single- and double-clutch assemblies, live transmission PTO, and creeper/reduction gearing have separate listings.

FWD components—from drive shafts and transfer housings to front axles—are organized by assembly and application. The 3610 front-axle entries identify AE1-149; shared figures also reference AE1-169 and AE2-169 for related applications. Transfer Box W/Collar Gear and Transfer Box W/Wet Clutch distinguish the two arrangements and their controls.

Wheels, Brakes, and Steering

The catalog breaks down front and rear wheel configurations, detailing specific weight kits and power-adjustable rim setups.

Brake listings include pedal linkages, transmission handbrake levers and cables, and hydraulic trailer brakes for cab-equipped tractors. The steering sections map manual and power steering gear assemblies, with separate Power Steering Pump & Reservoir and steering-cylinder figures.

Hydraulics, Electrical Equipment, and Cabs

Hydraulic parts sections distinguish engine-mounted piston pumps from tandem gear-type pumps. Lift-linkage entries identify open- and closed-center applications; remote-valve sections cover single- and double-spool arrangements and leverless couplings.

Rear Wiring (W/Stop Lamps & Flasher) and Cab Electrical System (NH-E) show harnesses and component locations. These are parts illustrations, not circuit schematics or electrical diagnostic procedures. Cab listings distinguish Q-Cab and low-profile equipment, including windows, doors, heating, and wipers.

Repair Scope and File Navigation

This is a parts-identification reference. Workshop repair procedures, torque tables, fluid-capacity charts, and hydraulic test instructions require a separate service manual. Verify exact part fitment and use the appropriate service instructions before brake, steering, or hydraulic work.

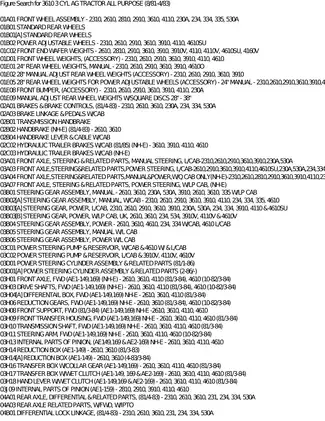

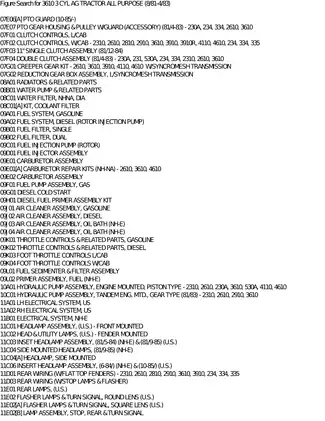

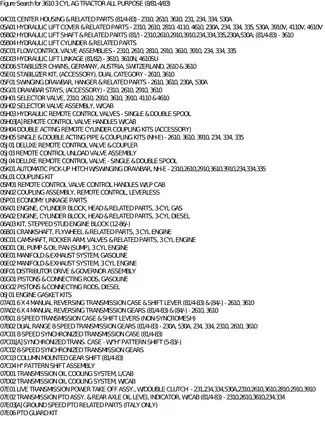

Page breakdown: 703 catalog pages, one cover, one figure-search guide, six index pages, one blank separator, 14 abbreviation pages, and two hardware-conversion pages. All are included in the total.

Navigation: The index contains 275 figure entries; some have a “No Art Required” placeholder. Six PDF bookmarks open the front matter, catalog, and reference appendices.

Illustrations: Drawing callouts are image-based and require visual lookup. Zooming helps with smaller labels in dense assembly views.
