1997–2001 Suzuki XF650 Freewind Service & Repair Manual

Suzuki Motor Corporation's XF650 Freewind service manual covers the 1997–2001 models, including the low seat conversion. The XF650V base text carries a 1996 copyright and is followed by W/UW/X/UX, Y and K1 supplements.

• Engine repair: Engine removal, crankcase separation, cylinder-head and valve service, cam timing, compression testing, piston inspection, and crankshaft/balancer-shaft work.

• Clutch and transmission: Wet multi-plate clutch inspection, gearshift cam and fork checks, gearbox assembly views, and starter-clutch service.

• Fuel and lubrication: Twin Mikuni BSR32SS carburetor overhaul, float-height adjustment, synchronization, oil-pressure testing, and oil-pump inspection.

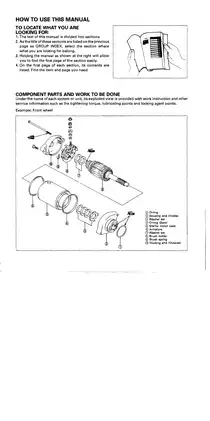

• Electrical diagnosis: Charging and ignition troubleshooting, starter-motor overhaul, side-stand interlock tests, combination-meter inspection, and market-specific wiring diagrams.

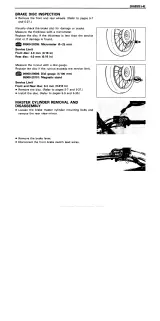

• Chassis and brakes: Fork rebuilding, steering-bearing adjustment, swingarm and wheel-bearing service, brake-caliper/master-cylinder overhaul, and brake bleeding.

• Low seat conversion: Fork and rear-shock reconfiguration, spring adjustment, shorter-stand requirements, and the corresponding chassis specifications.

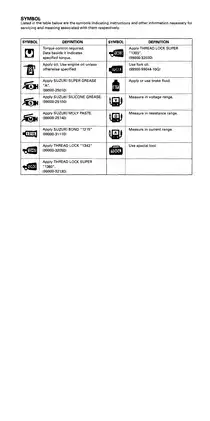

This manual is intended for readers who already have the knowledge and skills to service Suzuki vehicles; general mechanical knowledge is assumed.

Engine Repair and Internal Inspection

Engine coverage runs from in-frame service access to full teardown, with wear limits for the cylinder head, camshaft, valves, pistons and transmission. Valve-seat cutaways, gearshift mechanism exploded views and the engine lubrication/cylinder-head cooling chart support the repair procedures.

Generator rotor and primary drive gear procedures identify the required tools, including rotor remover 09930-30721. Crankcase separation cautions explain how incorrect transmission positioning can damage the gearshift cam stopper.

Starter torque limiter coverage is limited to testing and replacement. The limiter is a non-serviceable assembly.

Carburetor Control and Electrical Diagnosis

The fuel chapter traces the slow, main, starter and float circuits. Piston-valve lift control coverage includes the solenoid valve, V.T.V. (Vacuum Transmitting Valve) and throttle-position sensor positioning.

Carburetor cautions explain how compressed air can damage an installed diaphragm. Synchronization coverage also includes carburetor-balancer calibration.

Charging and no-spark troubleshooting charts connect symptoms with generator, regulator/rectifier, ignition-coil and interlock tests, helping narrow down a fault before selecting replacement parts. Electrical tables include ignition timing, spark-plug gaps, fuse ratings and bulb wattages.

Chassis Work and Model Updates

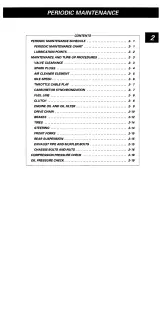

Periodic maintenance charts, fuel/oil recommendations, multigrade oil charts and break-in guidance accompany drive-chain alignment and chassis inspections. Torque tables cover individual fasteners, including cylinder-head-cover and rear-axle hardware.

Low seat conversion instructions cover fork internals, rear-shock spring-seat and mounting changes, and shorter-stand requirements. Cable, hose and harness-routing drawings support reassembly.

The W/X supplement identifies the oil-pump washer arrangement introduced with the X model. The Y supplement details revised clutch assembly, fairing and headlight work; K1 service data is supplied in its own section.

Keep the motorcycle securely supported during wheel or suspension work.

CCM Wiring and WP Suspension References

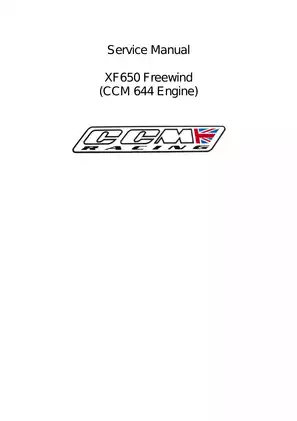

Separate R30 Harness and Dual Sports Harness diagrams accompany the Suzuki wiring diagrams for Australia, other markets and the Y model. The CCM additions cover wiring and suspension setup; full CCM chassis repair is outside their scope.

The WP shock-absorber excerpt covers spring setup, seals, oil replacement, bleeding and troubleshooting, with internal overhaul assigned to suspension specialists. The MXMA fork excerpt covers damping adjustment, springs/preload and oil service. These WP instructions apply to the identified suspension components.

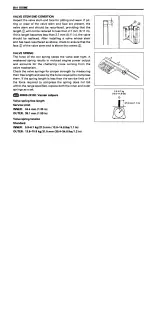

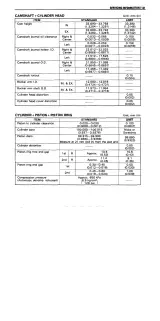

A Preview of Valve and Cylinder-Head Specifications

These examples are a small selection of the engine adjustment and assembly data in the Suzuki manual.

The XF650's cold valve-clearance ranges are 0.08–0.13 mm at the intake and 0.17–0.22 mm at the exhaust. Cylinder-head assembly specifications distinguish the head bolts, at 38 N·m, from the separate head nuts, at 25 N·m.

PDF Navigation, Diagram Detail and Page Breakdown

Search and diagram detail: Text search works only on the added cover and final links page, not the service content. Embedded bookmarks link to the Suzuki chapters, supplements and appended references. Small wiring labels require zooming; scan marks obscure part of the appended R30 wiring diagram.

One printable 349-page PDF contains 326 Suzuki pages, including one mirrored duplicate, plus 13 WP shock-absorber pages, five WP MXMA fork pages and two CCM wiring diagrams. One added cover, one suspension setup article and one promotional links page are also included in that total.
