Sea-Doo Models Covered & Key Technical Specifications

Models & Model Codes: SP (5804), GT (5811, 1st Run and 2nd Run), XP (5850)

Model Year: 1991


  • Engine: Rotax 587

  • Engine displacement: SP and XP: 580.3 cc (35.4 cu in); GT: 580.7 cc (35.44 cu in)

  • Horsepower: SP: 50 hp (37 kW); GT: 55 hp (41 kW); XP: 56 hp (42 kW), all at 5750 RPM

  • Torque: SP: 67 N·m (49 lbf-ft) at 5000 RPM; GT: 70 N·m (51 lbf-ft) at 5250 RPM; XP: 69 N·m (51 lbf-ft) at 5500 RPM

  • Fuel capacity: 33 L (8.7 US gal)

  • Electrical system: 12 V nominal, 20 Ah capacity

  • Spark plug: NGK BR7ES

  • Spark plug gap: GT: 0.60 mm (0.024 in)

  • Cooling system type: Total loss cooling system (TLCS)

  • Transmission: Direct drive with crown-spline coupling

Sea-Doo Manual Features & Selected Content Preview

This Bombardier Shop Manual (P/N 219 100 004) covers the 1991 Sea-Doo SP (5804), GT (5811), and XP (5850) personal watercraft with the Rotax 587 engine. It covers factory configurations and excludes dealer modifications made after production.

PDF Navigation and Wiring Diagrams

Text search and wiring detail: The PDF has no text search or embedded bookmarks. Small wire-color codes in the SP/GT and XP wiring diagrams are readable when zoomed in.

The download contains one printable, 247-page PDF in English, including the cover, title page, and 24 blank pages.


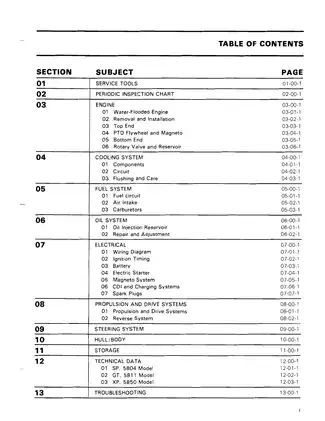

Rotax 587 Repair, Electrical Diagnosis, and Jet Pump Service

These are selected topics from the manual. Other procedures include battery load testing and spark plug inspection.

  • Engine repair: Water-flooded engine care, engine removal and installation, top- and bottom-end overhaul, PTO flywheel and magneto service, and rotary-valve and reservoir work.
  • Fuel and oil systems: Single- and twin-carburetor service, fuel-system pressure testing, throttle adjustment, and oil-injection pump synchronization, bleeding, and bench testing.
  • Cooling and storage: Total loss cooling circuit, flushing procedures, overheating checks, and off-season storage with internal engine corrosion protection.
  • Electrical diagnosis: Ignition timing, starter overhaul, magneto and CDI tests, charging-system checks, and separate SP/GT and XP wiring diagrams.
  • Propulsion and steering: Step-by-step jet pump overhaul, impeller and wear ring inspection, engine-to-pump alignment, steering cable adjustment, and GT reverse-system service.
  • Hull and body: Water tank trap repair, drain fitting service, rear baffle installation, and seat latch adjustment to maintain the seal.
  • Service references: Periodic inspection chart, model-specific torque tables, component wear limits, and troubleshooting charts for symptoms such as misfires, overheating, and loss of power.

Bombardier wrote this manual for watercraft mechanics familiar with its service procedures and equipped with the specified hand tools and special service tools.

Rotax 587 Overhaul and GT Production Variants

Separate engine support, tuned pipe, and muffler diagrams distinguish the first-run GT from the second-run GT and the SP and XP. The layouts help identify which mounting and exhaust arrangement applies before engine removal.

The manual distinguishes top-end and PTO flywheel or magneto work that can be done with the engine installed from crankcase overhaul and rotary-valve shaft repair, which require engine removal. Crankshaft alignment and deflection illustrations accompany the bottom-end checks. The top-end section covers piston rings, cylinder taper, and out-of-round measurements, and explains how overstressed piston-pin circlips can loosen and damage the engine.

Carburetor Configurations, Oil Injection, and Cooling

The SP uses a single carburetor. The GT and XP use separate MAG- and PTO-side carburetors. Fuel routing and exploded carburetor views help identify the correct carburetor, return-line connection, and adjustment before reassembly. The air intake section covers the flame arrester, and the oil pump illustrations identify parts that were not offered separately.

The cooling circuit diagram traces the jet pump water supply, calibrated outlets, self-bleeding path, and drains. The flushing and storage procedures address debris buildup, internal corrosion, and freeze protection.

Ignition Timing and Starting-System Faults

The timing illustrations show how a top dead center gauge is used to verify the flywheel mark before checking ignition timing with a strobe. CDI and charging-system diagnosis includes resistance checks, an ignition-module diode test flowchart, and procedures for the Bombardier ignition tester (P/N 295 000 008) and Nippondenso CDI tester (P/N 295 000 080).

The starting-system troubleshooting table helps distinguish battery, solenoid, starter motor, and overrunning clutch faults. The electrical and fuel-system procedures include precautions for high-voltage testing, rotating components, and fuel vapors.

Jet Pump, Reverse Gate, and Hull Service

Jet pump overhaul covers bearings, seals, and thrust components, with checks for impeller shaft radial play, end play, and leaks. The impeller identification chart helps match replacements to the model. The drive shaft installation section explains how a folded seal can cause seal carrier bearing failure and specifies alignment tool P/N 295 000 089 for engine-to-pump alignment.

The steering section includes fabrication drawings for a tool used to check handlebar and nozzle alignment. The GT reverse section covers the cable, gate, and neutral position. Hull service covers rear baffle bonding and seat sealing, with references to fiberglass and Gelcote repair kits.

Selected Engine Clearances and Ignition-Coil Readings

For all three Rotax 587 applications, the manual lists a piston-to-cylinder wall clearance of 0.06–0.07 mm for new parts. It specifies a 0.2–0.3 mm gap between the rotary valve and crankcase, measured with the cover fitted without its O-ring.

The ignition coil’s secondary winding should read 5.85–6.50 kΩ across the spark plug leads with the plug protectors removed. The manual explains why a coil can read within range on an ohmmeter and still leak at high voltage.
