Sea-Doo GTI/GTX/RXP/RXT 4-TEC 2006 Shop Manual (P/N 219 100 239)
403 Pages • Printable PDF • 94.94 MB • Download
Sea-Doo Models Covered & Key Technical Specifications
Models: GTI, GTI SE, GTX, GTX Supercharged, GTX Limited, GTX WAKE, RXP, Sea-Doo RXT
Models & Model Codes:
GTI — 236A, 236B, 256A, 256B
GTI SE — 246A, 246B
GTX — 146A, 146B
GTX Supercharged — 166A
GTX Limited — 186A, 186B, 186C
GTX WAKE — 156A, 156B
RXP — 216A, 216B, 216C, 216D
RXT — 176A, 176B, 176C, 176D
Sub-models / Variants: 1503 Naturally Aspirated (130 HP: GTI, GTI SE), 1503 Naturally Aspirated (155 HP: GTX, GTX WAKE), 1503 Supercharged (GTX Supercharged), 1503 Supercharged Intercooled (GTX Limited, RXP, RXT)
Model Year: 2006
-
Engine type: 1503 4-TEC Series
-
Cooling system: Closed-loop engine cooling; Total Loss Cooling System (TLCS) for exhaust cooling
-
Supercharger rotation: 45,000 RPM
-
Torque specification (fastener grade 8.8, M10): 48 N·m (35 lbf·ft)
-
Supercharger clutch torque (new): 7–12 N·m (62–106 lbf·in)
-
Intercooler leak test pressure: 69 kPa (10 PSI) for at least 10 minutes
-
Transmission: Direct drive (all listed models)

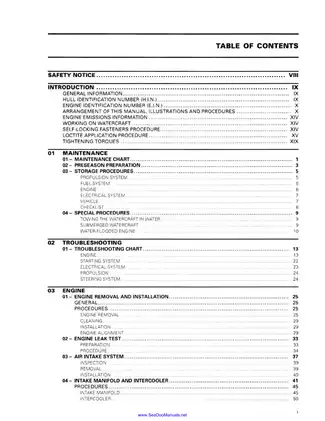

Sea-Doo Manual Features & Selected Content Preview
The BRP 2006 Sea-Doo 4-TEC Shop Manual (P/N 219 100 239, form no. sm/2006-002) covers GTI, GTI SE, GTX, GTX Supercharged, GTX Limited, GTX WAKE, RXP, and RXT.
PDF Search, Page Bookmarks and Wiring Detail
Text navigation and diagram detail: Manual text is not searchable. Embedded bookmarks provide page-by-page jumps rather than named chapter navigation. Small wire-color and pin labels in the main wiring diagram require zooming.
Supplied as one English, printable 403-page PDF, containing 382 service/reference and wiring pages, 19 contents and preliminary pages, and two covers. The service-page count includes a duplicate of printed page 55.
4-TEC Engine, EMS and Jet-Pump Service
The following selected coverage highlights major workshop tasks; additional topics include preseason preparation and storage procedures.
-
Engine repair: Step-by-step removal and installation, engine leak testing, cylinder-head and cylinder-block disassembly, and internal-component inspection.
-

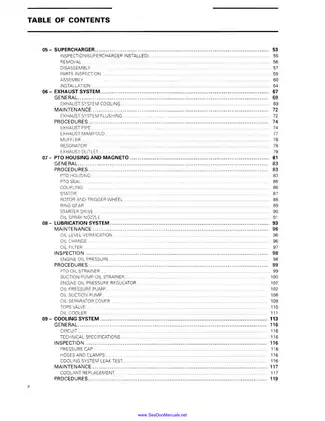

Intake and supercharger: Intake-manifold and intercooler service, supercharger overhaul, clutch slipping-moment checks, and configuration-specific intake and exhaust layouts.
-

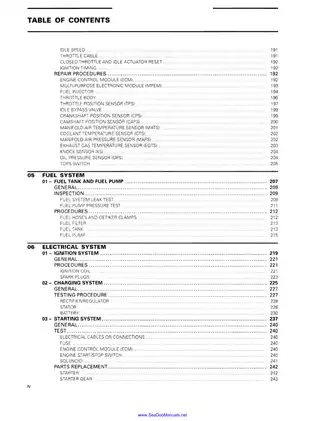

EMS diagnosis: Fault-code troubleshooting, sensor testing, ECM/MPEM replacement procedures, and B.U.D.S. adjustments using MPI and MPI-2 communication interfaces.
-
Fuel system: Tank leak tests, pump-pressure diagnosis, injector checks, and fuel-pump removal and installation, supported by a diagnostic flowchart.
-
Electrical service: Ignition, charging and starting tests; DESS key programming; gauge, sensor and fuse diagnosis; connector repair and wiring diagrams.
-
Jet pump and drive: Pump disassembly, impeller and wear-ring replacement, impeller-shaft bearing inspection, drive-shaft and carbon-ring service, and reverse-system repair.
-
Steering and trim: Steering alignment, Variable Trim System testing, and Off-Power Assisted Steering (O.P.A.S.) inspection and repair.
Written for watercraft mechanical technicians already familiar with BRP service procedures, this manual assumes access to appropriate hand tools and special service equipment.
Engine Repair and Configuration Differences
Model-specific intake, exhaust, fuel and cooling information distinguishes naturally aspirated, non-intercooled supercharged and intercooled supercharged installations. These distinctions help match the test procedures and specifications to the installed engine.

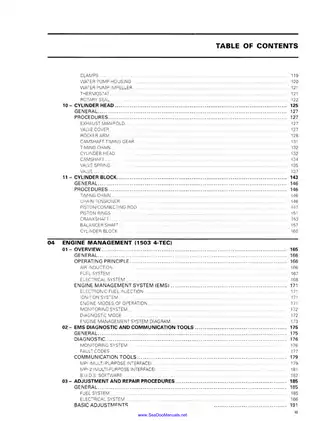

Internal engine work: Valve-train and timing procedures extend through pistons, connecting rods, crankshaft, balancer shaft and cylinder-block inspection. Exploded component views, assembly details and wear limits support overhaul work.
Lubrication and cooling: Procedures cover PTO housing and magneto repair, oil-pressure checks, oil-pump service, coolant replacement, and water-pump and thermostat work. Closed-loop cooling-system views illustrate coolant flow through the engine and ride-plate heat exchanger.
Service tools: References identify the engine alignment shaft and adapter for engine-to-PTO alignment, camshaft locking tool, supercharger gear holder and support plate, and leak-test pump.
B.U.D.S., Sensor Tests and Idle-Control Reset
EMS operating principles and the Engine Management System Diagram explain the relationship between sensor inputs, ECM commands and electrical outputs.
Fault isolation: Tests address throttle position, crankshaft and camshaft position, manifold pressure and temperature, knock sensing, oil-pressure monitoring and TOPS-related faults. The Closed Throttle and Idle Actuator reset is documented for service affecting the TPS, idle bypass valve, throttle body or ECM.
Diagnostic equipment: B.U.D.S. procedures require the diagnostic software, a compatible computer and MPI or MPI-2 hardware. ECM/MPEM replacement instructions address transferring stored information.
The idle-bypass-valve procedure warns that forcing the piston by hand can destroy its screw drive.
Fuel Tests and Electrical References
The Fuel Pump Diagnostic Flow Chart and pressure-loss checks help distinguish pump/check-valve, fuel-rail, injector and regulator faults.
Connector sections cover Deutsch, Packard, AMP and ECM connectors, plus battery and starter-cable terminals. The Ignition System Wiring Diagram and main wiring diagram provide circuit references and wire-color codes.
Jet-Pump Variants, Reverse and Steering
Jet-pump instructions distinguish plastic and aluminum housings and GTI Rental wear-ring requirements. Reverse-system procedures cover the cable, shift lever and reverse gate.
VTS diagnosis separates switch, motor and control-module checks. Steering chapters add cable/nozzle alignment and service procedures for O.P.A.S. vanes and supports.
Hull Repairs and Water-Recovery Procedures
Hull/body sections cover component adjustments, gelcoat surface repairs and fiberglass laminate repair.
Special procedures address towing a watercraft in the water, submerged-watercraft handling, water-flooded engine recovery, contaminated-oil removal and the oil boil-out procedure.
A Preview of Fuel-Pressure and Idle-Valve Test Data
Fuel-pump diagnosis specifies 290–310 kPa (42–45 PSI) for naturally aspirated and non-intercooled supercharged engines, compared with 386–414 kPa (56–60 PSI) for intercooled supercharged engines. These readings apply when the safety lanyard is installed; the same pressures are specified during cranking or running.
For the idle bypass valve, each winding is specified at approximately 50 Ω at 23°C (73°F). The accompanying diagnosis explains why a good resistance reading does not rule out a mechanical valve fault.
Compatibility and safety: Use this description to assess coverage, and follow the manual for procedures, warnings, test conditions, torque specifications and service-tool requirements. Fuel pressure, hot cooling components, rotating propulsion parts and high-current electrical circuits require the model-specific precautions.
